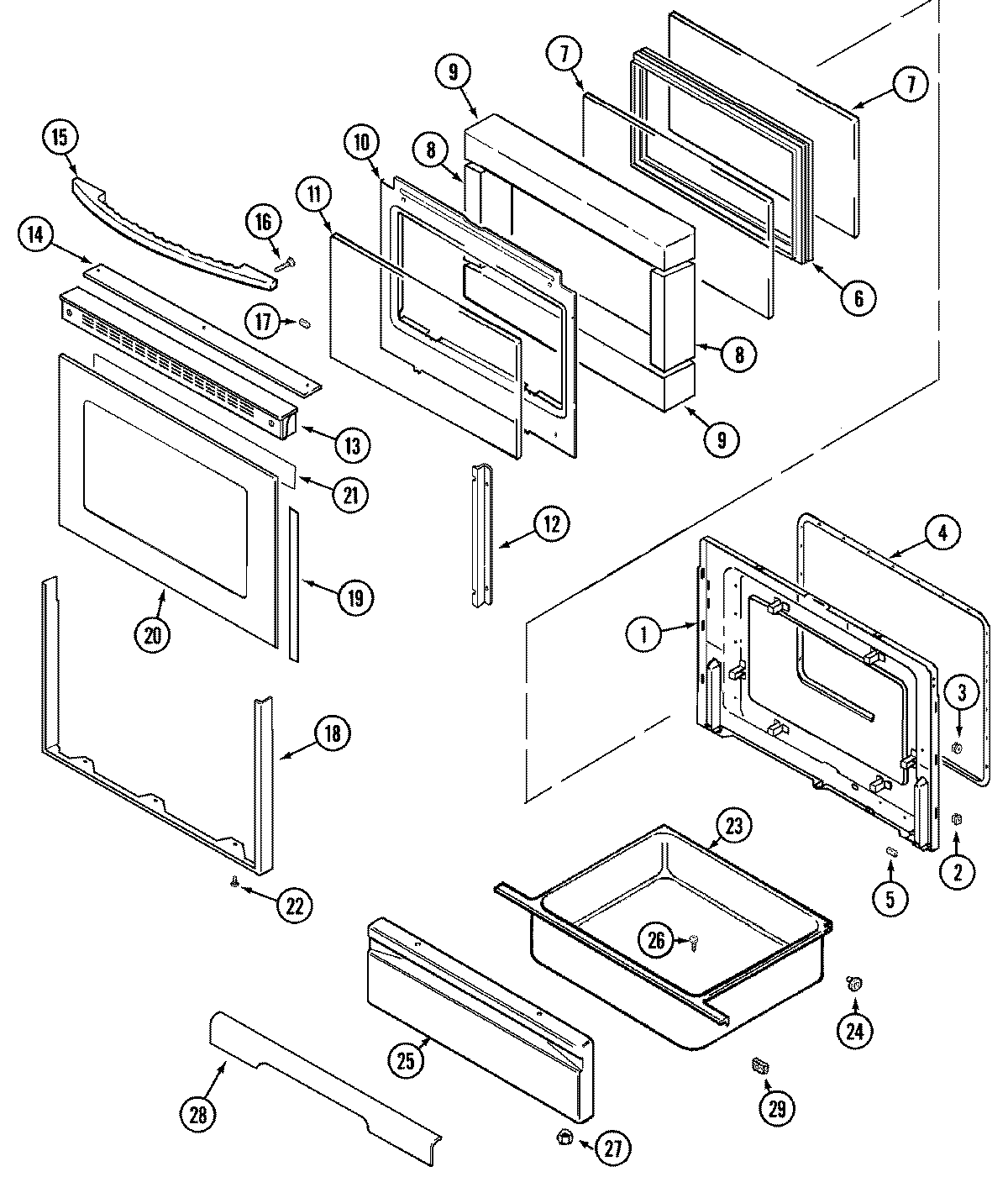

JER8850AAQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74005006
14	MAY 74004978
15	MAY 71003596
16	WP179051 Whirlpool Screw
17	MAY 71002092
18	WP74009541 Whirlpool Screw Assembly
18	MAY 74005162
19	MAY 74003660
20	MAY 71003595
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	MAY 74003618
24	WP488130 Whirlpool Air Conditioner Nut
24	MAY 74003566
25	MAY 71003607
26	WP7101P072-60 Whirlpool Screw
27	WPW10131078 Whirlpool Nut Assembly
28	MAY 71003594
29	MAY 8010P085-60
