JER8850AAQ 05 – TOP ASSEMBLY

JER8850AAQ 05 – TOP ASSEMBLY

Written by

in

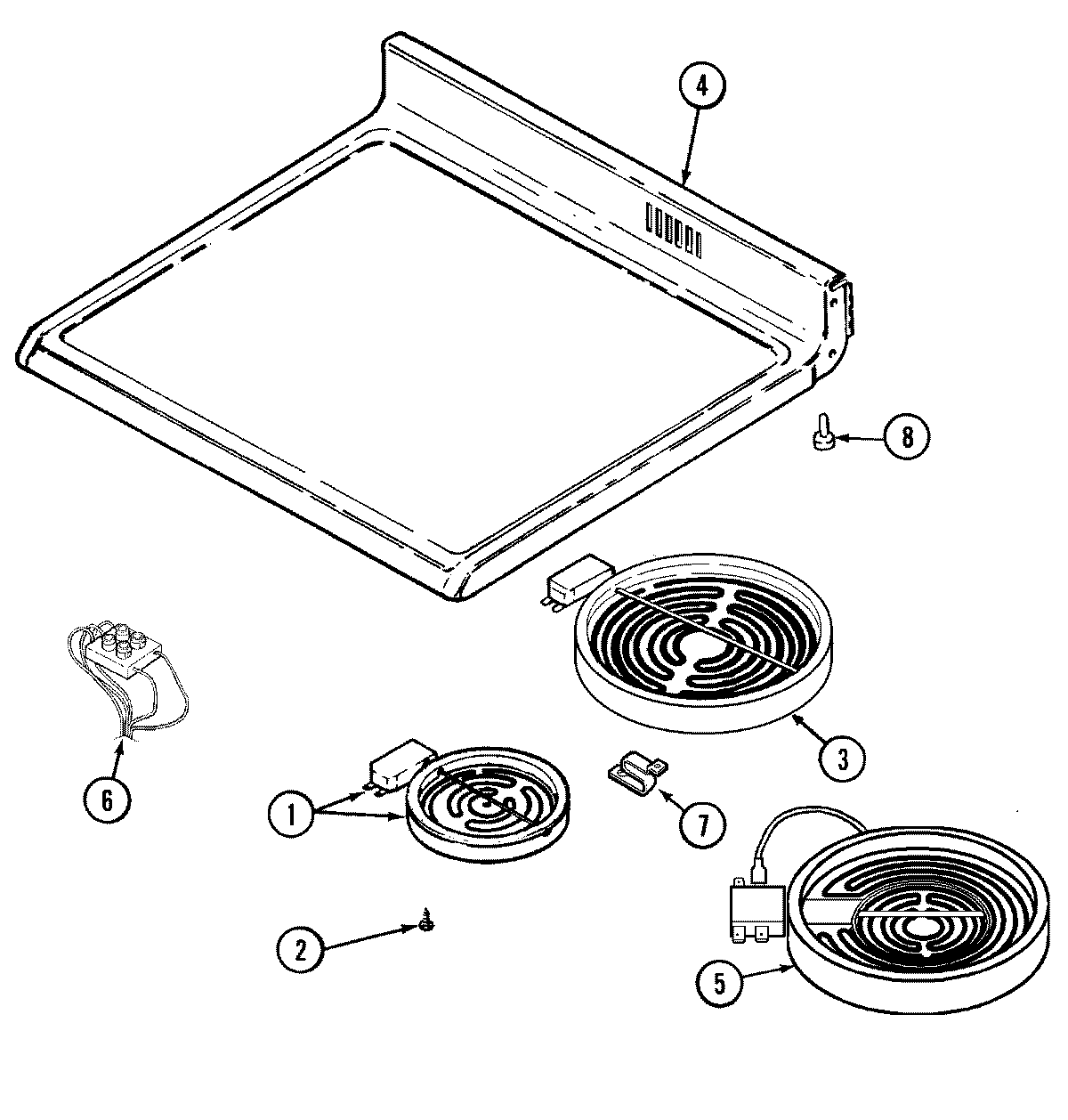

JER8850AAQ 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
2SCREW (6ABX.25-ZN)
3W10823697 Whirlpool Surface Element
3MAY 74004494
4MAY 71003606
5MAY 74002667
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
68004P093-60 Whirlpool Support C
7MAY 74003589
8W11189172 Whirlpool Glide Drawer
