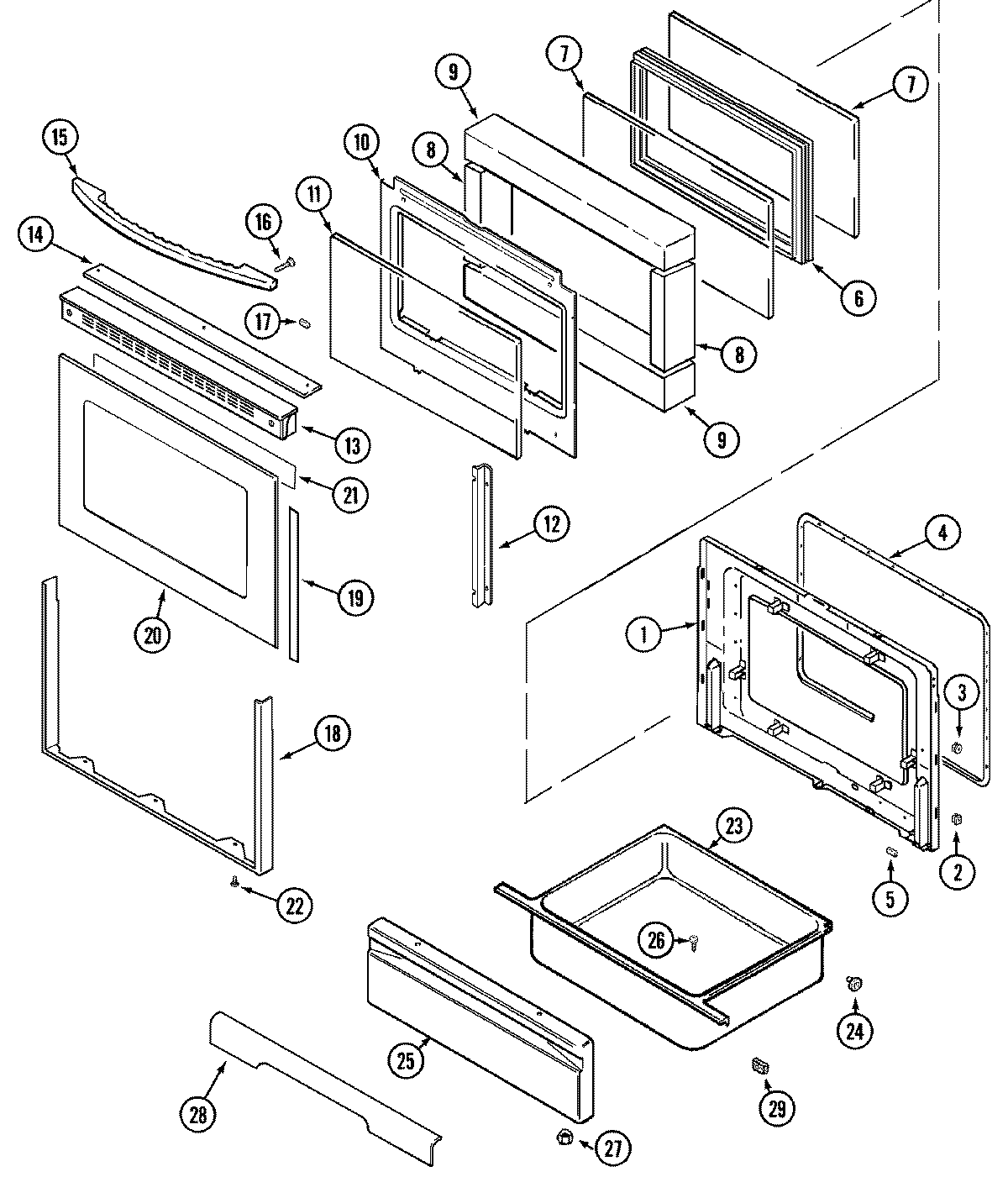

JER8850ACB 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	WP74003652 Whirlpool Door Trim
15	MAY 74003655
16	WP179051 Whirlpool Screw
17	MAY 71002092
18	MAY 74004841
18	WP98008545 Whirlpool Screw
18	MAY 74004324
19	MAY 74003660
20	MAY 74003662
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	MAY 74003618
24	MAY 74003566
24	WP488130 Whirlpool Air Conditioner Nut
25	MAY 74003666
26	WP7101P072-60 Whirlpool Screw
27	WPW10131078 Whirlpool Nut Assembly
28	MAY 74003669
29	MAY 8010P085-60
