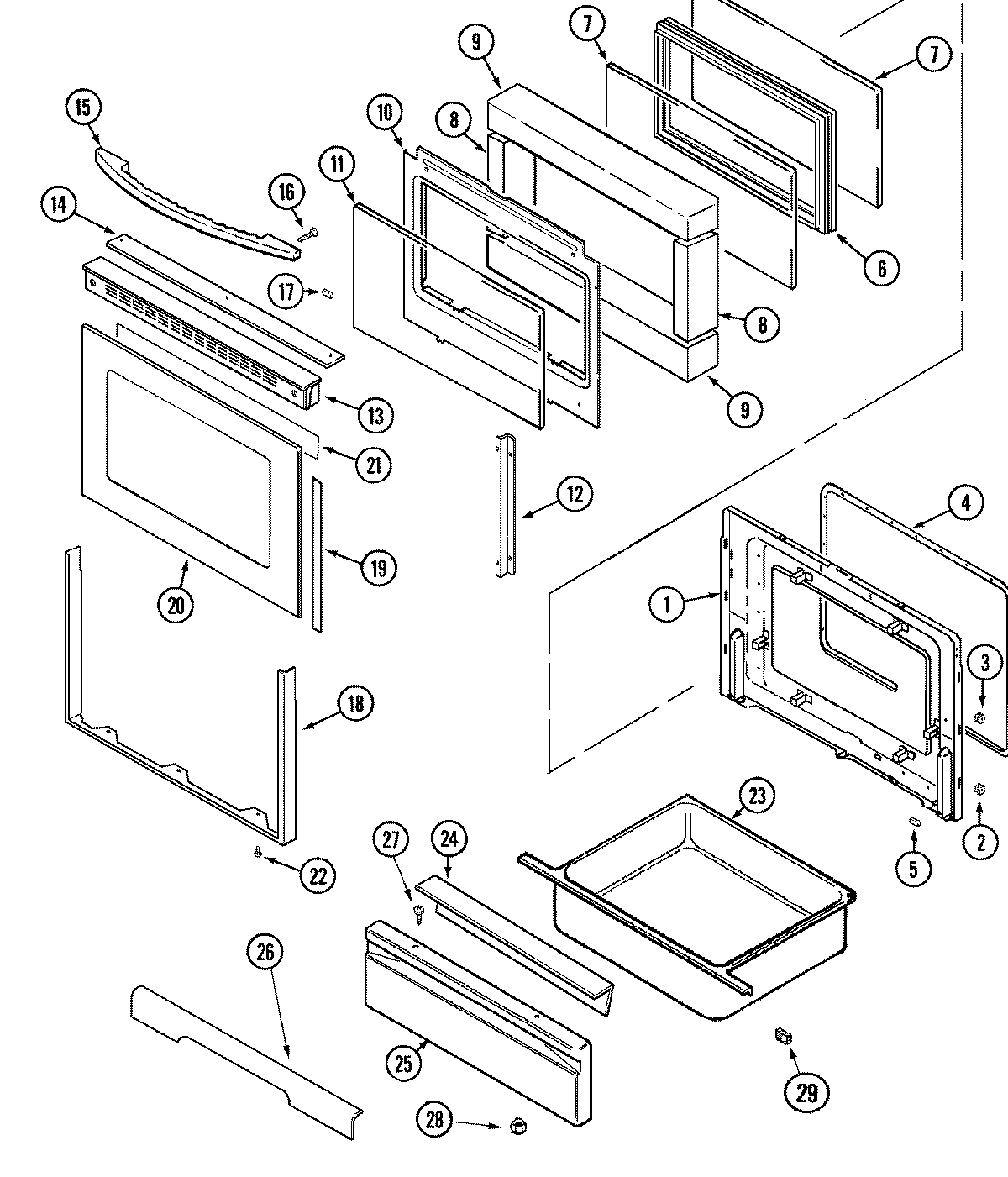

JER8850BAB 03 – DOOR/WARMING DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74003639
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74006402
15	MAY 74006667
16	WP74006515 Whirlpool Washer Screw
17	MAY 71002092
18	MAY 74004324
18	WP98008545 Whirlpool Screw
19	MAY 74003660
20	MAY 74006741
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	MAY 74008334
23	MAY 74006595
23	WP3801F813-51 Whirlpool Bracket
24	MAY 74006593
25	MAY 74006802
26	MAY 74003669
27	WP7101P072-60 Whirlpool Screw
28	WPW10131078 Whirlpool Nut Assembly
29	WP854334 Whirlpool Air Conditioner Sealing Strip
