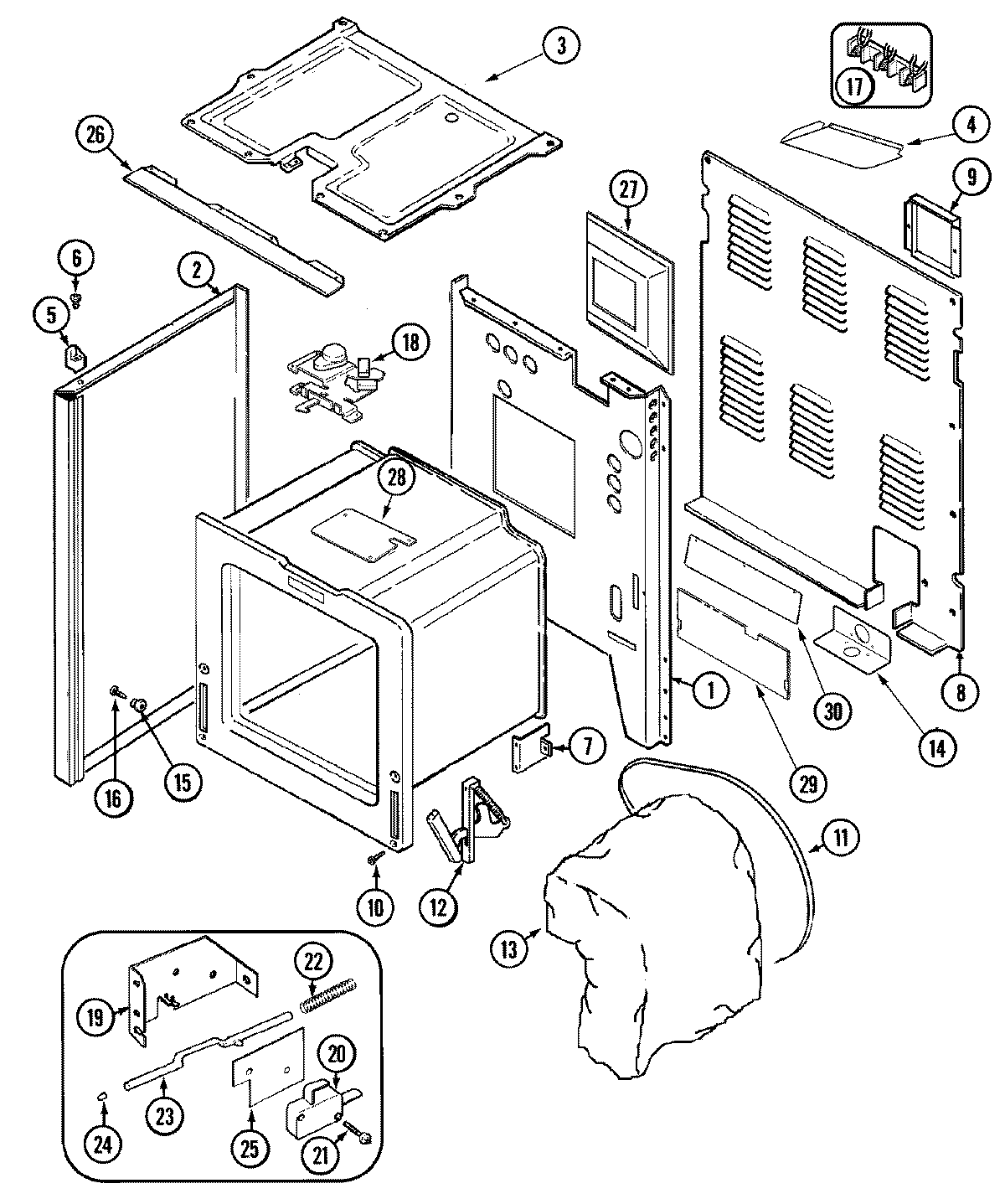

JER8850BAQ 01 – BODY

Products

PositionProduct
1MAY 74006322
1GROMMET
2MAY 74004965
3MAY 74006384
3MAY 74007366
3MAY 74007367
4SCREW (8BX3/8-NI)
4MAY 74006581
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW
7SUPPORT,OVEN REAR
8CLIP, WIRE LOCK
8MAY 74003241
9MAY 4005F427-51
10SCREW (10-24X5/16-NI)
11MAY 74003385
12HINGE-OVEN DOOR
13WP74010942 Whirlpool Insulation
13MAY 74005771
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16MAY 74001449
16W11693756 Whirlpool Screw Assembly
17WPW10245259 Whirlpool Terminal Block
17SCREW (10ABX1.0-ZN)
17WP7103P027-60 Whirlpool Nut
18MAY 74005575
18MAY 74007722
19BRACKET, SWITCH ACTUATOR
19WPY706189 Whirlpool Stove Screw
20MAY 74001802
21MAY 912012
23ROD, DOOR LIGHT SWITCH
24MAY 74001631
25MAY 74001872
26MAY 74003384
27MAY 74005498
28MAY 74005496
28MAY 74006590
28NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
29MAY 74006582
29MAY 74006809
30MAY 74006583
30MAY 74006810
