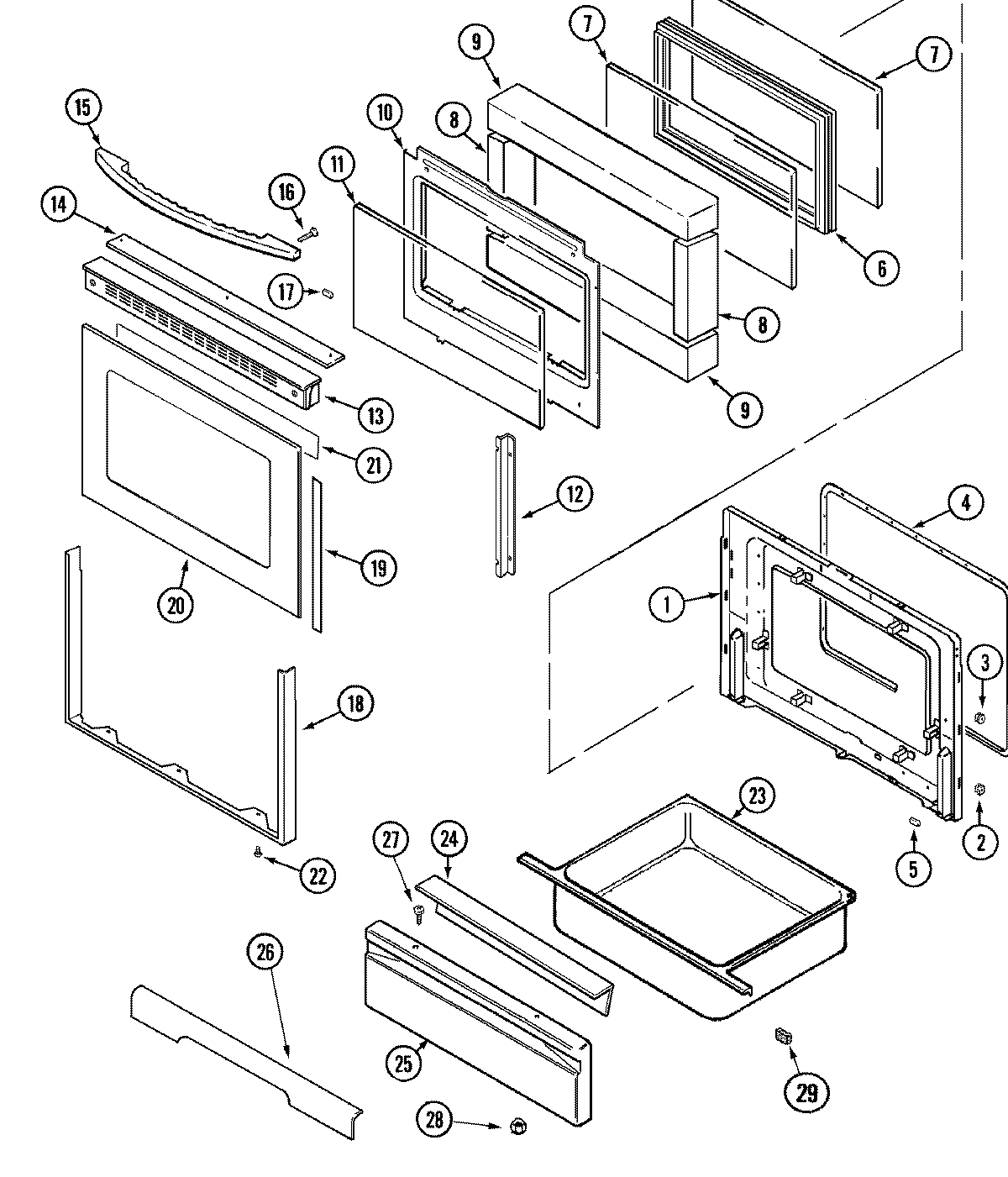

JER8850BAQ 03 – DOOR/WARMING DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74003639
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006403
14MAY 74004978
15MAY 74006666
16WP74006515 Whirlpool Washer Screw
17MAY 71002092
18WP74009541 Whirlpool Screw Assembly
18MAY 74005162
19MAY 74003660
20MAY 74006740
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 74008334
23MAY 74006595
23WP3801F813-51 Whirlpool Bracket
24MAY 74006593
25MAY 74006803
26MAY 71003594
27WP7101P072-60 Whirlpool Screw
28WPW10131078 Whirlpool Nut Assembly
29WP854334 Whirlpool Air Conditioner Sealing Strip
