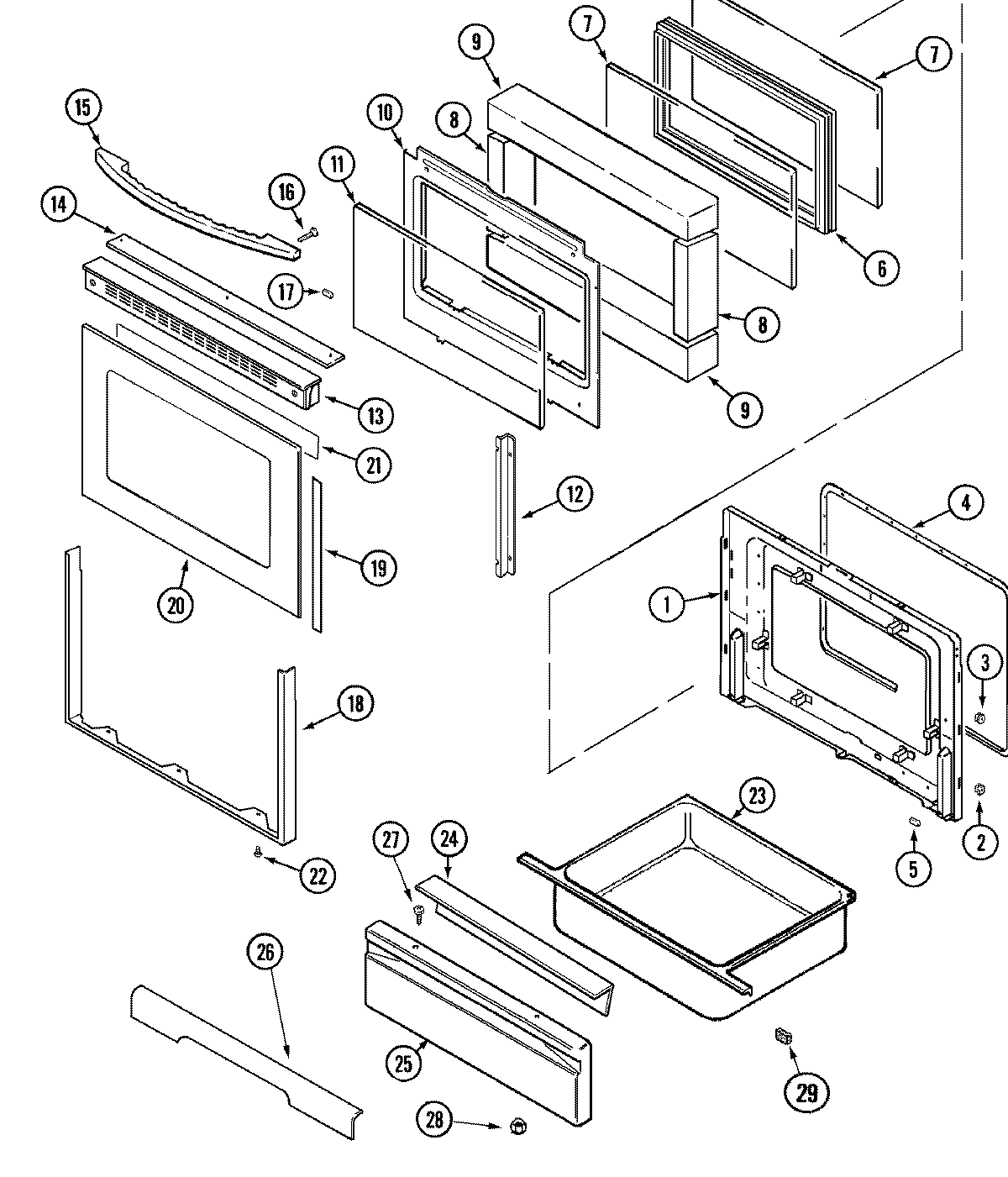

JER8850BAW 03 – DOOR/WARMING DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74003639
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74006401
14	MAY 74001278
14	MAY 7728P094-60
15	MAY 74006668
16	WP74006515 Whirlpool Washer Screw
17	MAY 71002092
18	MAY 74004325
18	WP98008544 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74006739
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	MAY 74006595
23	MAY 74008334
23	WP3801F813-51 Whirlpool Bracket
24	MAY 74006593
25	MAY 74006801
26	MAY 74003670
27	WP7101P072-60 Whirlpool Screw
28	WPW10131078 Whirlpool Nut Assembly
29	WP854334 Whirlpool Air Conditioner Sealing Strip
