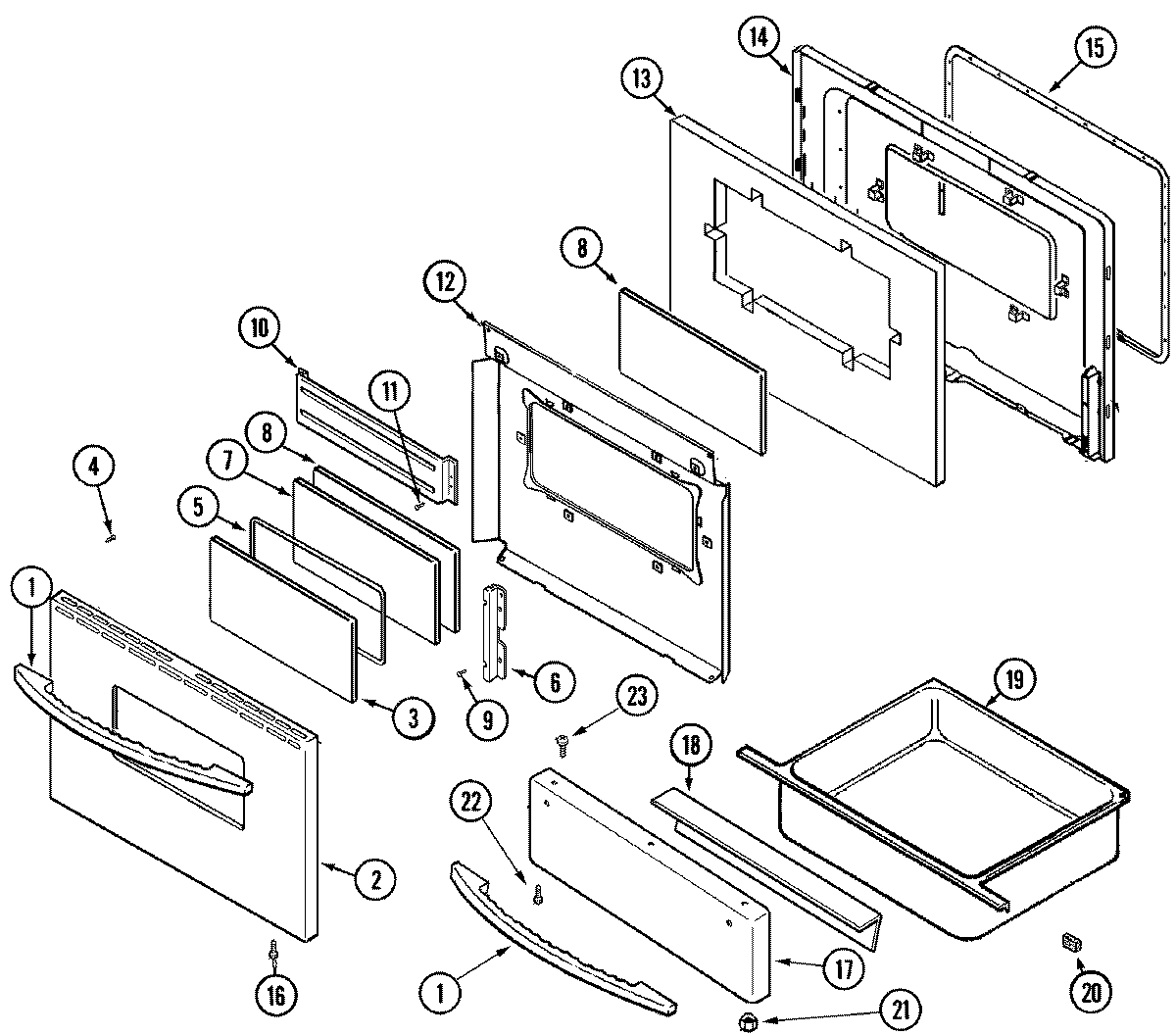

JER8855BAS 03 – DOOR/WARMING DRAWER (STL)

JER8855BAS 03 – DOOR/WARMING DRAWER (STL)

Written by

in

JER8855BAS 03 – DOOR/WARMING DRAWER (STL)

Products

PositionProduct
1MAY 74006704
1MAY 7109P036-60
2MAY 74006580
3MAY 74001072
4MAY 74001521
4WP179051 Whirlpool Screw
5GASKET, WINDOW
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74005458
12MAY 74001843
13MAY 74001842
13MAY 74006596
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16SCREW
17MAY 74006572
18MAY 74006676
19WP3801F813-51 Whirlpool Bracket
19MAY 74006595
19MAY 74008334
20WP854334 Whirlpool Air Conditioner Sealing Strip
21WPW10131078 Whirlpool Nut Assembly
2274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
23MAY 7101P356-60
