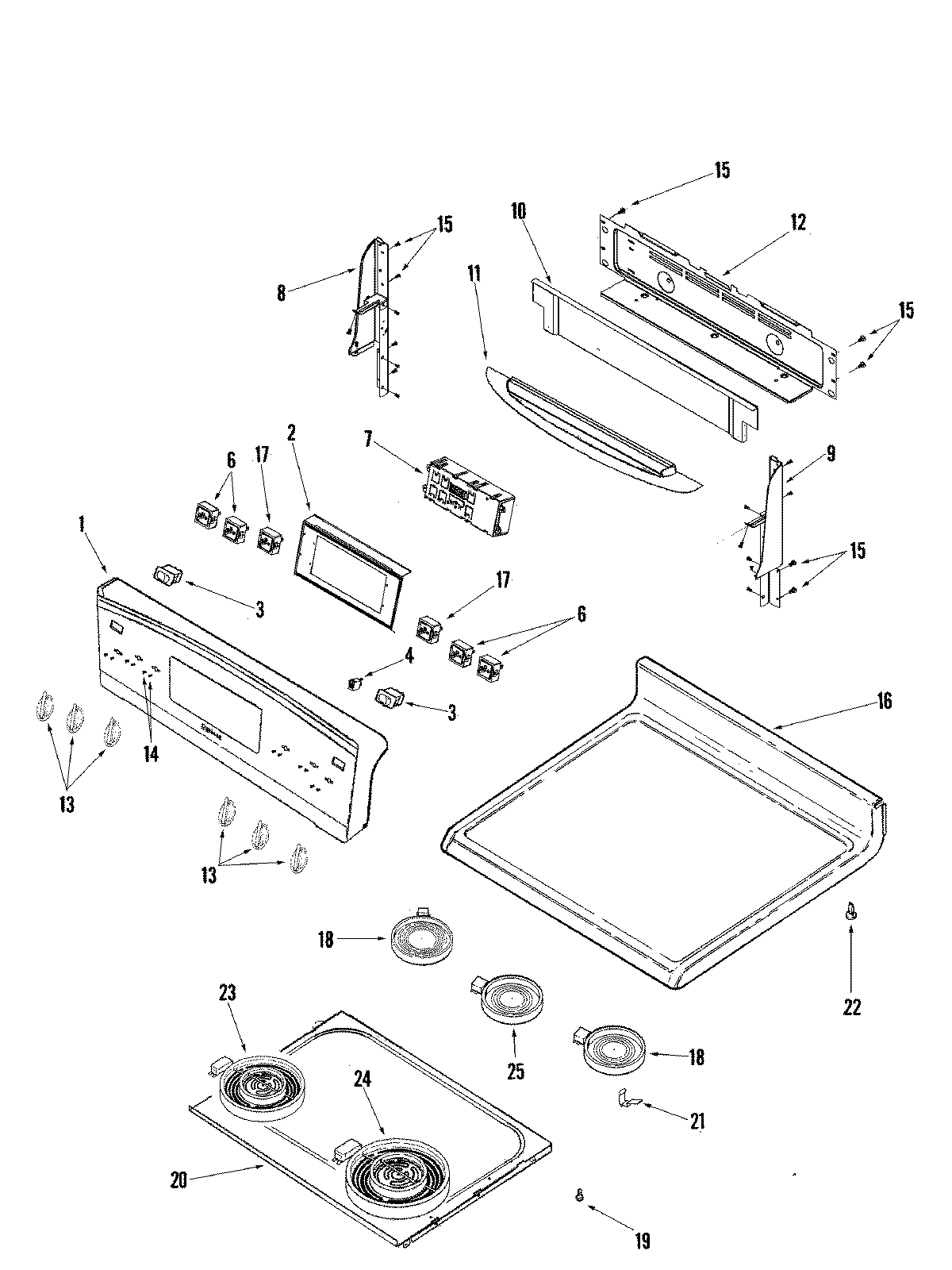

JER8885QAB 03 – CONTROL PANEL/TOP ASSEMBLY

JER8885QAB 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JER8885QAB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008650
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
4WP903115 Whirlpool Dishwasher Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74009166
8End Cap (Right Black)
9End Cap (Left Black)
10MAY 74008725
10MAY 74009205
11MAY 74009202
11MAY 74008891
12MAY 74008836
12MAY 74008730
13WP74008921 Whirlpool Knob
14SCREW
16MAY 74008553
17MAY 74006589
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24W10823713 Whirlpool Surface Element
25MAY 74008898
