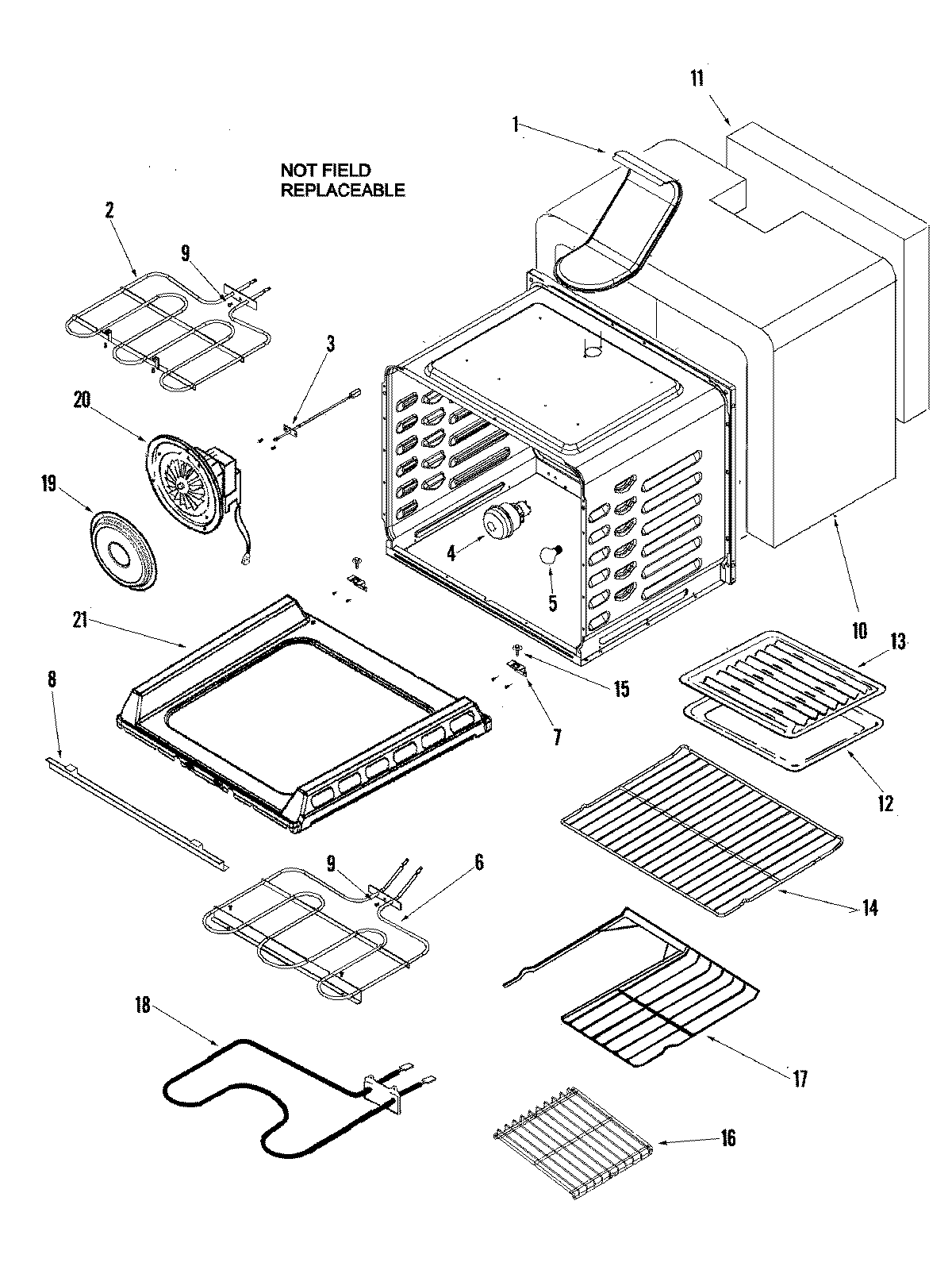

JER8885QAF 02 – CAVITY

JER8885QAF 02 – CAVITY

Written by

in

JER8885QAF 02 – CAVITY

Products

PositionProduct
1MAY 74008691
2WP74008692 Whirlpool Bake Element
312001656 Whirlpool Range Oven Temperature Sensor
4WP74011278 Whirlpool Light
4MAY 71001867
5RANGE ONLY 40W 120V APPL BULB
6WPW10276482 Whirlpool Bake Element
7SUPPORT, OVEN BOTTOM (REAR)
8SUPPORT, OVEN BOTTOM (FRONT)
9SCREW
10INSULATION, WRAPPER
11MAY 74008698
12MAY Y3401F02019
13MAY Y3413F01619
14WP74008763 Whirlpool Oven Rack
15WP74003976 Whirlpool Screw
16INSERT, HALF RACK 30“
17MAY 74008924
18MAY 74008883
18MAY 74006592
18SCREW (8BX3/8-NI)
19COVER, CONVECT
20MAY 74009165
21WPW10211368 Whirlpool Oven Bottom
21MAY 71001394
