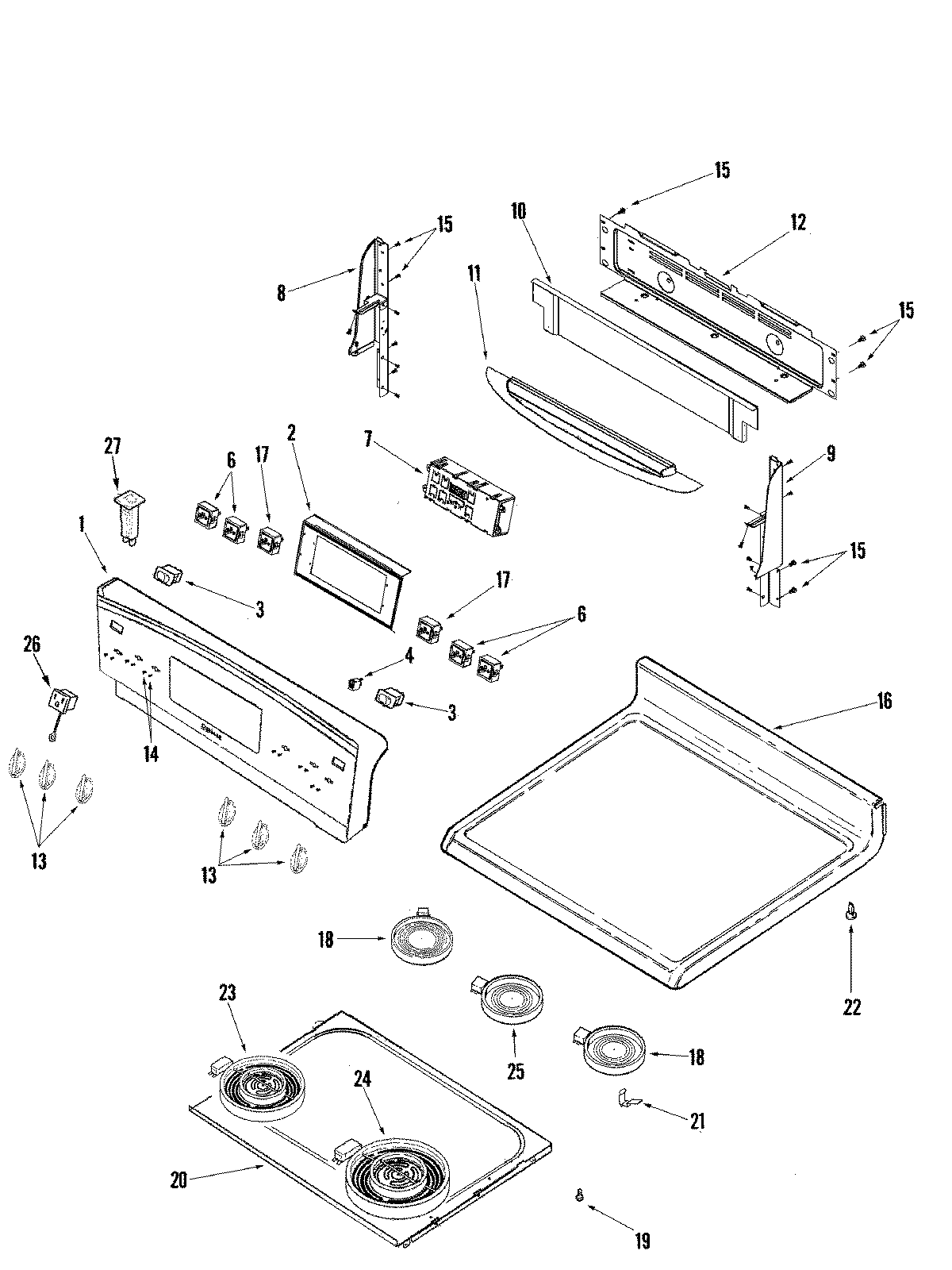

JER8885QCS 03 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
JER8885QCS 03 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74009359
2
MAY 74008716
3
SWITCH, ROCKER (BLK)
4
WP74004153 Whirlpool Indicator Light
4
WP903115 Whirlpool Dishwasher Indicator Light
5
WP7730P011-60 Whirlpool Indicator Lens
6
WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7
MAY 74009166
8
End Cap (Right Black)
9
End Cap (Left Black)
10
MAY 74009205
11
MAY 74009202
12
MAY 74008836
12
MAY 74009332
13
WP74008921 Whirlpool Knob
14
SCREW
16
MAY 74008553
17
MAY 74006589
18
W10823711 Whirlpool Surface Element Left Front and Right Rear
19
SCREW
20
MAY 74008900
21
SPRING, ELEMENT SUPPORT
22
74008761 Whirlpool Spacer Snap-In
23
W10823692 Whirlpool Dual Radiant Element
24
W10823713 Whirlpool Surface Element
25
MAY 74008898
26
MAY 71003068
27
MAY 71003070
←
