JER8885RAF 02 – CAVITY

JER8885RAF 02 – CAVITY

Written by

in

JER8885RAF 02 – CAVITY

Products

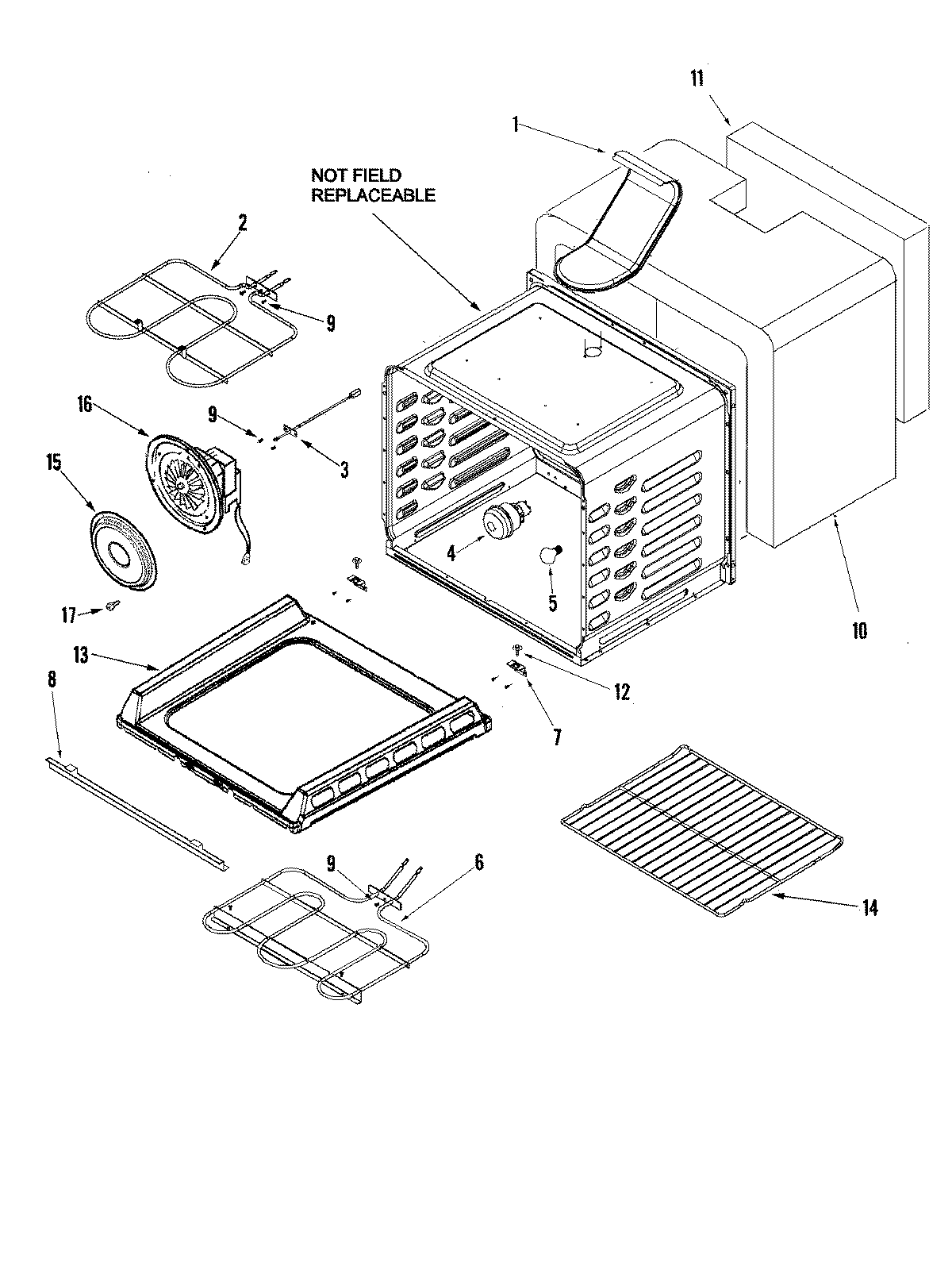

PositionProduct
1MAY 74008691
2MAY 74011910
312001656 Whirlpool Range Oven Temperature Sensor
4MAY 74011299
4WP74011278 Whirlpool Light
5RANGE ONLY 40W 120V APPL BULB
6WPW10276482 Whirlpool Bake Element
7SUPPORT, OVEN BOTTOM (REAR)
8SUPPORT, OVEN BOTTOM (FRONT)
9SCREW
10INSULATION, WRAPPER
11MAY 74008698
12WP74003976 Whirlpool Screw
13WPW10211368 Whirlpool Oven Bottom
14WP74008763 Whirlpool Oven Rack
15COVER, CONVECT
16MAY 74009165
