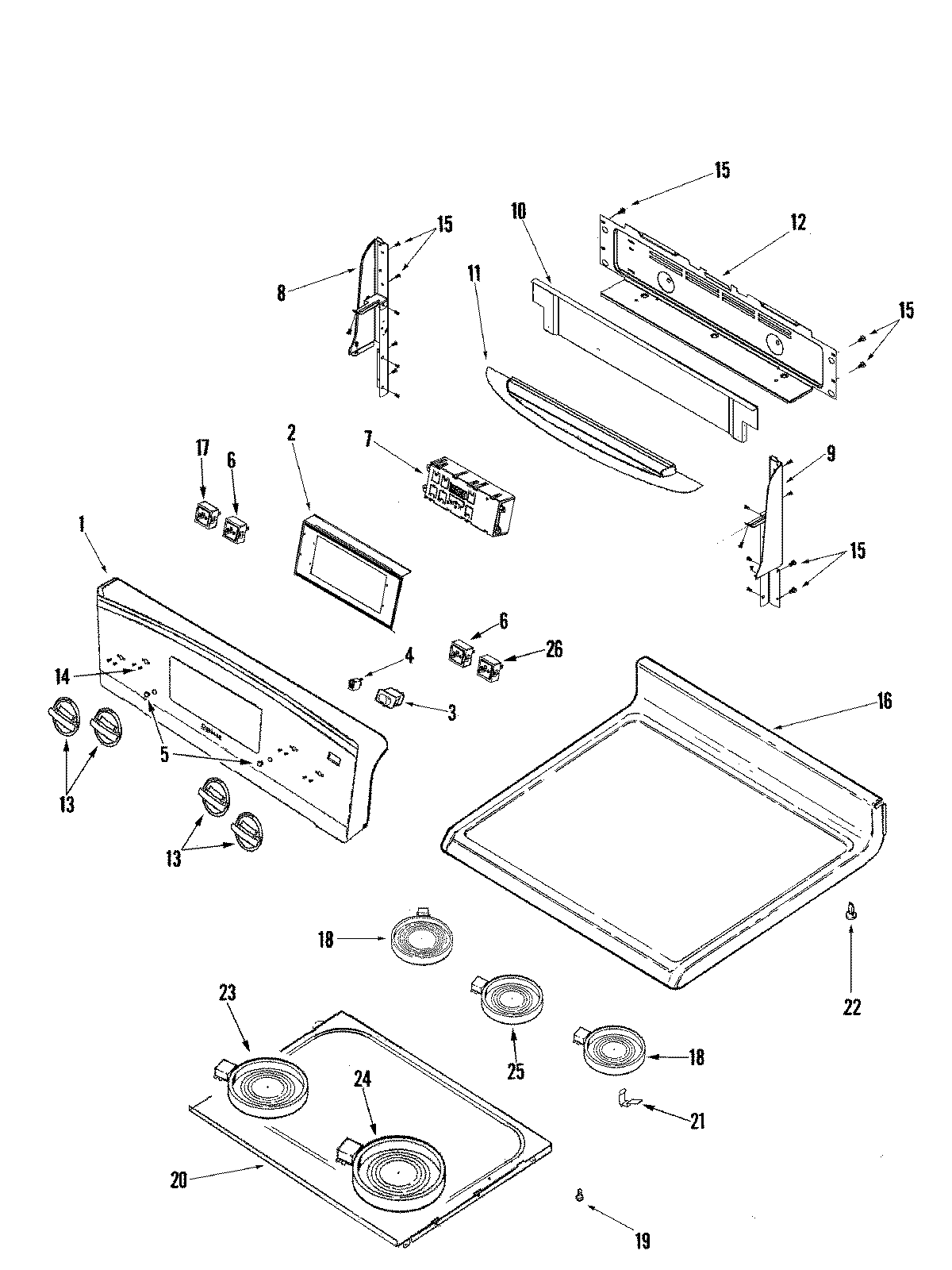

JER8885RAF 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74011975
2	MAY 74011982
3	74008717 Whirlpool White Rocker Switch
4	MAY 7407P100-60
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74011983
7	MAY W10185287
8	End Cap (Right White)
9	End Cap (Left White)
10	MAY 74009444
11	MAY 74009203
12	MAY 74010983
13	WP74008921 Whirlpool Knob
14	SCREW
16	MAY 74011972
17	SWITCH-ELMNT
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	W10823720 Whirlpool Surface Element
25	MAY 74008898
26	MAY 74011595
