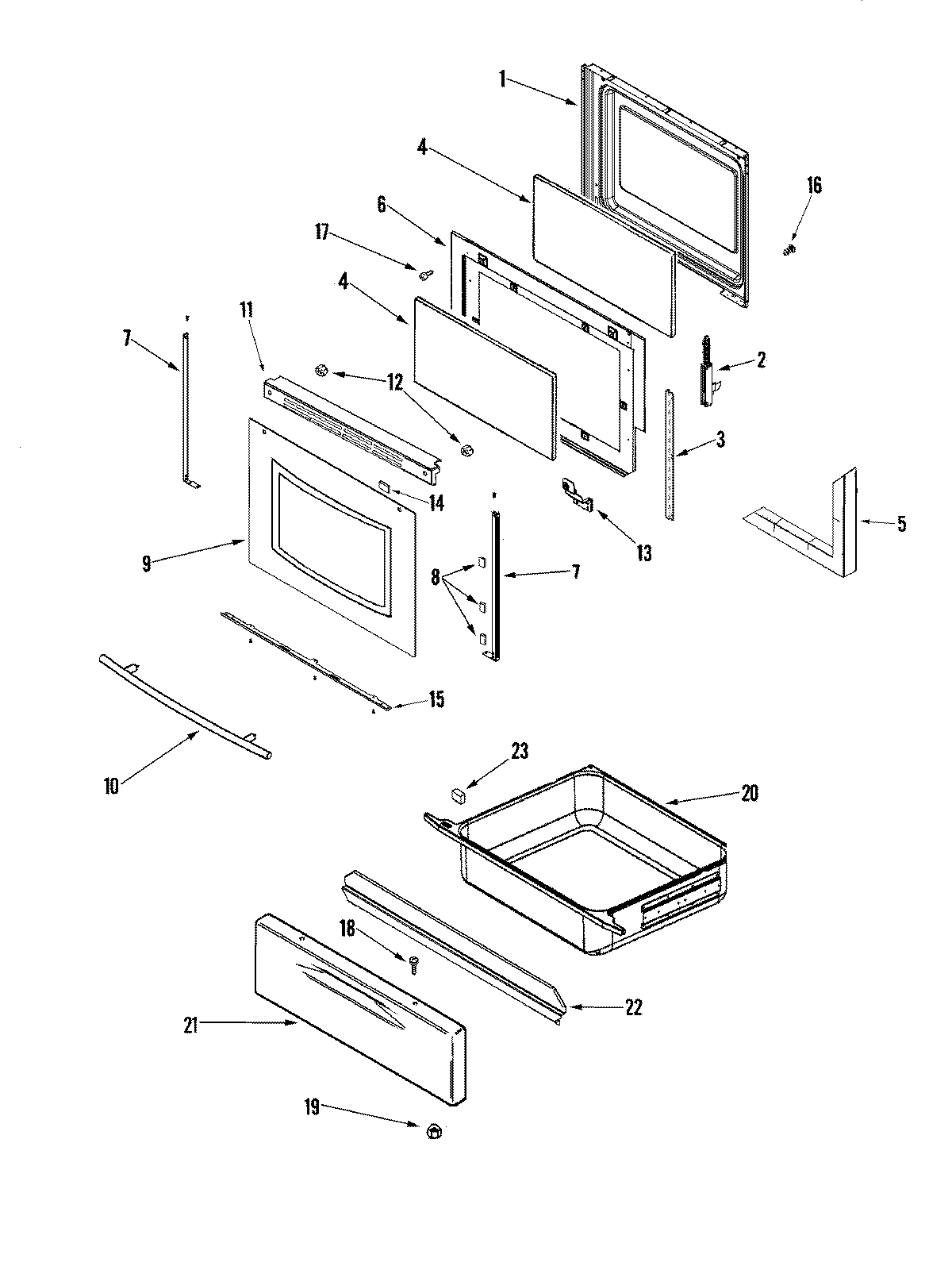

JER8885RAF 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	3801F886-51 Whirlpool Mounting Bracket
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	Retainer, Side
7	MAY 74010561
8	WP74009014 Whirlpool Double Tape
9	GLASS, DOOR (WHT)
10	MAY 74008920
11	WP98008544 Whirlpool Screw Assembly
11	MAY 74008747
12	WP3400029 Whirlpool Dishwasher Nut
13	BRACKET, DOOR HANDLE (RT)
13	BRACKET, DOOR HANDLE (LT)
14	WP74004224 Whirlpool Tape
15	WP3608F092-71 Whirlpool Bottom Trim
16	SCREW (10-24X5/16-NI)
17	SCREW
18	WP7101P072-60 Whirlpool Screw
19	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008339
21	Panel, Drawer (White)
21	MAY W10163040
22	MAY 74009105
23	WP74005546 Whirlpool RU Spacer
