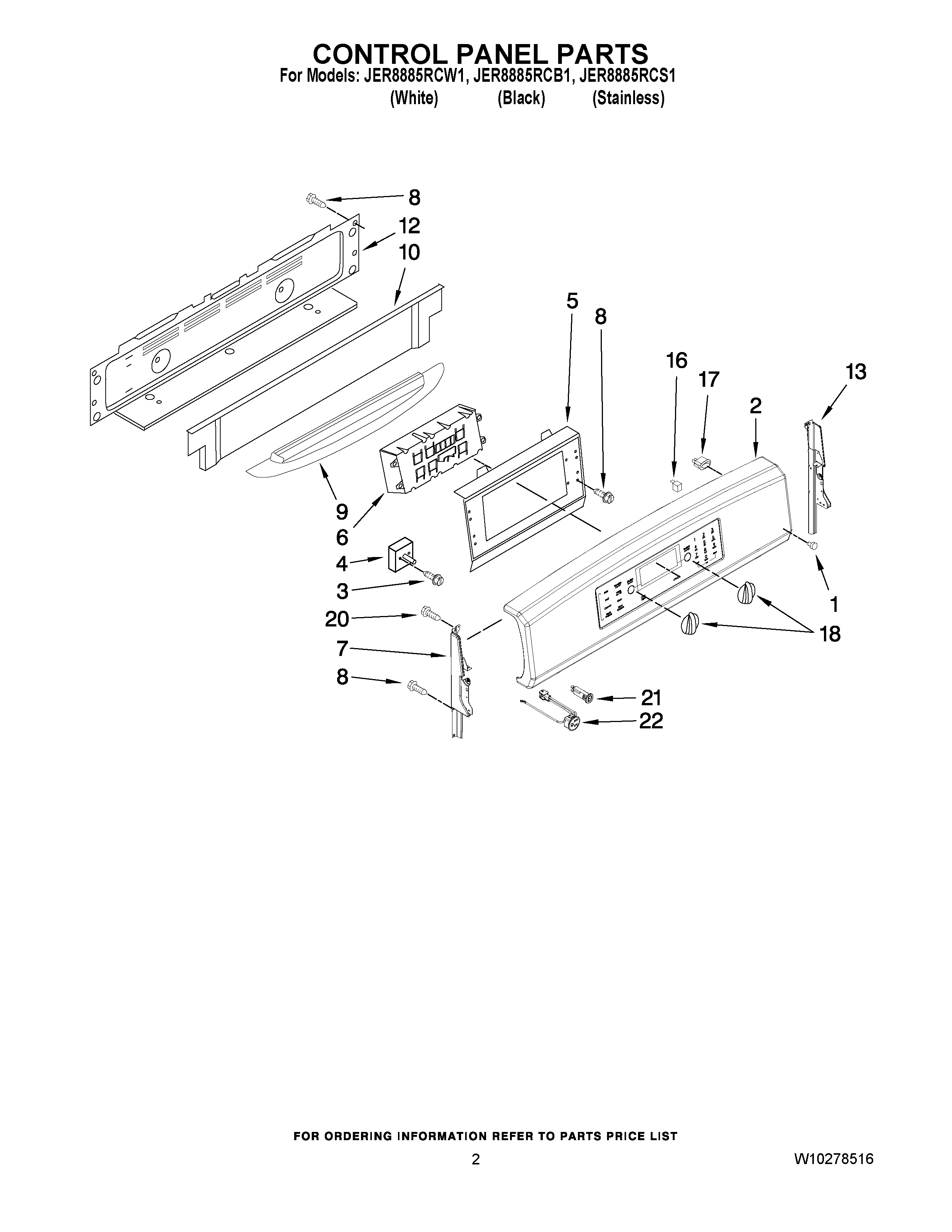

JER8885RCB1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY 3196068
2	SWITCH, INFINTE (8`` (LF) (1))
2	PANEL, CONTROL (WHITE)
2	PANEL, CONTROL (BLACK)
3	SCREW
4	MAY W10185286
4	SWITCH, INFINITE (LEFT FRONT)
4	SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
5	MAY 3801F945-51
6	CONTROL (BLACK)
7	MAY 3807F703-71
8	MAY 4159450
9	MAY 5702M703-70
9	MAY 3604F382-81
10	MAY 3604F381-19
12	MAY 4005F804-51
13	MAY 3807F702-71
13	MAY 3807F702-70
16	MAY 7407P136-60
17	SWITCH, DUAL (WHITE)
17	SWITCH, DUAL (BLACK)
18	MAY 7737P236-60
18	KNOBS (WHITE (4))
20	Screw (White)
20	Screw (Black)
21	MAY 7429P007-60
21	MAY 7429P009-60
22	RECEPTACLE, OUTLET
22	MAY 7408P057-60
