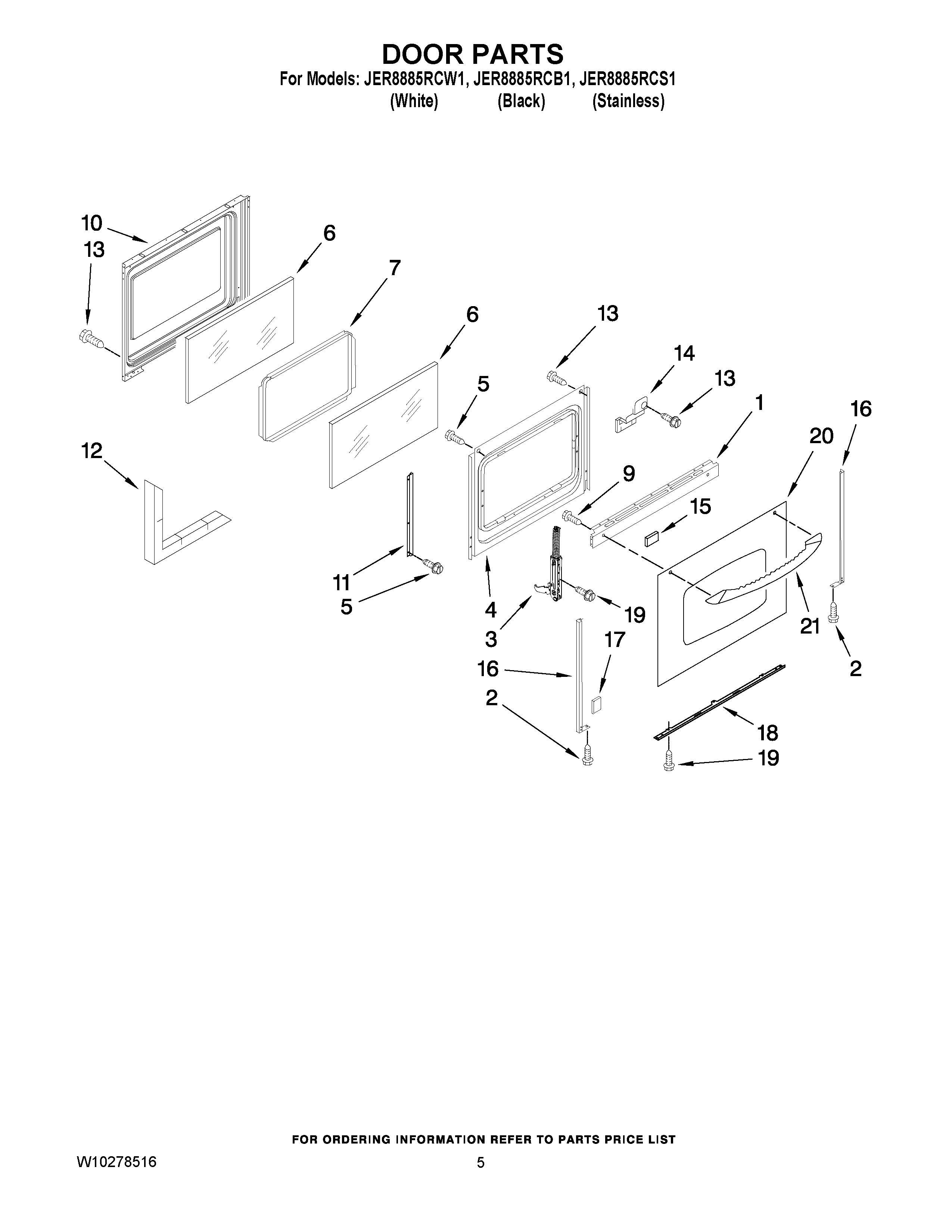

JER8885RCB1 04 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP
1	MAY 3608F139-70
2	Screw (White)
2	Screw (Black)
3	MAY 7106P124-60
4	Retainer, Side
6	Glass, Inner
9	MAY 7101P681-60
10	MAY 2402W297-19
11	BRACKET, INNER GLASS
12	MAY 7002P246-60
13	SCREW
14	MAY 3801P858-45
14	MAY 3801P857-45
15	Tape (White)
16	MAY 3608F126-71
16	MAY 3608F126-70
17	Tape, Double Sided (White)
17	MAY W10208307
18	MAY 3608F092-70
18	MAY 3608F092-71
19	SCREW (10-24X5/16-NI)
20	MAY W10160906
20	GLASS, DOOR (BLACK(ORDER ITEM No.15 WHEN REPLACING DOOR GLASS))
21	MAY 7701P516-60
21	HANDLE, DOOR (STAINLESS)
21	HANDLE, DOOR (WHITE)
