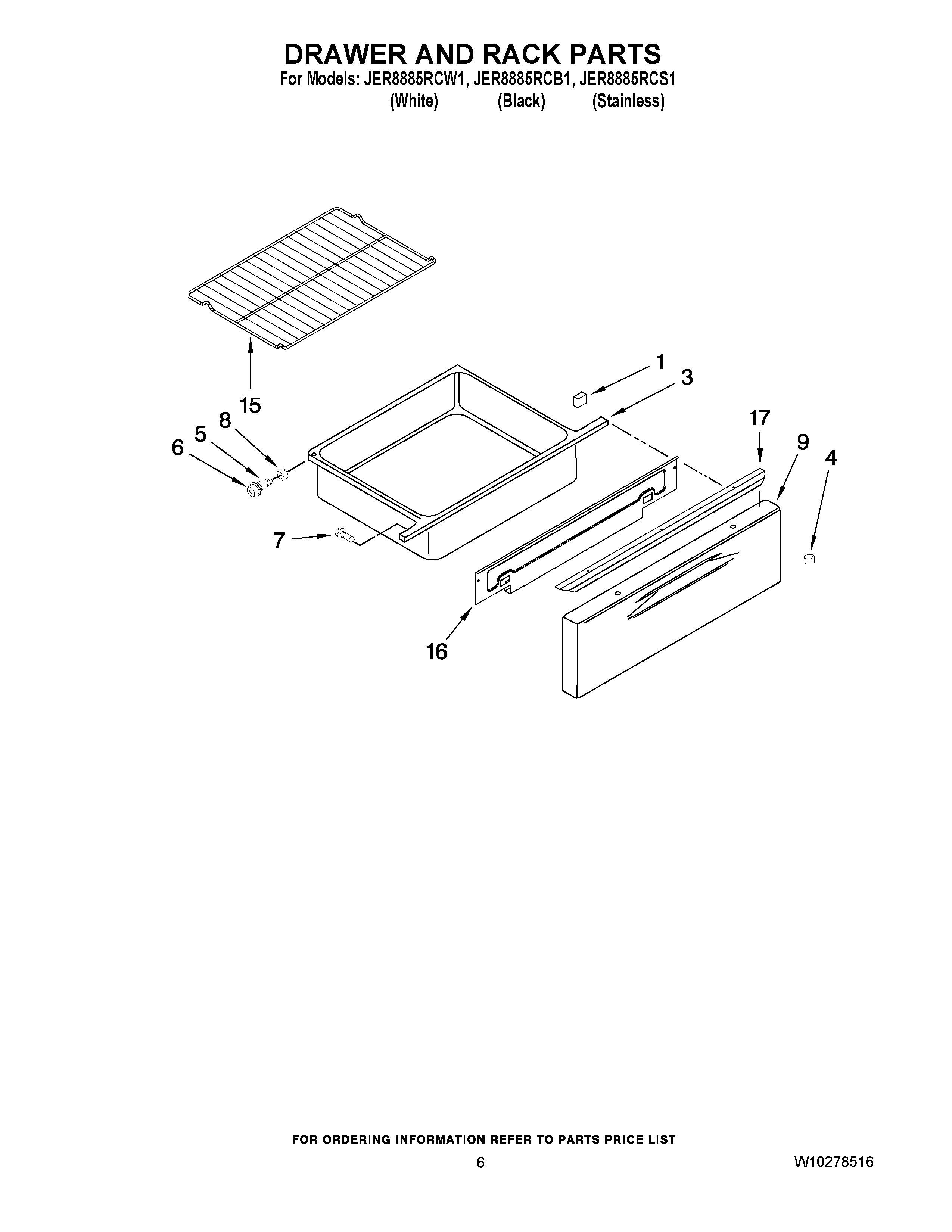

JER8885RCB1 05 – DRAWER AND RACK PARTS

JER8885RCB1 05 – DRAWER AND RACK PARTS

Written by

in

JER8885RCB1 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	Tape, Double Sided (White)
3	LINER (NOT A SERVICEABLE PART)
4	WPW10131078 Whirlpool Nut Assembly
5	MAY 8010P130-60
6	MAY 8016P024-60
7	SCREW
8	MAY 7103P176-60
9	MAY 2419F083-70
9	MAY 2416F083-71
9	PANEL, DRAWER (STL-ELEC)
15	MAY W10179196
16	PLATE, PANEL MTG.
17	HANDLE, DRAWER
