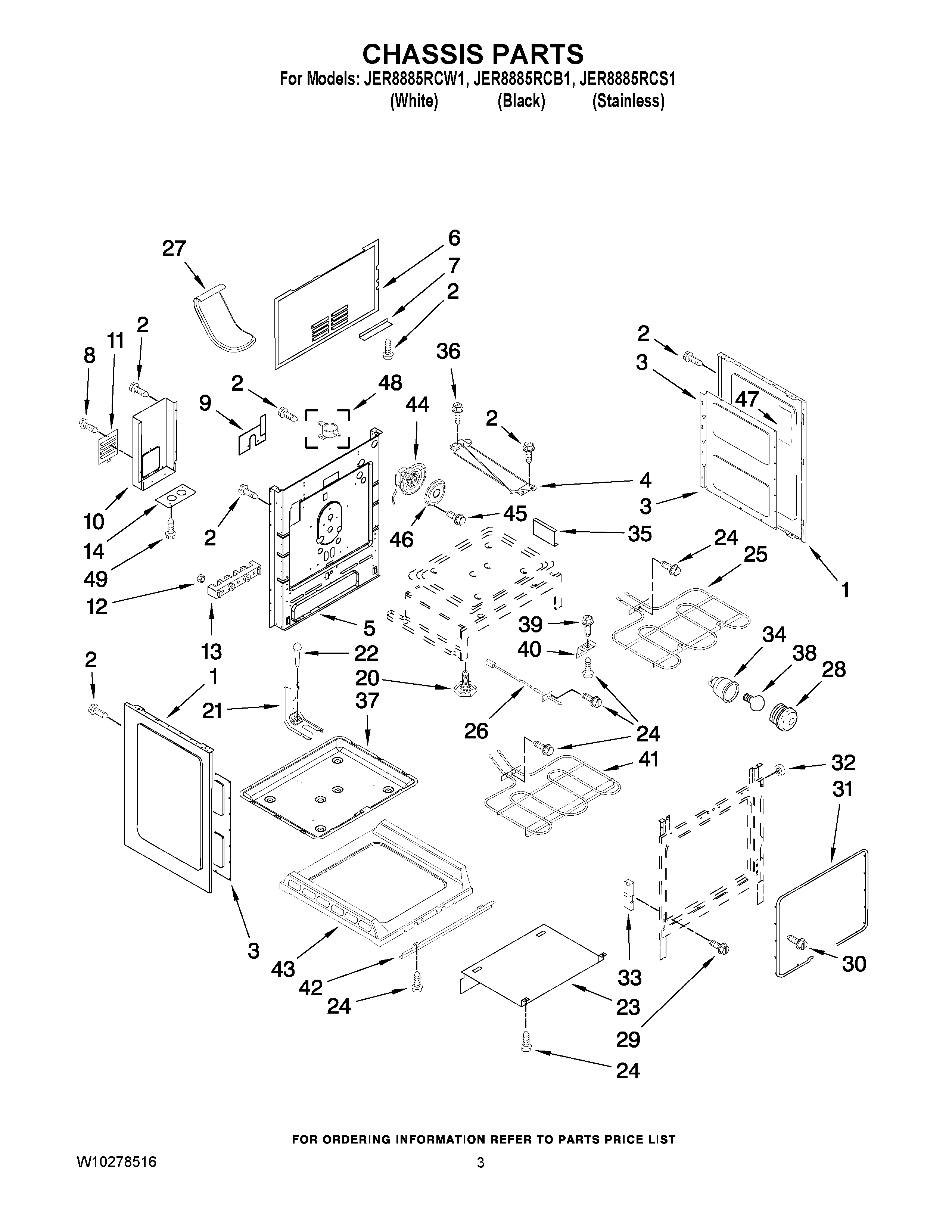

JER8885RCW1 03 – CHASSIS PARTS
Written by
in
JER8885RCW1 03 – CHASSIS PARTS
Products
Position
Product
NI
MAY W10190172
NI
MAY 7022P492-60
NI
MAY 3804F316-51
NI
MAY 7002P362-60
1
MAY 2618F172-58
1
MAY 2618F172-69
2
MAY 4159450
3
Retainer, Side
4
MAY 8002P104-60
5
MAY W10179196
6
MAY 4005F754-51
9
MAY 7003P145-60
10
MAY 4005P703-51
11
MAY 4005P704-51
12
WP7103P027-60 Whirlpool Nut
13
BLOCK, WIRE ADAPTER (3)
14
COVER, REAR
20
Leg, Leveling
23
MAY 3604F396-45
25
MAY 7406P493-60
26
MAY 7430P042-60
27
MAY 8026P081-60
28
SCREW
29
SCREW (10-24X5/16-NI)
31
MAY W10162385
32
MAY 8010P148-60
33
MAY 7106P125-60
35
MAY 3801P798-51
36
Screw (Black) (2)
37
PAN, BAKE
38
MAY 7407P181-60
39
MAY 7101P618-60
40
MAY 3801P822-45
41
MAY 7406P451-60
42
MAY 3807P680-45
43
MAY 2205F053-19
44
Fan Assy. Convect
45
SCREW
46
MAY 3605F305-19
47
MAY 7002P494-60
48
Switch, Thermal
49
SCREW
←
