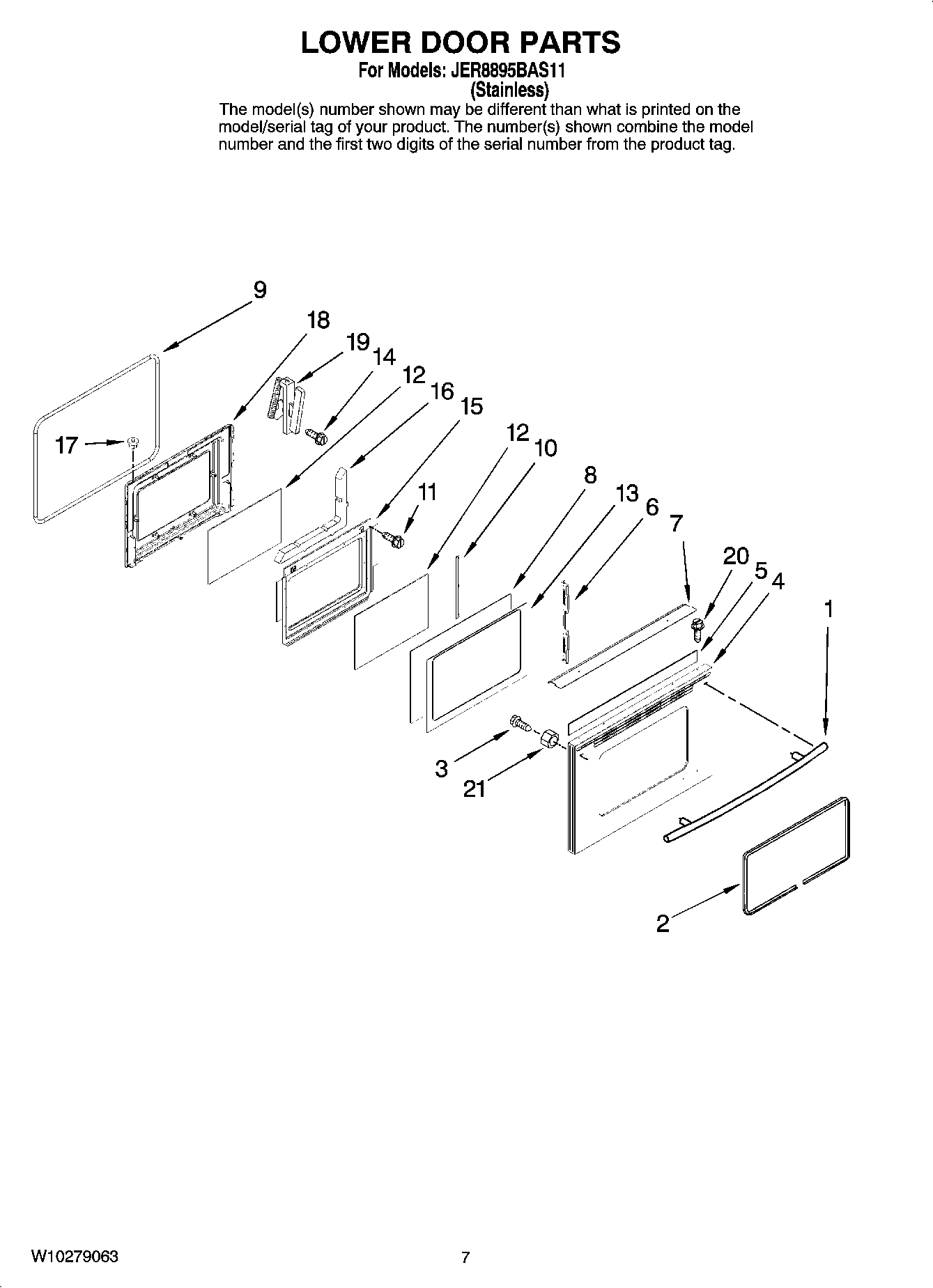

JER8895BAS11 05 – LOWER DOOR PARTS
Written by
in
JER8895BAS11 05 – LOWER DOOR PARTS
Products
Position
Product
1
HANDLE, DOOR (WHITE)
2
MAY 7201P141-60
3
MAY 7101P388-60
4
Panel, Door
5
Insulation, Foil
6
Retainer, Glass Support (2)
7
MAY 3604F441-51
8
Glass, Door
9
MAY W10162384
10
BRACKET, INNER GLASS
11
MAY 7101P376-60
12
Glass, Inner
13
Glass, Door Outer
14
SCREW (10-24X5/16-NI)
15
MAY 3601F373-51
16
MAY 7002P246-60
17
MAY 7103P141-60
18
MAY 2402W312-19
19
MAY 7106P141-60
20
Screw (2) (Black)
21
MAY 3823F017-45
←
