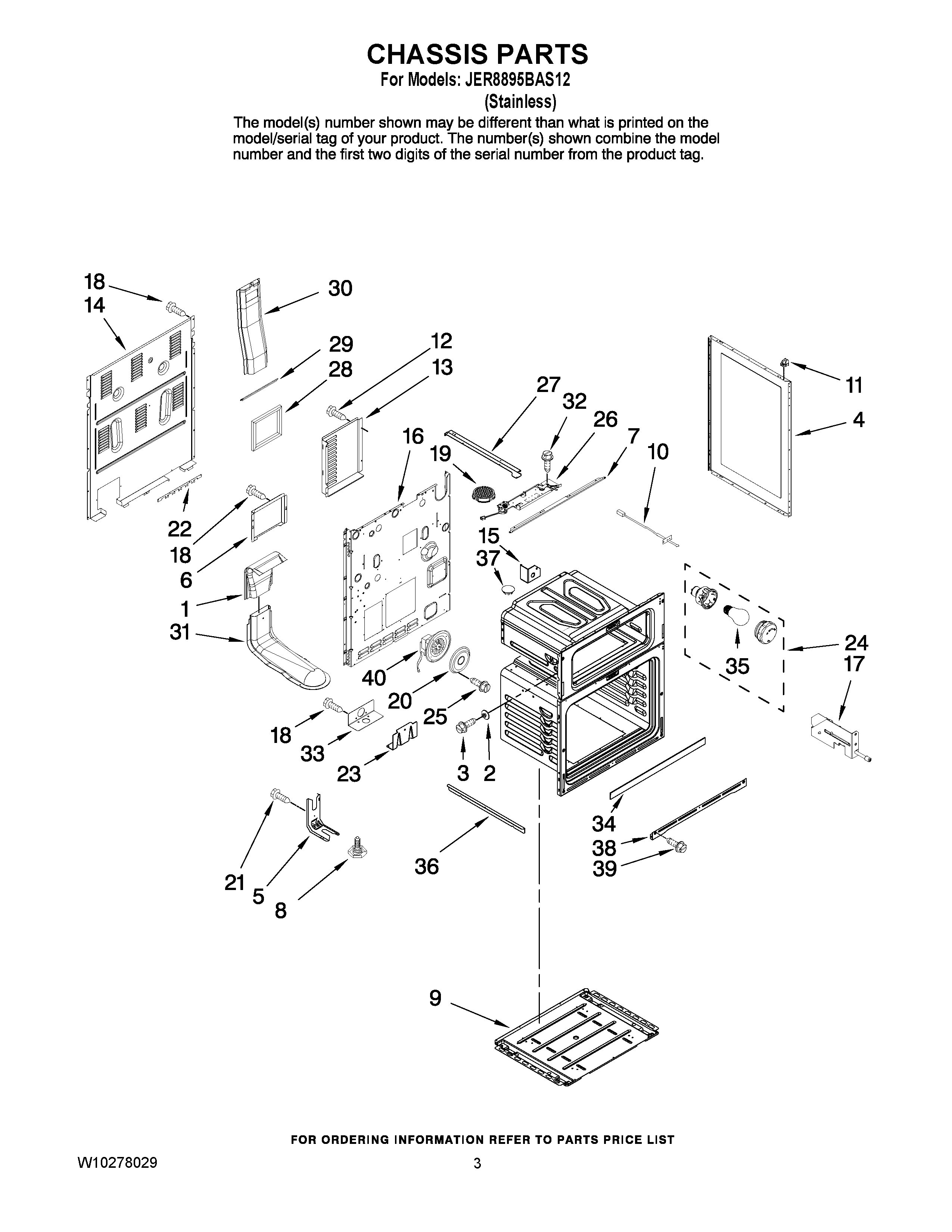

JER8895BAS12 03 – CHASSIS PARTS
Written by
in
JER8895BAS12 03 – CHASSIS PARTS
Products
Position
Product
1
MAY 8026P082-60
2
MAY 8004P024-60
3
MAY 7101P618-60
4
Panel, Side (Black) (2)
5
BRACKET, ANTI-TIP
6
MAY 4005F747-51
7
MAY 3801F924-80
8
Leg, Leveling
9
MAY 4003F070-51
10
SENSOR, OVEN
10
MAY 7430P042-60
11
SPACER, MAIN TOP (LT)
11
SPACER, MAIN TOP (RT)
12
MAY 7101P388-60
13
MAY 4005F592-51
14
MAY W10167412
15
MAY 3801F705-51
15
MAY 3801F706-51
16
MAY 4002F332-51
17
MAY 7450P108-60
18
MAY 7101P376-60
19
SCREEN, SMOKE ELM.
20
MAY 3605F305-19
21
SCREW, ANTI-TIP KIT
22
SHIELD, POWER CORD
23
MAY 3807F580-51
24
MAY 7407P181-60
25
MAY 7101P385-60
26
MAY 8002P077-60
27
MAY 4011F525-51
27
MAY 4011F524-51
28
MAY 7201P089-60
29
MAY 3604F335-51
30
MAY 4022W017-45
31
MAY 4006W139-45
31
MAY 4006W129-45
32
Screw (Black) (2)
33
BRACKET, POWER SUPPLY
34
MAY 7212P066-60
35
RANGE ONLY 40W 120V APPL BULB
36
MAY 3823F015-51
37
MAY 7718P030-60
38
TRIM, KICKPLATE (BLACK)
39
Screw (2) (Black)
40
MAY 7002P434-60
40
MAY 7002P490-60
40
Insulation, Back (Lower Oven)
40
Fan Assy, Convect
←
