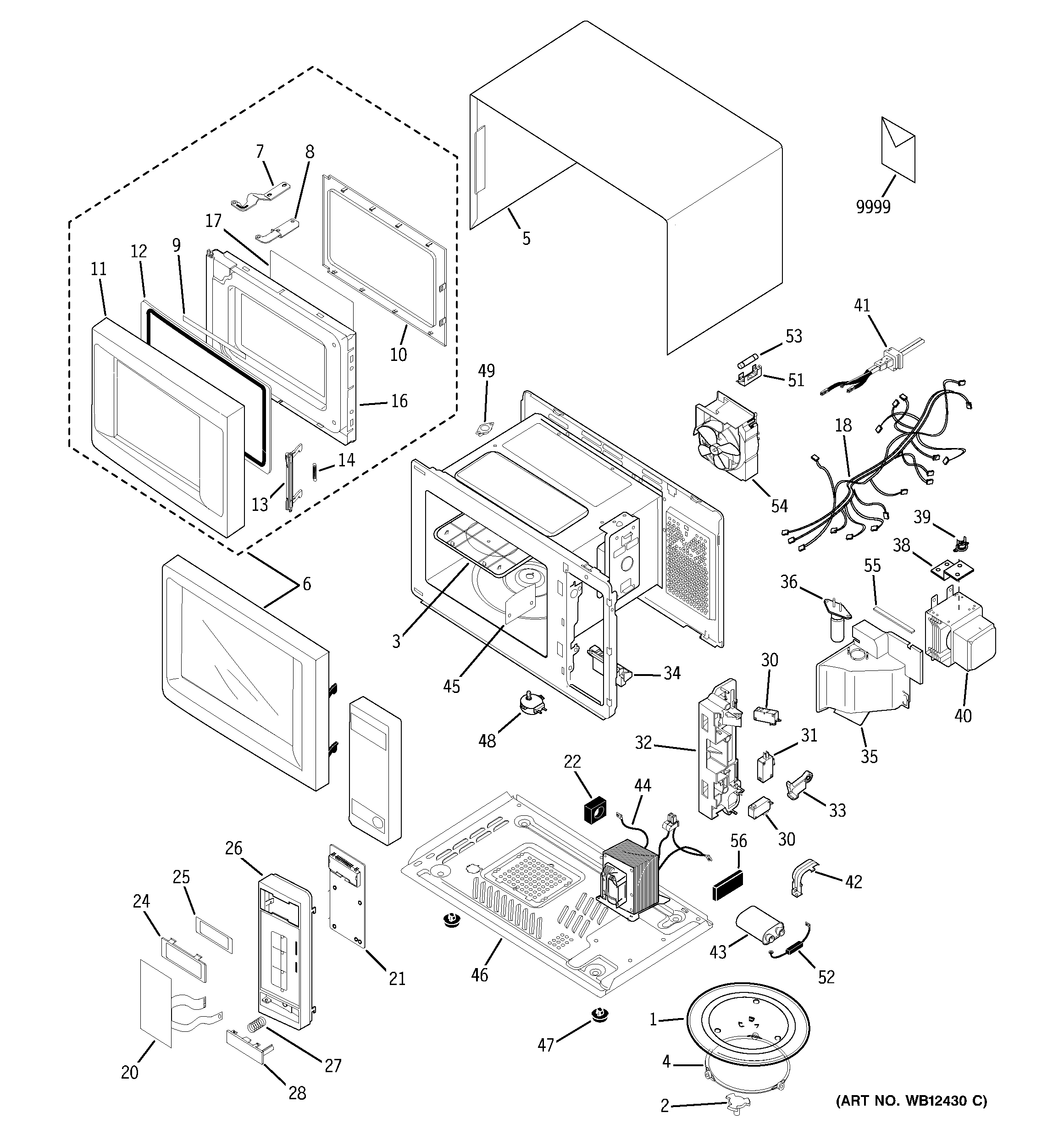

JES1131GB002 MICROWAVE

Products

Position	Product
1	COOKING TRAY – GLASS
2	WB06X10059 GE Oven Coupler
3	GEN WB06X10192
4	GEN WB06X10001
5	PANEL – OUTER
6	ASSY DOOR
7	GEN WB14X10006
8	GEN WB14X10007
9	GEN WB06X10062
10	CHOKE COVER
11	FRAME-OUTER DOOR
12	GEN WB55X10197
13	KEY DOOR
14	LATCH SPRING
16	ASSY DOOR-E
17	GEN WB06X10056
18	GEN WB18X10186
20	GEN WB27X10595
21	GEN WB27X10596
22	CUSHION-HVT
24	WINDOW-DISPLAY
25	CRYSTAL
26	GEN WB07X10210
27	GEN WB09X0308
28	GEN WB03X10050
30	WB24X829 GE Oven Microwave Secondary Micro Switch
31	SWITCH
32	LATCH – BODY
33	SWITCH – LEVER
34	WB06X10186 GE Oven Door Lever
35	GEN WB38X10013
36	GEN WB36X10212
38	GEN WB02X10821
39	WB20X10003 GE Microwave Thermostat
40	WB27X10516 GE Oven Magnetron Assembly
41	POWER CORD
42	CAPACITOR BRACKET
43	CAPACITOR 0.95 UF
44	GEN WB27X10287
45	GEN WB06X10413
46	GEN WB56X10057
47	GEN WB06X0540
48	WB26X10024 GE Oven Motor T/T
49	GEN WB27X10075
51	GEN WB06X10050
52	WB27X10597 GE Oven Diode
53	WB27X10928 GE Oven Line Fuse
54	FAN MOTOR ASS'Y
55	CUSHION GUIDE
56	CUSHION LAMP
9999	GEN 31-20929
9999	USER MANUAL
