JES1131WC002 MICROWAVE

Products

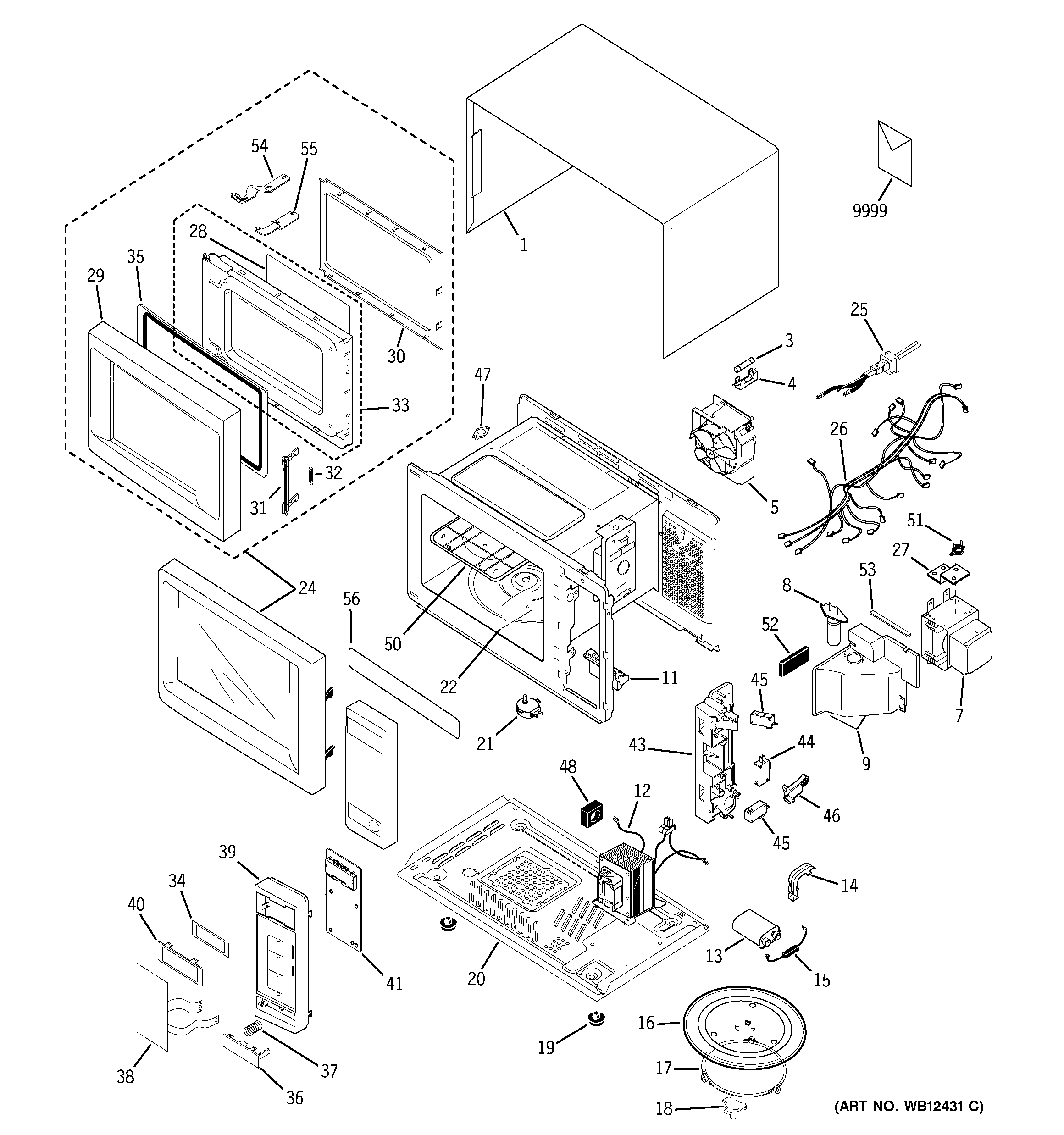

Position	Product
1	OUTER PANEL – WHITE
3	WB27X10928 GE Oven Line Fuse
4	GEN WB06X10050
5	FAN MOTOR ASS'Y
7	WB27X10516 GE Oven Magnetron Assembly
8	GEN WB36X10212
9	GEN WB38X10013
11	WB06X10186 GE Oven Door Lever
12	GEN WB27X10287
13	CAPACITOR-H.V
14	CAPACITOR BRACKET
15	WB27X10597 GE Oven Diode
16	COOKING TRAY – GLASS
17	GEN WB06X10001
18	WB06X10059 GE Oven Coupler
19	GEN WB06X0540
20	GEN WB56X10057
21	WB26X10024 GE Oven Motor T/T
22	GEN WB06X10413
24	ASSEMBLY, DOOR
25	POWER CORD
26	GEN WB18X10186
27	GEN WB02X10821
28	GEN WB06X10056
29	FRAME,OUTER DOOR
30	CHOKE COVER
31	GEN WB06X10057
32	LATCH SPRING
33	GEN WB55X10044
34	CRYSTAL
35	GEN WB55X10045
36	GEN WB03X10046
37	GEN WB09X0308
38	GEN WB27X10598
39	GEN WB07X10166
40	WINDOW-DISPLAY
41	GEN WB27X10596
43	LATCH – BODY
44	SWITCH
45	WB24X829 GE Oven Microwave Secondary Micro Switch
46	SWITCH – LEVER
47	GEN WB27X10075
48	CUSHION-HVT
50	GEN WB06X10192
51	WB20X10003 GE Microwave Thermostat
52	CUSHION LAMP
53	GEN WB06X10380
54	GEN WB14X10006
55	GEN WB14X10007
56	GEN 49-40245
9999	GEN 31-20929
9999	USER MANUAL
