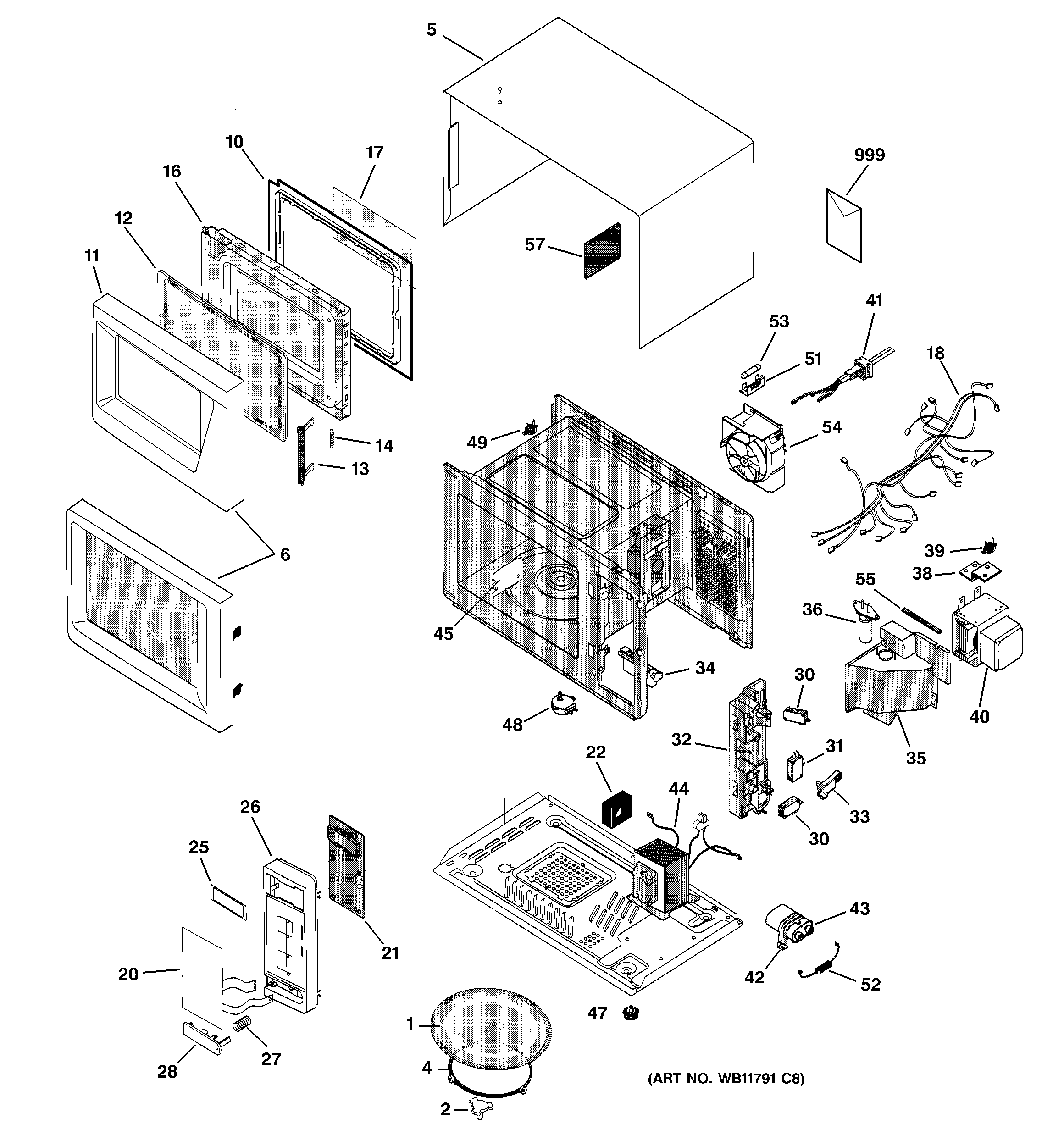

JES1231WC001 MICROWAVE

Products

Position	Product
1	COOKING TRAY – GLASS
2	WB06X10059 GE Oven Coupler
4	GEN WB06X10001
5	OUTER PANEL – WHITE
6	GEN WB55X10332
10	CHOKE COVER
11	GEN WB55X10329
12	GEN WB55X10333
13	LATCH – WHITE
14	LATCH SPRING
16	GEN WB55X10557
17	GEN WB06X10227
18	ASSY WIRE HARNESS-A
20	GEN WB27X10366
21	GEN WB27X10367
22	CUSHION-HVT
25	GEN WB36X10153
26	GEN WB07X10359
27	GEN WB09X0308
28	GEN WB03X10093
30	WB24X829 GE Oven Microwave Secondary Micro Switch
31	SWITCH
32	LATCH – BODY
33	SWITCH – LEVER
34	WB06X10186 GE Oven Door Lever
35	GEN WB38X10035
36	LAMP 130V
38	TCO – BRACKET
39	WB20X10003 GE Microwave Thermostat
40	WB27X10516 GE Oven Magnetron Assembly
41	POWER CORD
42	CAPACITOR BRACKET
43	CAPACITOR 0.95 UF
44	GEN WB27X10287
45	MAGNETRON COVER
47	WB06X10194 GE Oven Foot
48	WB26X10024 GE Oven Motor T/T
49	TCO CAVITY (FLAME SNSR)
51	GEN WB06X10050
52	WB27X1160 GE Microwave High Voltage Diode
53	WB27X10928 GE Oven Line Fuse
54	FAN MOTOR ASS'Y
55	GEN WB02X10669
57	CUSHION RUBBER
999	GEN 31-20929
999	GEN 49-40049
