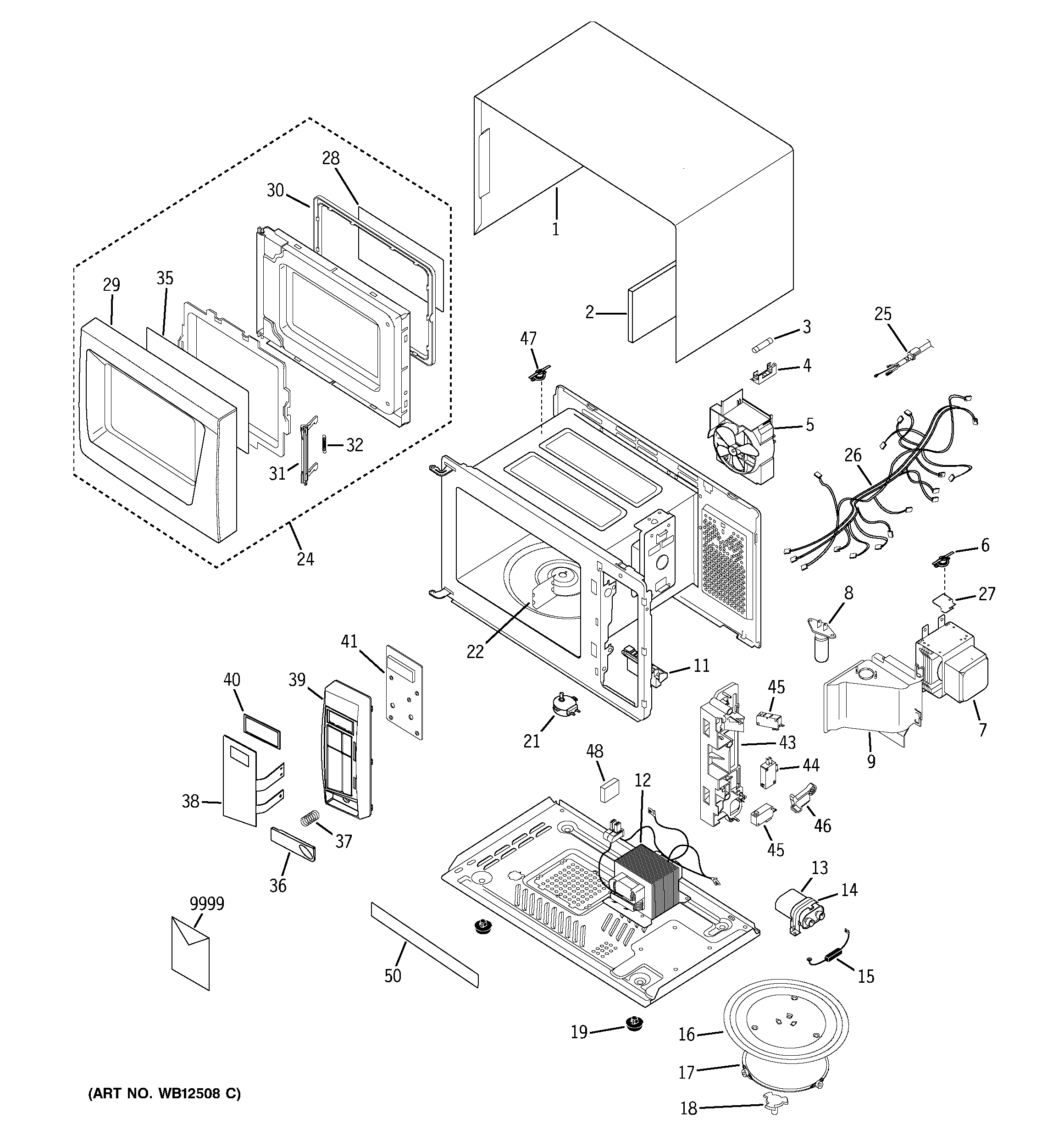

JES1235BF001 MICROWAVE

Products

Position	Product
1	GEN WB56X10237
2	CUSHION RUBBER
3	WB27X10928 GE Oven Line Fuse
4	GEN WB06X10050
5	MOTOR, VENTILATION ASM
6	WB20X10003 GE Microwave Thermostat
7	WB27X10516 GE Oven Magnetron Assembly
8	LAMP 130V
9	GEN WB38X10035
11	WB06X10186 GE Oven Door Lever
12	GEN WB27X10625
13	WB27X10073 GE Oven Capacitor
14	CAPACITOR BRACKET
15	WB27X10597 GE Oven Diode
16	COOKING TRAY – GLASS
17	ROLLER GUIDE ASSY
18	WB06X10059 GE Oven Coupler
19	WB06X10194 GE Oven Foot
21	WB26X10024 GE Oven Motor T/T
22	MAGNETRON COVER
24	GEN WB56X10563
25	GEN WB18X10160
26	ASSY WIRE HARNESS-A
27	TCO – BRACKET
28	GEN WB06X10227
29	GEN WB55X10735
30	CHOKE COVER
31	LATCH
32	LATCH SPRING
35	GEN WB55X10333
36	GEN WB03X10240
37	GEN WB09X0308
38	GEN WB27X10631
39	GEN WB07X10828
40	GEN WB36X10153
41	GEN WB27X10632
43	LATCH – BODY
44	SWITCH
45	WB24X829 GE Oven Microwave Secondary Micro Switch
46	SWITCH – LEVER
47	GEN WB27X10075
48	GEN WB06X10440
50	GEN 49-40245
9999	GEN 31-40012
9999	GEN 49-40257
