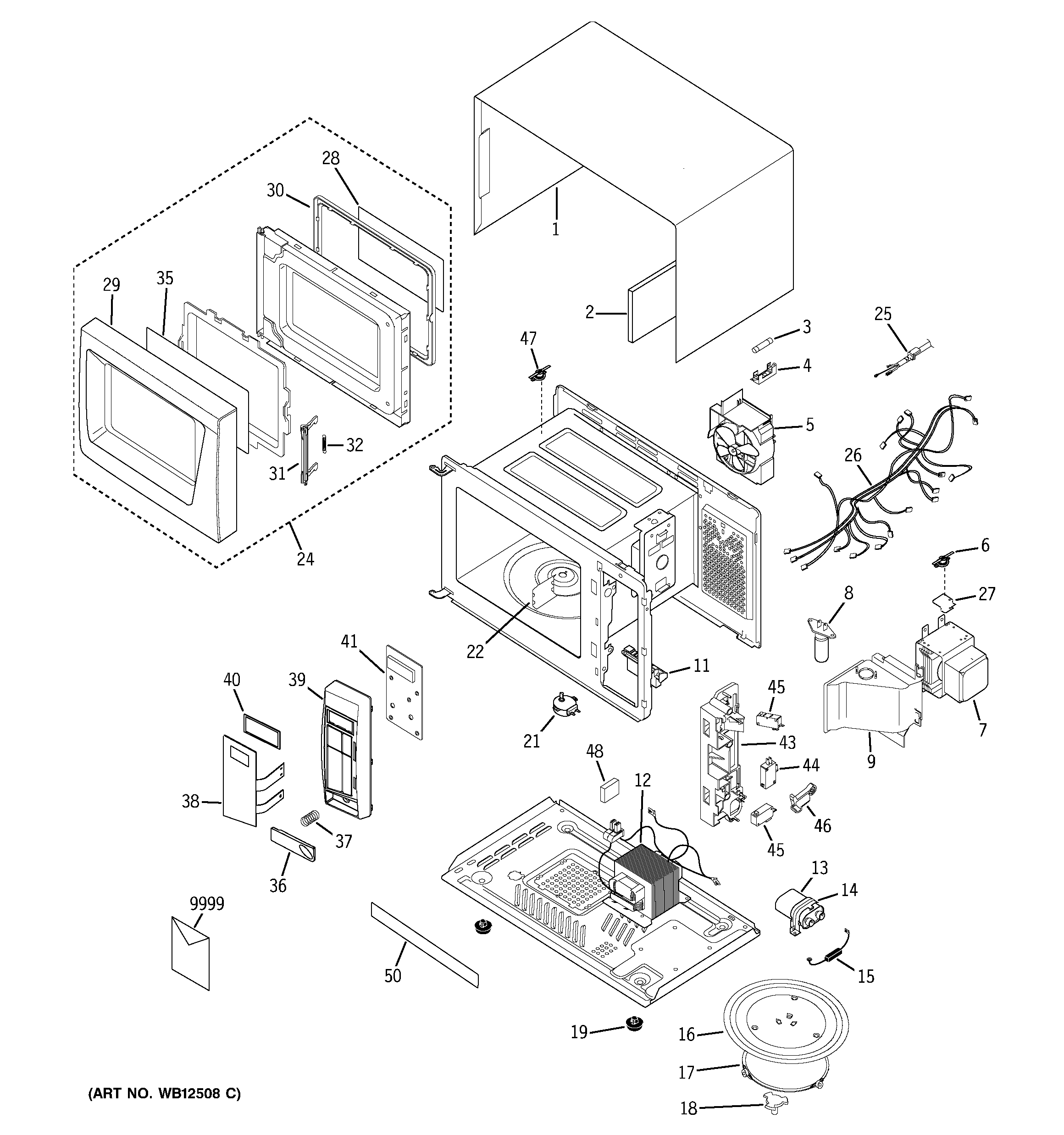

JES1235WF001 MICROWAVE

Products

Position	Product
1	OUTER PANEL – WHITE
2	CUSHION RUBBER
3	WB27X10928 GE Oven Line Fuse
4	GEN WB06X10050
5	MOTOR, VENTILATION ASM
6	WB20X10003 GE Microwave Thermostat
7	WB27X10516 GE Oven Magnetron Assembly
8	LAMP 130V
9	GEN WB38X10035
11	WB06X10186 GE Oven Door Lever
12	GEN WB27X10625
13	WB27X10073 GE Oven Capacitor
14	CAPACITOR BRACKET
15	WB27X10597 GE Oven Diode
16	COOKING TRAY – GLASS
17	ROLLER GUIDE ASSY
18	WB06X10059 GE Oven Coupler
19	WB06X10194 GE Oven Foot
21	WB26X10024 GE Oven Motor T/T
22	MAGNETRON COVER
24	GEN WB55X10332
25	POWER CORD
26	ASSY WIRE HARNESS-A
27	TCO – BRACKET
28	GEN WB06X10227
29	GEN WB55X10329
30	CHOKE COVER
31	LATCH – WHITE
32	LATCH SPRING
35	GEN WB55X10333
36	GEN WB03X10093
37	GEN WB09X0308
38	GEN WB27X10633
39	GEN WB07X10359
40	GEN WB36X10153
41	GEN WB27X10632
43	LATCH – BODY
44	SWITCH
45	WB24X829 GE Oven Microwave Secondary Micro Switch
46	SWITCH – LEVER
47	GEN WB27X10075
48	GEN WB06X10440
50	GEN 49-40245
9999	GEN 31-40012
9999	GEN 49-40257
