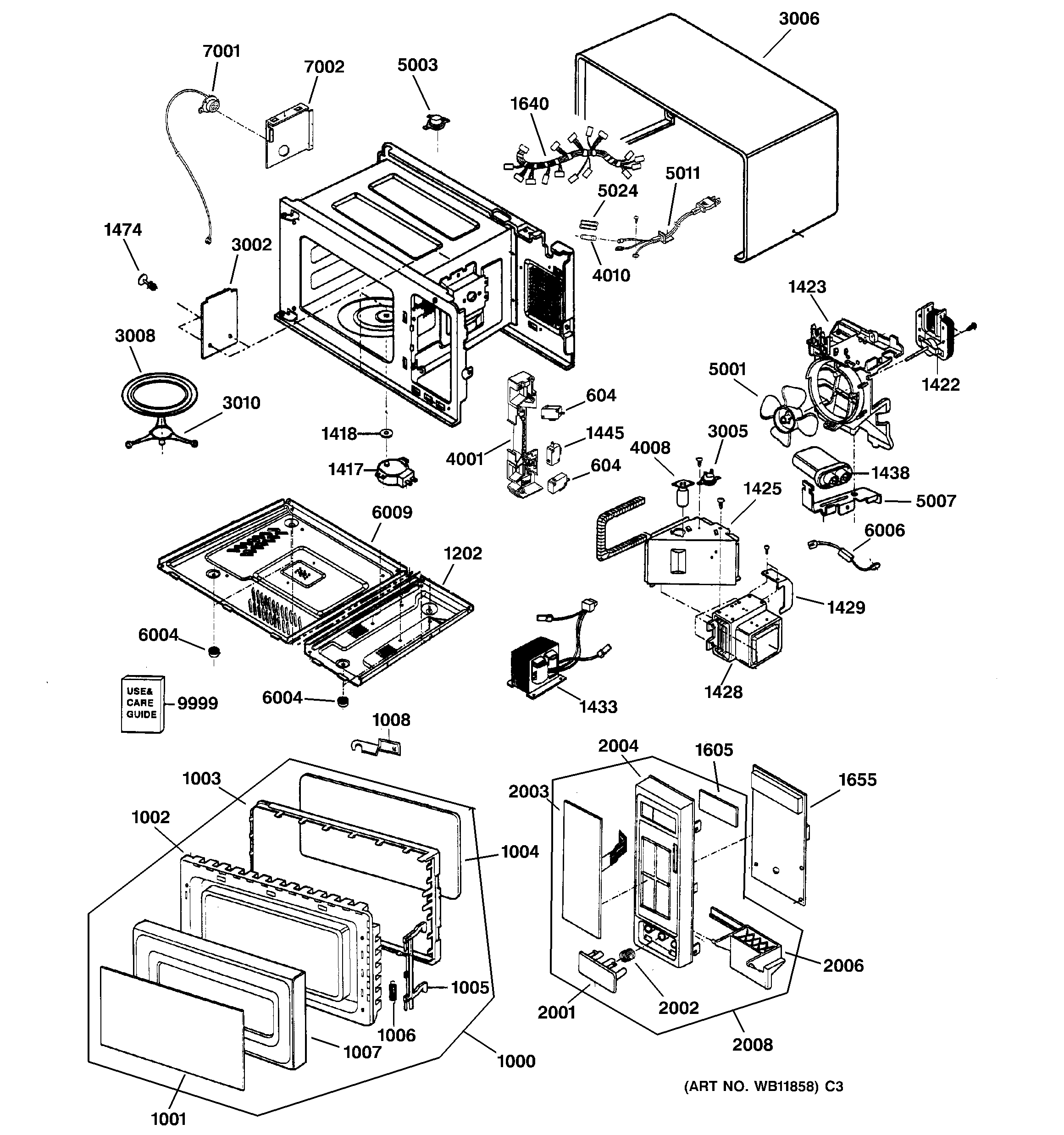

JES1351WB002 MICROWAVE PARTS

Products

Position	Product
604	PRIMARY INTERLOCK SWITCH
1000	GEN WB55X10318
1001	GEN WB55X10112
1002	GEN WB55X10279
1003	GEN WB55X10114
1004	GEN WB55X10115
1005	WB06X10030 GE Oven Door Key
1006	GEN WB09X10003
1007	GEN WB55X10319
1008	GEN WB14X10003
1202	GEN WB56X10128
1417	GEN WB26X10056
1418	GEN WB06X10204
1422	MOTOR(CIRC),FAN
1423	GUIDE,SUCTION
1425	GEN WB06X10208
1428	GEN WB27X10309
1429	GEN WB06X10211
1433	GEN WB27X10347
1438	CAPACITOR, H. V.
1445	WB24X25397 GE Oven Interlock Monitor Switch
1474	RIVET ASSY ALL
1605	GEN WB36X10151
1640	GEN WB18X10098
1655	GEN WB27X10348
2001	GEN WB03X10056
2002	SPRING
2003	GEN WB27X10349
2004	GEN WB07X10186
2006	LEVER,RELEASE
2008	GEN WB07X10341
3002	CANOPY,MICA
3005	GEN WB24X10045
3006	GEN WB56X10076
3008	WB49X10139 GE Oven Glass Tray
3010	TURN TABLE ASSY
4001	WB02X21787 GE Oven Board Latch
4008	LAMP[OVEN/BASELESS]
4010	WB27X10928 GE Oven Line Fuse
5001	FAN
5003	THERMOSTAT,BIMETAL
5007	BRACKET,HVC
5011	GEN WB18X10099
5024	GEN WB06X10213
6004	GEN WB06X10028
6006	DIODE-CABLE
6009	BASE PLATE
7001	SENSOR ASS'Y
7002	GEN WB06X10212
9999	GEN 31-20914
9999	MANUAL,OWNERS
