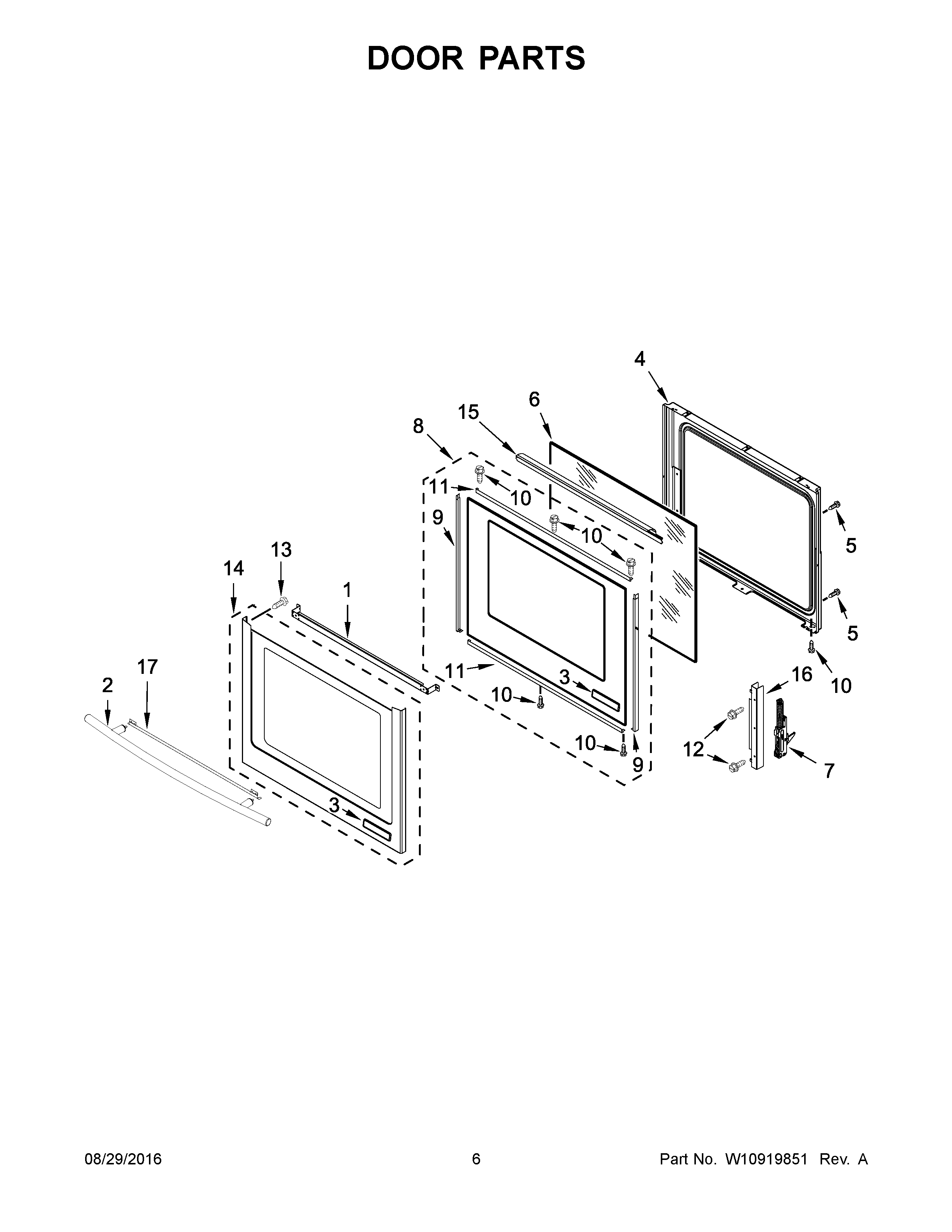

JES1450CDB1 04 – DOOR PARTS

Products

PositionProduct
1BRACKET, GLASS UPPER HANDLE
2AASSEMBLY, DOOR HANDLE (STAINLESS)
2ASSEMBLY, DOOR HANDLE (BLACK)
3ASSEMBLY, BADGE (BLACK)
3AASSEMBLY, BADGE (STAINLESS)
4LINER, DOOR
5SCREW
6GLASS, INNER
7HINGE, SLOW CLOSE
8ASSEMBLY, OUTER DOOR (BLACK)
9TRIM, DOOR SIDE (BLACK)
10SCREW
11RAIL, HORIZONTAL SUPPORT
12MAY W10031780
13SCREW
14ASSEMBLY, OUTER DOOR (STAINLESS)
15SCOOP, DOOR (BLACK)
16RAIL, VERTICAL SUPPORT
17DOOR, TRIM TOP
