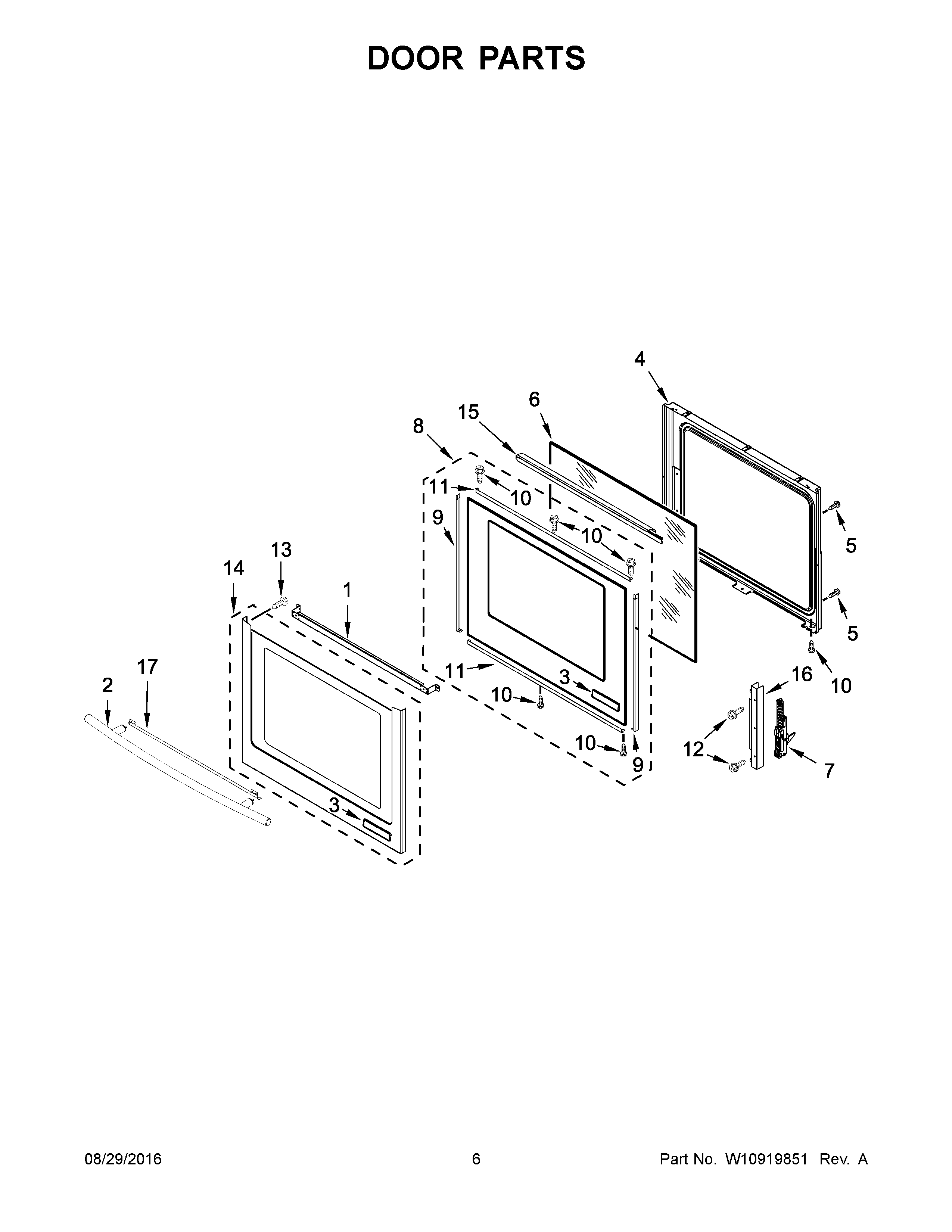

JES1450CDS1 04 – DOOR PARTS

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2A	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	ASSEMBLY, DOOR HANDLE (BLACK)
3	ASSEMBLY, BADGE (BLACK)
3A	ASSEMBLY, BADGE (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	HINGE, SLOW CLOSE
8	ASSEMBLY, OUTER DOOR (BLACK)
9	TRIM, DOOR SIDE (BLACK)
10	SCREW
11	RAIL, HORIZONTAL SUPPORT
12	MAY W10031780
13	SCREW
14	ASSEMBLY, OUTER DOOR (STAINLESS)
15	SCOOP, DOOR (BLACK)
16	RAIL, VERTICAL SUPPORT
17	DOOR, TRIM TOP
