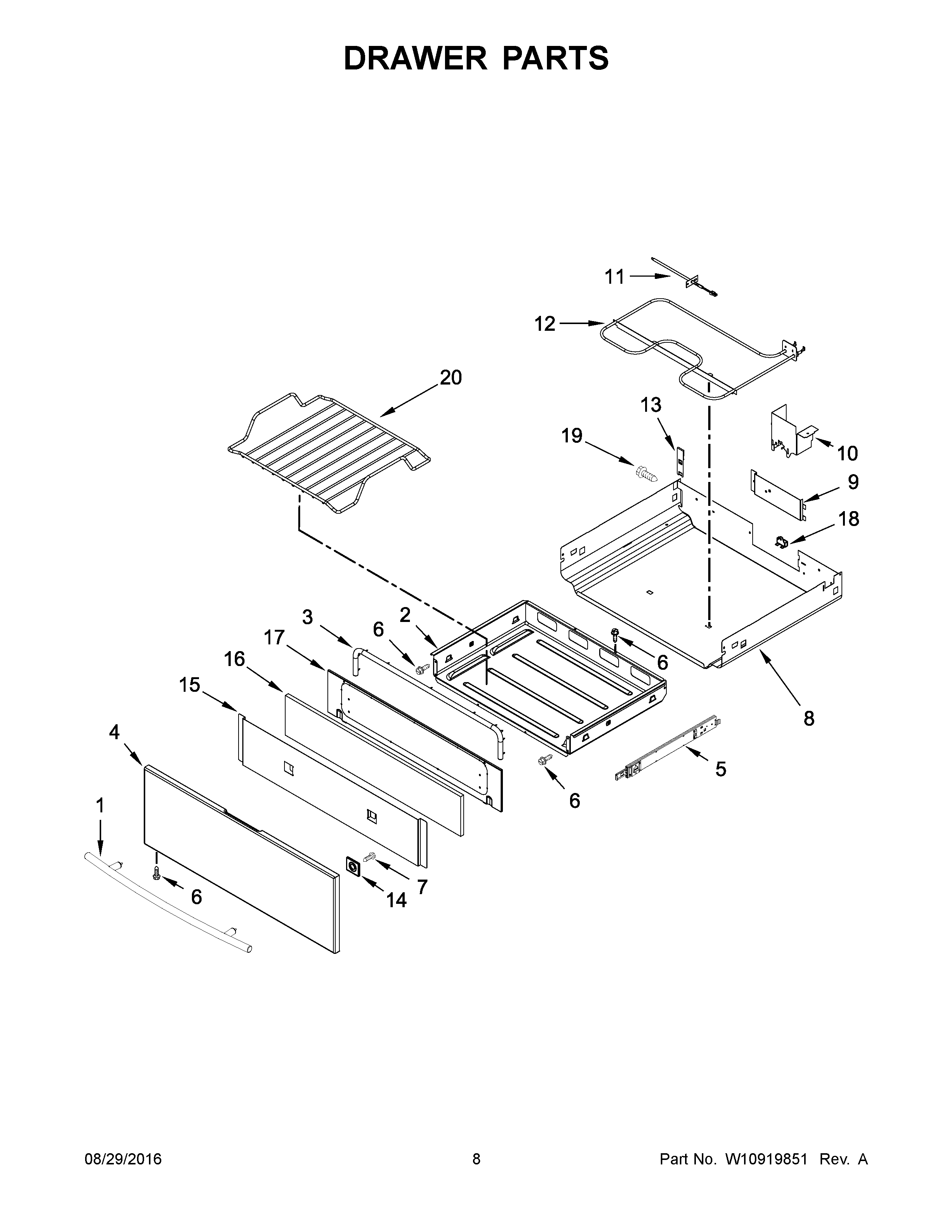

JES1450CDS1 05 – DRAWER PARTS

JES1450CDS1 05 – DRAWER PARTS

Written by

in

JES1450CDS1 05 – DRAWER PARTS

Products

PositionProduct
1AASSEMBLY, DOOR HANDLE (STAINLESS)
1ASSEMBLY, DOOR HANDLE (BLACK)
2DRAWER, BAKE
3SEAL, DRAWER
4PANEL, DRAWER FRONT (BLACK)
4APANEL, DRAWER FRONT (STAINLESS)
5MAY W10541946
5AMAY W10541945
6SCREW
7SCREW
8MAY W10634260
9COVER, GAS VALVE
10MAY W10634259
11SENSOR
12ELEMENT, BAKE
13COVER, SIDE
14MAY 3823F017-45
15INSULATION, DRAWER FRONT
16INSULATION, DRAWER
17PANEL, FRONT INNER
18FUSE, THERMAL
19SCREW
20RACK, BAKE DRAWER
