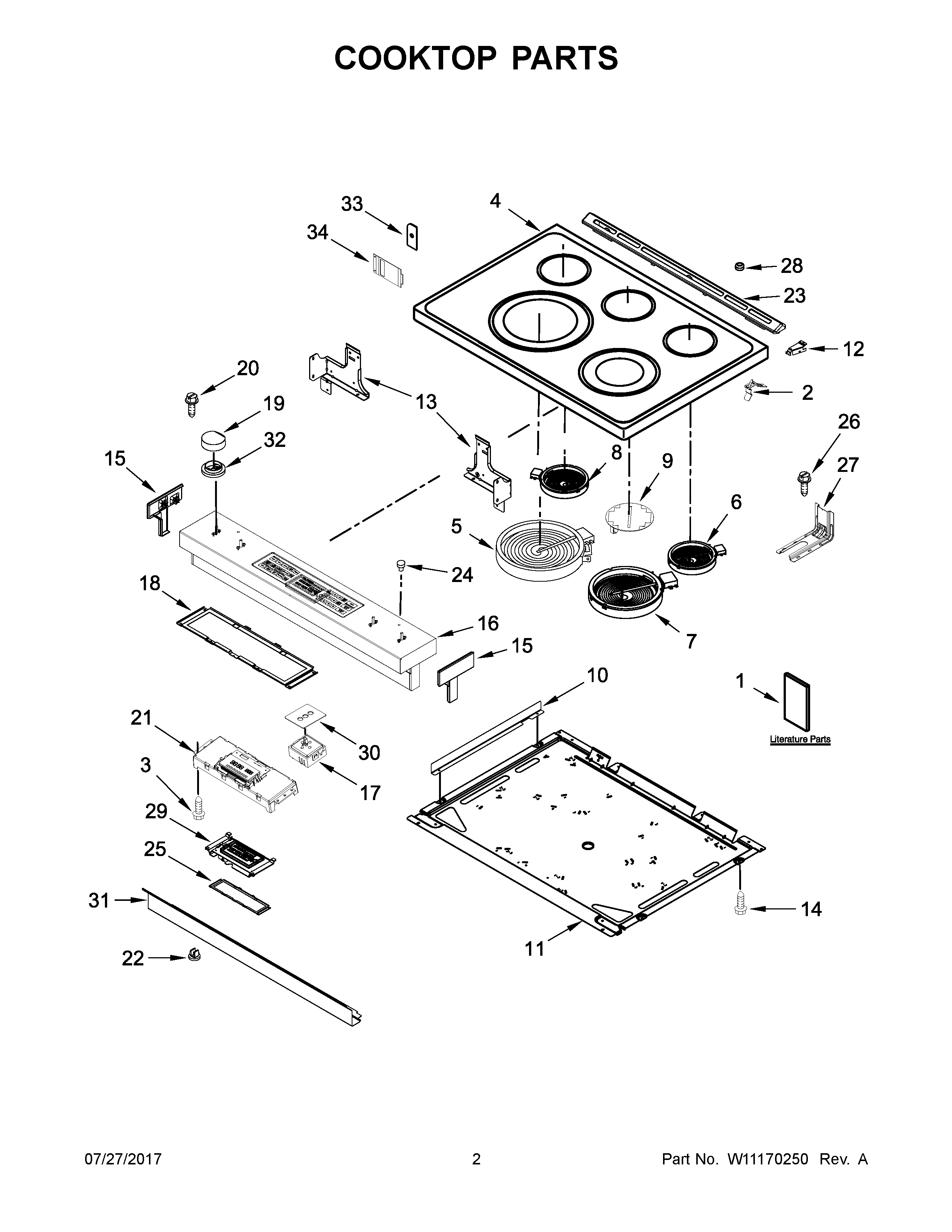

JES1450CFS1 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10580303
NI	CLIP, WIRE
NI	MAY W10580307
NI	MAY W10664316
NI	MAY W10580316
NI	MAY W10580249
NI	MAY W10598170
NI	MAY W10575120
NI	LINER (NOT A SERVICEABLE PART)
1E	MAY W10400064
1B	SHEET, TECH
1C	TIPS, SAFE COOKING (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
1F	MAY W10400065
1A	MAY W10896664
1D	TIPS, SAFE COOKING (FRENCH)
1G	MAY W10902663
2	SPRING, ELEMENT
3	SCREW
4A	COOKTOP (STAINLESS)
4	COOKTOP (BLACK)
5	ELEMENT (3000W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1300W) (LEFT REAR)
9	ELEMENT, WARM ZONE (CENTER)
10	MAY W10613286
11	MAY W10536275
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
13B	BRACKET, CONSOLE (CE
13	SUPPORT, COOKTOP (RIGHT)
14	SCREW
15C	ENDCAP (STAINLESS (RIGHT))
15	ENDCAP (BLACK (LEFT))
15A	ENDCAP (BLACK (RIGHT))
15B	ENDCAP (STAINLESS (LEFT))
16A	CONSOLE (STAINLESS)
16	CONSOLE (BLACK)
17A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17	SWITCH, INFINITE (LEFT FRONT)
17B	SWITCH, INFINITE (RIGHT FRONT)
18	BRACKET, CONTROL
19A	KNOB (STAINLESS)
19	KNOB (BLACK)
20	SCREW
21	CONTROL MRC2
22	GROMMET
23	MAY W10636528
23A	VENT, TRIM TOP (STAINLESS)
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	MAY W10759324
30	GASKET, INFINITE SWITCH
31A	CONSOLE, LOWE
31	CONSOLE, LOWER PANEL (BLACK)
32A	MAY W10663810
32	MAY W10663811
33	MAY W10882900
34	SHIELD, KEYPAD
