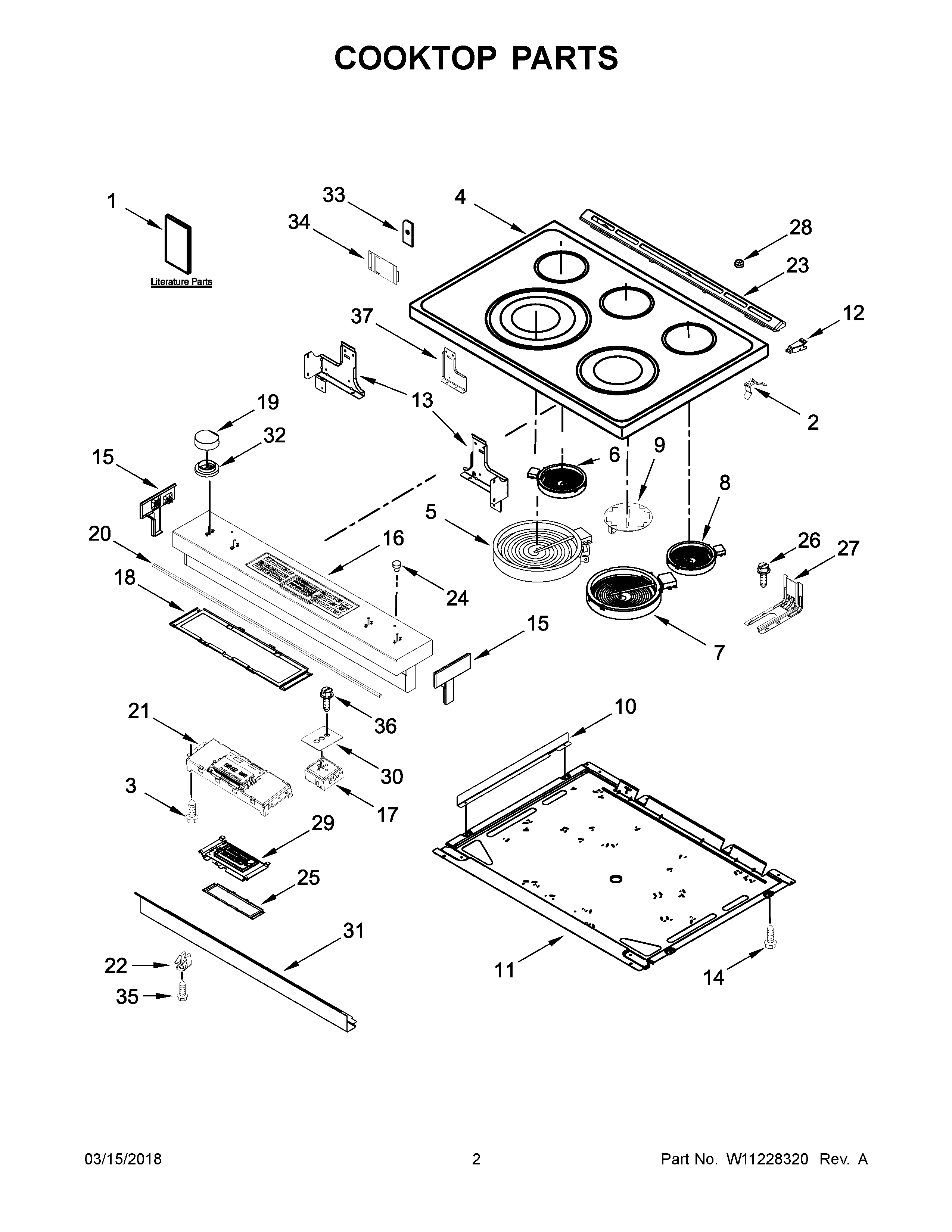

JES1450CFS2 02 – COOKTOP PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	MAY W11172426
NI	MAY W10575120
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, WIRE
NI	MAY W10653092
NI	MAY W10664316
NI	MAY W11134658
NI	MAY W11190471
NI	MAY W11172530
NI	MAY W11172417
1B	SHEET, TECH
1D	MAY W10400065
1C	MAY W10400064
1	INSTRUCTIONS, INSTALLATION
1E	MAY W10902663
1A	MAY W10896664
2	SPRING, ELEMENT
3	SCREW
4	COOKTOP (STAINLESS)
5	ELEMENT (3000W) (LEFT FRONT)
6	ELEMENT (1300W) (LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
9	ELEMENT, WARM ZONE (CENTER)
10	MAY W10613286
11	MAY W10536275
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13A	SUPPORT, COOKTOP (RIGHT)
13	SUPPORT, COOKTOP (LEFT)
14	SCREW
15A	ENDCAP (STAINLESS (RIGHT))
15	ENDCAP (STAINLESS (LEFT))
16	CONSOLE (STAINLESS)
17B	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17	SWITCH, INFINITE (LEFT FRONT)
17A	SWITCH, INFINITE (RIGHT FRONT)
18	BRACKET, CONTROL
19	KNOB (STAINLESS)
20	GASKET, CONSOLE/COOKTOP
21	CONTROL MRC2
22	MAY W10866583
23	VENT, TRIM TOP (STAINLESS)
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	MAY W10759324
30	GASKET, INFINITE SWITCH
31	CONSOLE, LOWE
32	MAY W10663810
33	MAY W10882900
34	SHIELD, KEYPAD
35	MAY W10516115
36	MAY W10498399
37	BRACKET, CONSOLE (CE
