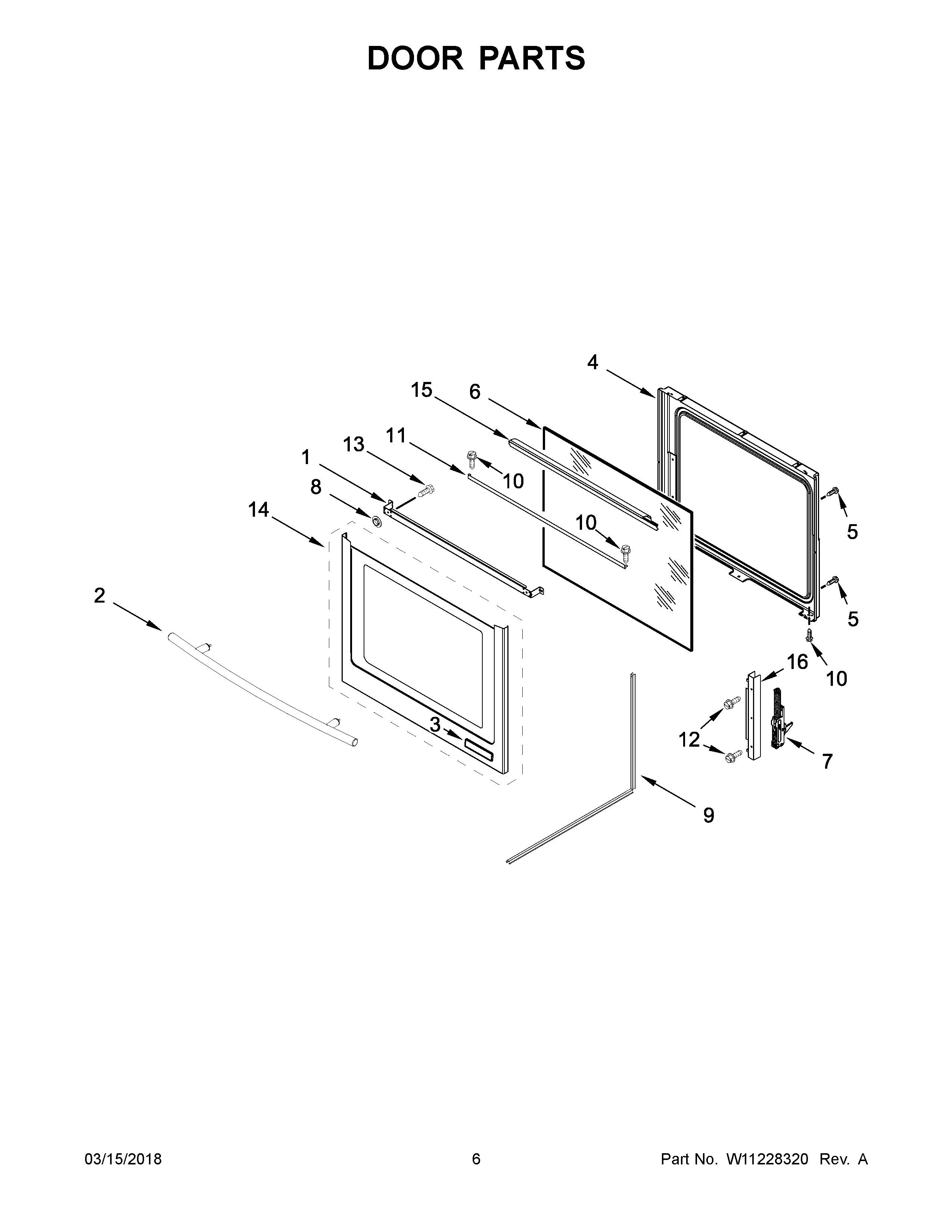

JES1450CFS2 04 – DOOR PARTS

JES1450CFS2 04 – DOOR PARTS

Written by

in

JES1450CFS2 04 – DOOR PARTS

Products

PositionProduct
1BRACKET, GLASS UPPER HANDLE
2ASSEMBLY, DOOR HANDLE (STAINLESS)
3ASSEMBLY, BADGE (STAINLESS)
4LINER, DOOR
5SCREW
6GLASS, INNER
7HINGE, SLOW CLOSE
8WASHER, DOOR
9SPACER, GLASS
10SCREW
11RAIL, HORIZONTAL SUPPORT
12MAY W10031780
13SCREW (STAINLESS MODELS)
14ASSEMBLY, OUTER DOOR (STAINLESS)
15SCOOP, DOOR (STAINLESS)
16RAIL, VERTICAL SUPPORT
