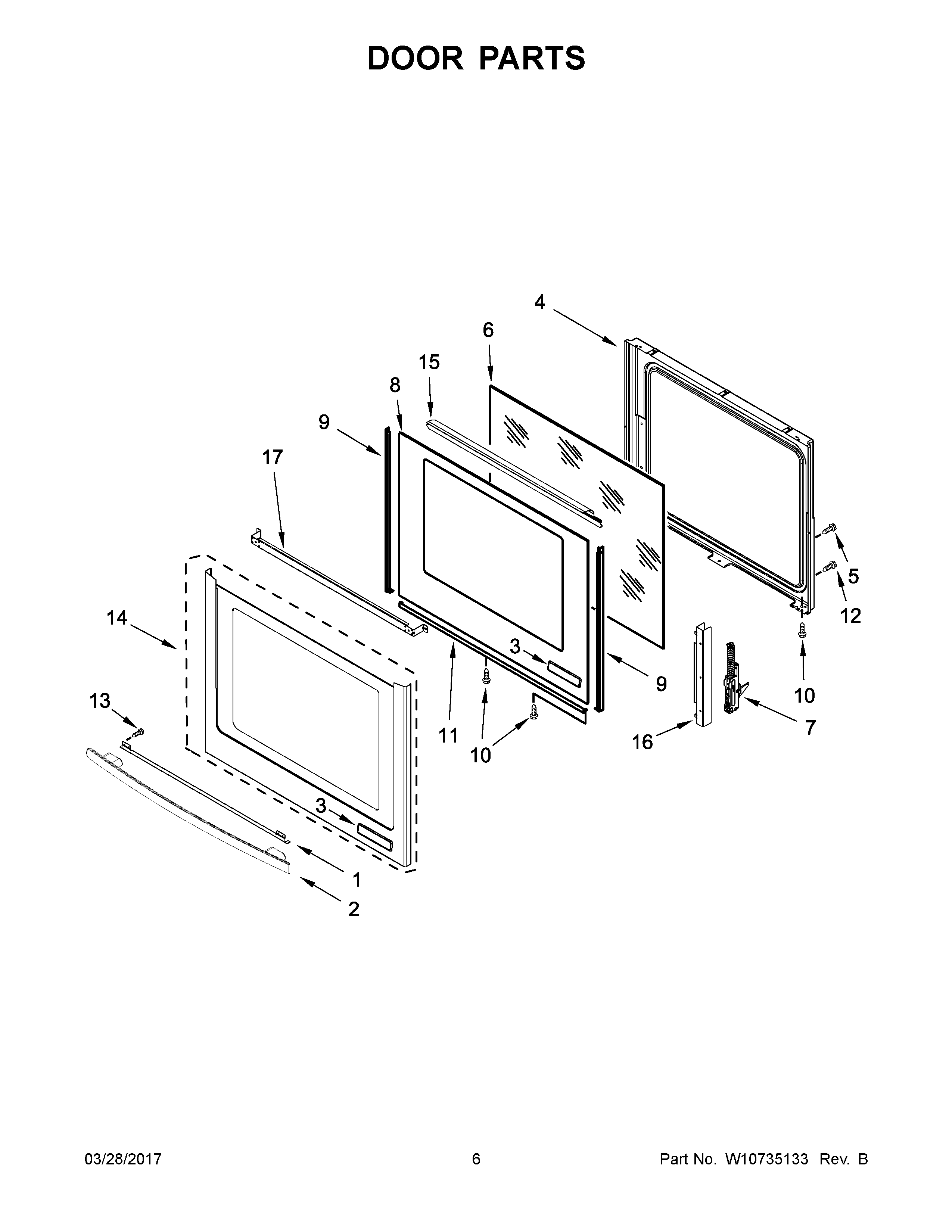

JES1450DB0 04 – DOOR PARTS

Products

PositionProduct
1DOOR, TRIM TOP
2AASSEMBLY, DOOR HANDLE (STAINLESS)
2ASSEMBLY, DOOR HANDLE (BLACK)
3ASSEMBLY, BADGE (BLACK)
3BASSEMBLY, BADGE (STAINLESS)
4MAY W10541882
5SCREW
6MAY W10541888
7MAY W10541887
7AHINGE, SLOW CLOSE (STAINLESS MODELS)
8ASSEMBLY, OUTER DOOR (BLACK)
9TRIM, DOOR SIDE (BLACK)
10SCREW
11MAY W10541885
12MAY W10031780
13SCREW
14ASSEMBLY, OUTER DOOR (STAINLESS)
15ASCOOP, DOOR (STAINLESS)
15SCOOP, DOOR (BLACK)
16MAY W10541883
17BRACKET, GLASS UPPER HANDLE
