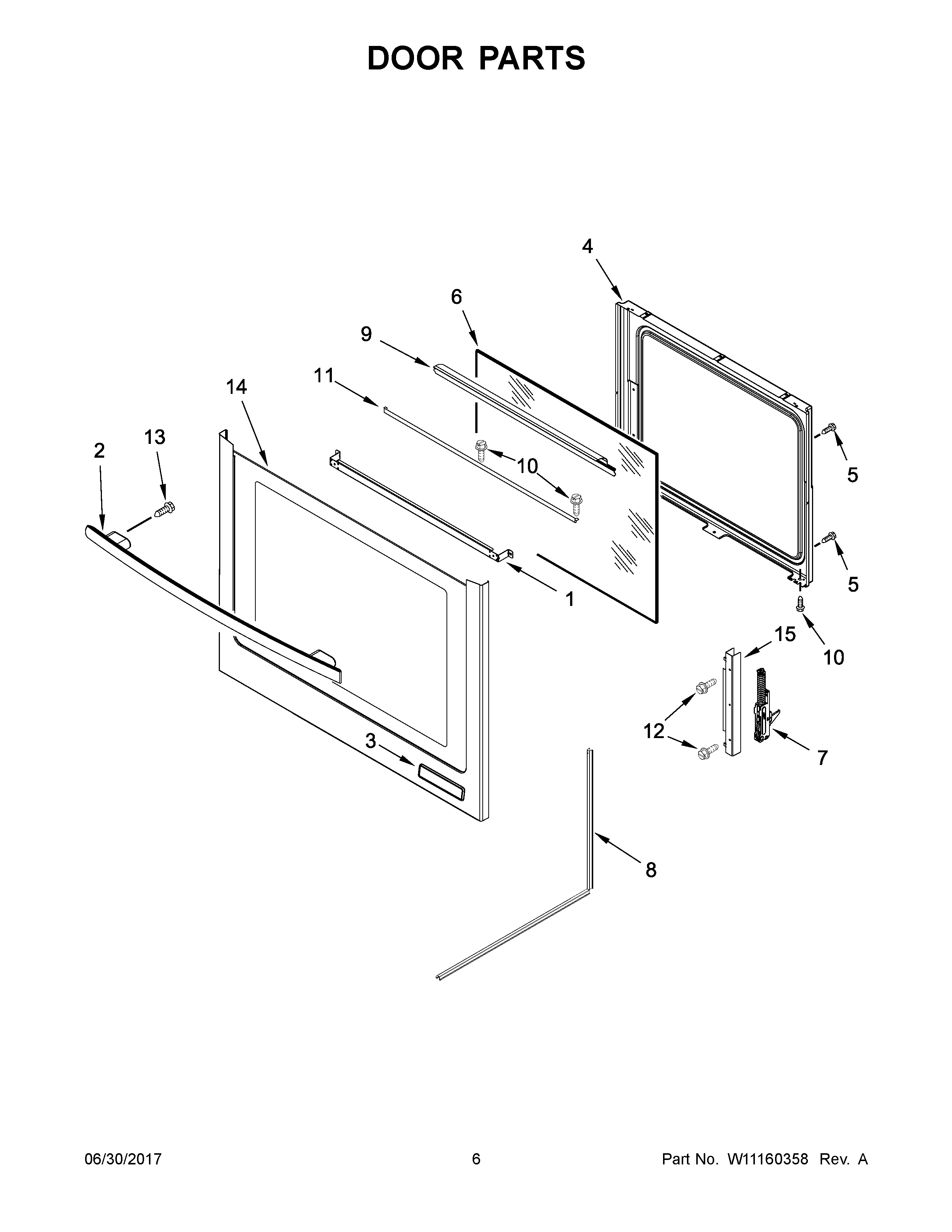

JES1450FS1 04 – DOOR PARTS

Products

PositionProduct
1BRACKET, GLASS UPPER HANDLE
2AASSEMBLY, DOOR HANDLE (STAINLESS)
2ASSEMBLY, DOOR HANDLE (BLACK)
3ASSEMBLY, BADGE (STAINLESS)
4LINER, DOOR
5SCREW
6GLASS, INNER
7HINGE, SLOW CLOSE
8SPACER, GLASS
9ASCOOP, DOOR (STAINLESS)
9SCOOP, DOOR (BLACK)
10SCREW
11RAIL, HORIZONTAL SUPPORT
12MAY W10031780
13SCREW
14ASSEMBLY, OUTER DOOR (BLACK)
14ADOOR, COMPLETE (STAINLESS)
15RAIL, VERTICAL SUPPORT
