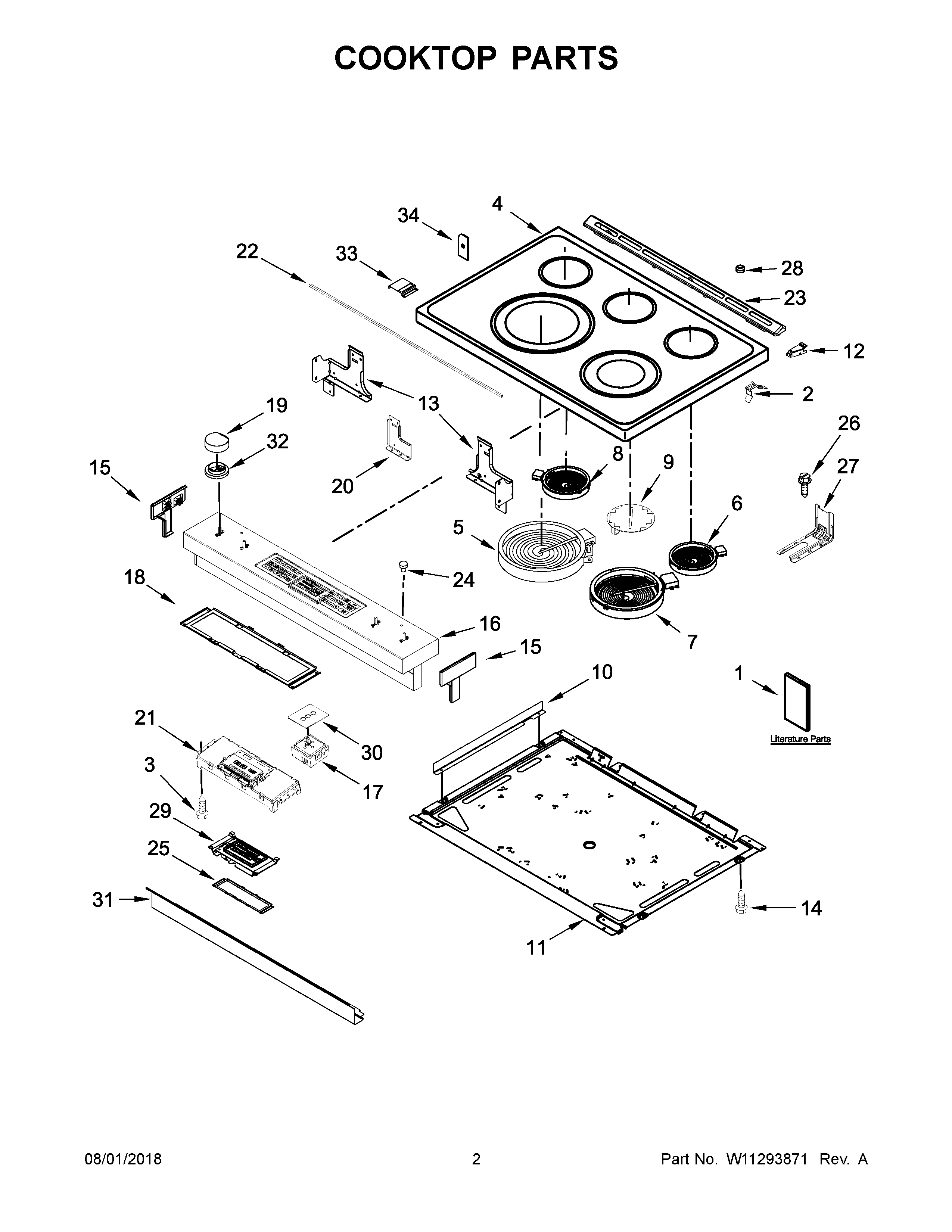

JES1450FS2 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10664316
NI	MAY W11196719
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, HARNESS
NI	MAY 7111P017-60
NI	MAY W10575120
NI	MAY W11134658
NI	MAY W11172426
NI	MAY W11172417
NI	MAY W11172530
NI	MAY W10653092
1D	MAY W10400065
1C	MAY W10400064
1E	MAY W10902663
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1A	MAY W10896664
2	SPRING, ELEMENT
3	SCREW
4	COOKTOP (STAINLESS)
5	ELEMENT (3000W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1300W) (LEFT REAR)
9	ELEMENT, WARM ZONE (CENTER)
10	BRACKET, RADIANT
11	MAY W10536275
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13	SUPPORT, COOKTOP (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
14	SCREW
15	ENDCAP (STAINLESS (LEFT))
15A	ENDCAP (STAINLESS (RIGHT))
16	CONSOLE (STAINLESS)
17A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17B	SWITCH, INFINITE (RIGHT FRONT)
17	SWITCH, INFINITE (LEFT FRONT)
18	BRACKET, CONTROL
19	KNOB (STAINLESS)
20	BRACKET, CONSOLE (CE
21	CONTROL MRC2
22	GASKET, CONSOLE/COOKTOP
23	VENT, TRIM TOP (STAINLESS)
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	MAY W10759324
30	GASKET, INFINITE SWITCH
31	CONSOLE, LOWE
32	MAY W10663810
33	SHIELD, KEYPAD
34	MAY W10882900
