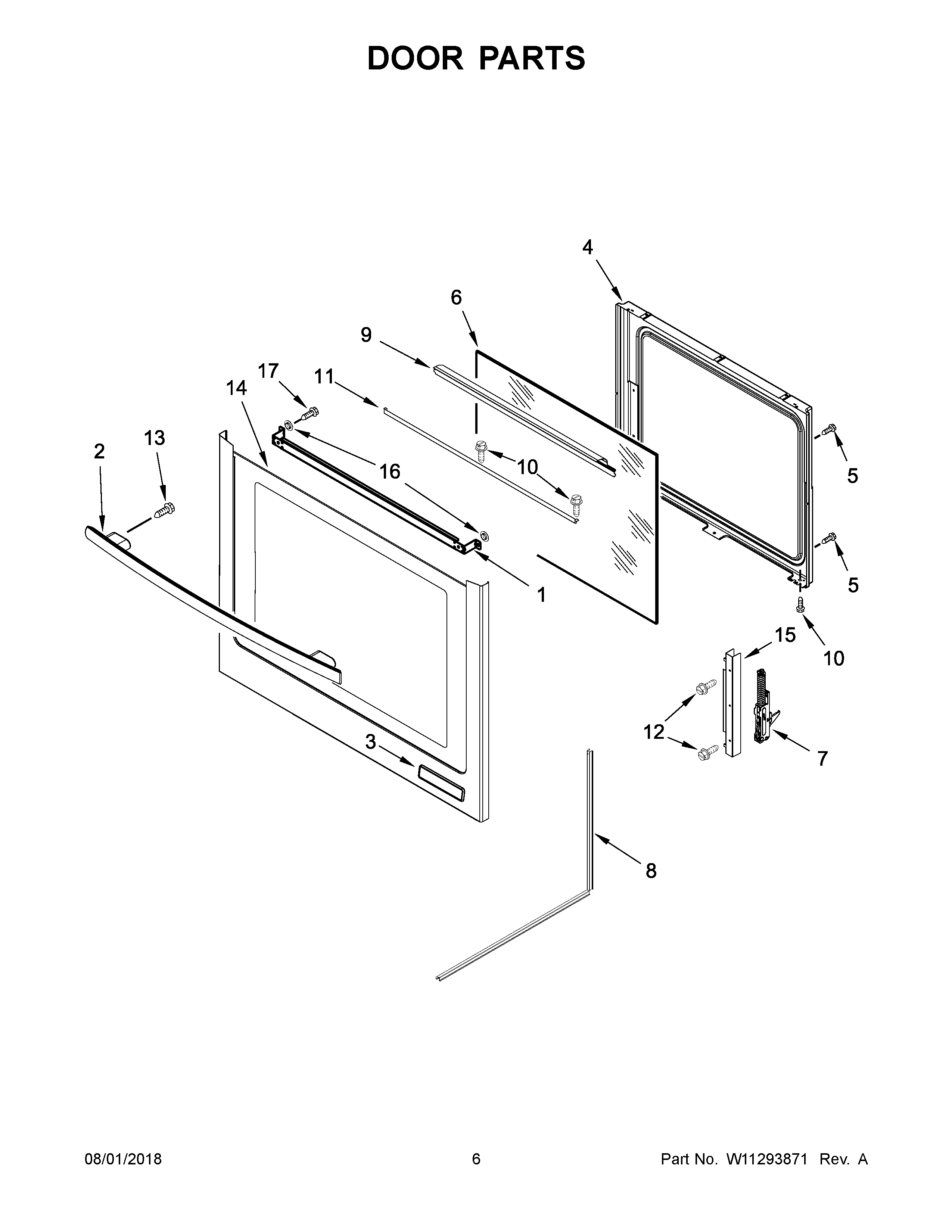

JES1450FS2 04 – DOOR PARTSadmin2025-04-26T09:19:56+00:00JES1450FS2 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET, GLASS UPPER HANDLE |
| 2 | ASSEMBLY, DOOR HANDLE (STAINLESS) |
| 3 | ASSEMBLY, BADGE (STAINLESS) |
| 4 | LINER, DOOR |
| 5 | SCREW |
| 6 | GLASS, INNER |
| 7 | HINGE, SLOW CLOSE |
| 8 | SPACER, GLASS |
| 9 | SCOOP, DOOR (STAINLESS) |
| 10 | SCREW |
| 11 | RAIL, HORIZONTAL SUPPORT |
| 12 | MAY W10031780 |
| 13 | SCREW |
| 14 | DOOR, COMPLETE (STAINLESS) |
| 15 | RAIL, VERTICAL SUPPORT |
| 16 | WASHER, DOOR |
| 17 | SCREW (STAINLESS MODELS) |
