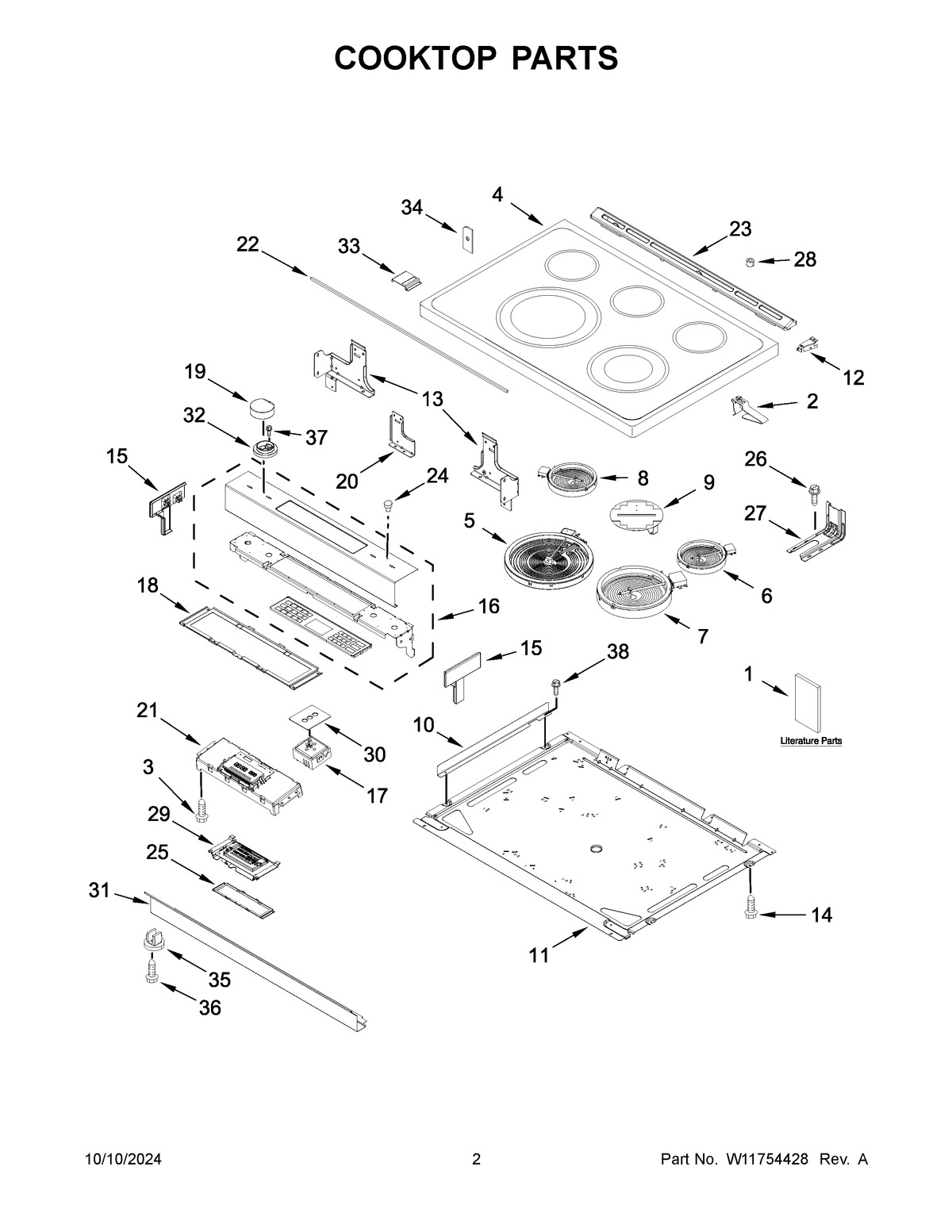

JES1450ML1 02 – COOKTOP PARTS

Products

Position	Product
NI	W11226773 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	HARNS-WIRE
NI	WPL W11630991
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11226786 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10664316 Whirlpool Clip
1A	OWNERS MANUEL
1	CONTROL GUIDE
1C	QUICK START GUIDE
1D	DIMENSION GUIDE
1B	TECH SHEET
2	W11663556 Whirlpool Spring Assembly
3	SCREW
4	W10738936 Whirlpool Cooktop
5	W11563195 Whirlpool Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	ELEMENT, WARM ZONE (CENTER REAR)
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289169 Whirlpool Bracket Support
13	W10289170 Whirlpool Support Bracket
14	W11244557 Whirlpool Screw
15A	W10557754 Whirlpool Endcap Panel
15	W10557751 Whirlpool Panel End Cap
16	CONSOLE (STAINLESS)
17A	W10911303 Whirlpool Infinite Switch
17	W11129442 Whirlpool Surface Infinite Element Switch
17B	W10917724 Whirlpool Infinite Switch
18	W10557780 Whirlpool Bracket Mounting
19	W11233555 Whirlpool Knob
20	W10598048 Whirlpool Support Bracket
21	W11647006-includeCORE Whirlpool W11647006 Electronic Control Board + Core
22	W10802441 Whirlpool Gasket
23	W11170796 Whirlpool Vent Trim
24	WP3196068 Whirlpool Light Lens
25	W10558372 Whirlpool Bracket Mounting
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11690600 Whirlpool Bumper
29	W11120573 Whirlpool Range Power Board
30	GASKET, SWITCH
31	W10565662 Whirlpool Mounting Bracket
32	W11647014 Whirlpool Knob Bezel
33	SHIELD, KEYPAD
34	W10882900 Whirlpool Gasket
35	W11025100 Whirlpool Insert
36	W10516115 Whirlpool Screw
37	7101P676-60 Whirlpool Screw
38	WP3196557 Whirlpool Screw
