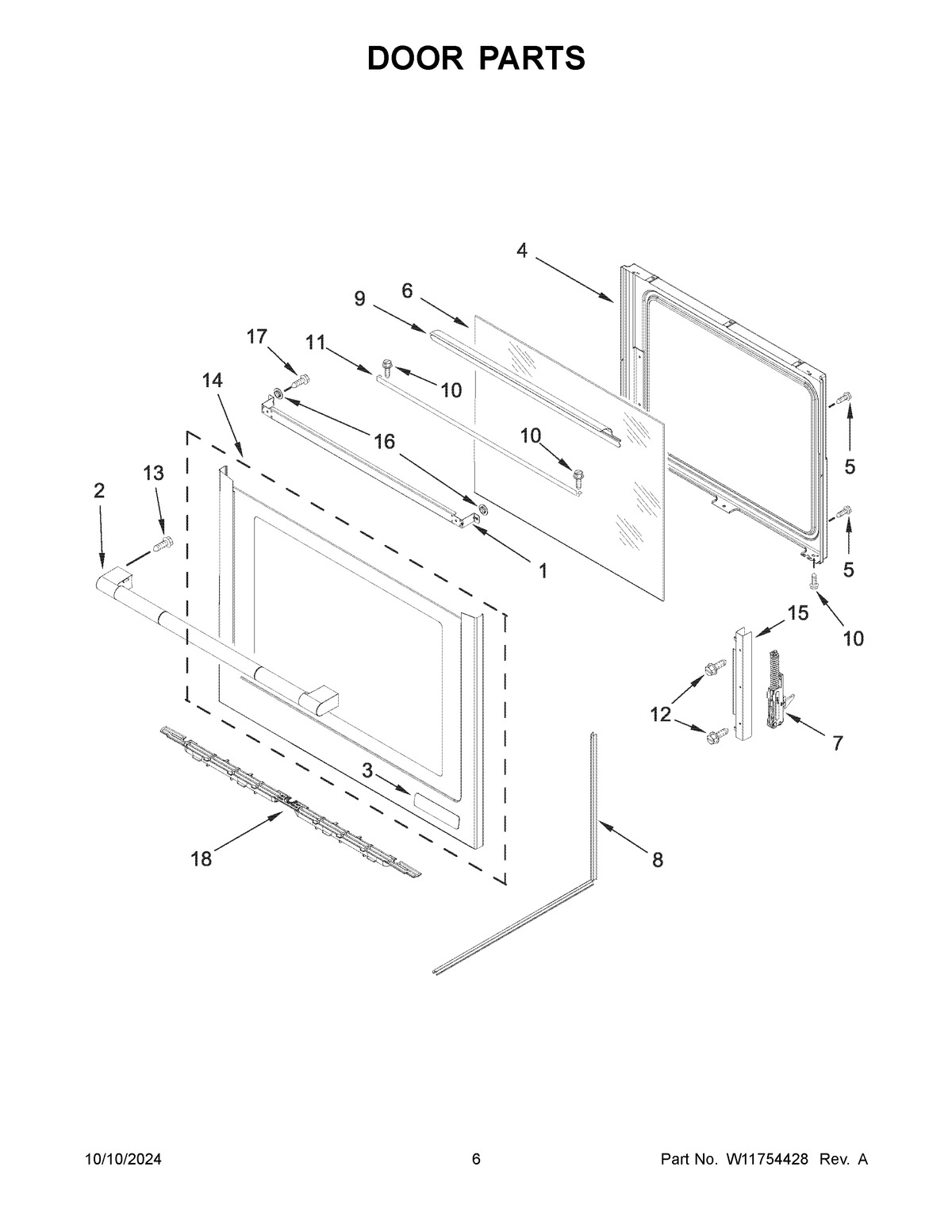

JES1450ML1 04 – DOOR PARTS

Products

Position	Product
1	W10541911 Whirlpool Mounting Bracket
2	ASSEMBLY, DOOR HANDLE (STAINLESS)
3	W11700312 Whirlpool Nameplate
4	W10902192 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	W11339500 Whirlpool Door Glass
7	W11647009 Whirlpool Door Hinge
8	W11673273 Whirlpool Spacer Glass
9	W11251351 Whirlpool Vent Trim
10	W11245710 Whirlpool Refrigerator Screw
11	W10813140 Whirlpool Glass Bracket
12	W10777162 Whirlpool Screw
13	WP8533988 Whirlpool Screw Fastener
14	W11647013 Whirlpool Door Glass
15	W11744483 Whirlpool Support
16	W11676355 Whirlpool Washer
18	BOTTOM, DOOR COVER
