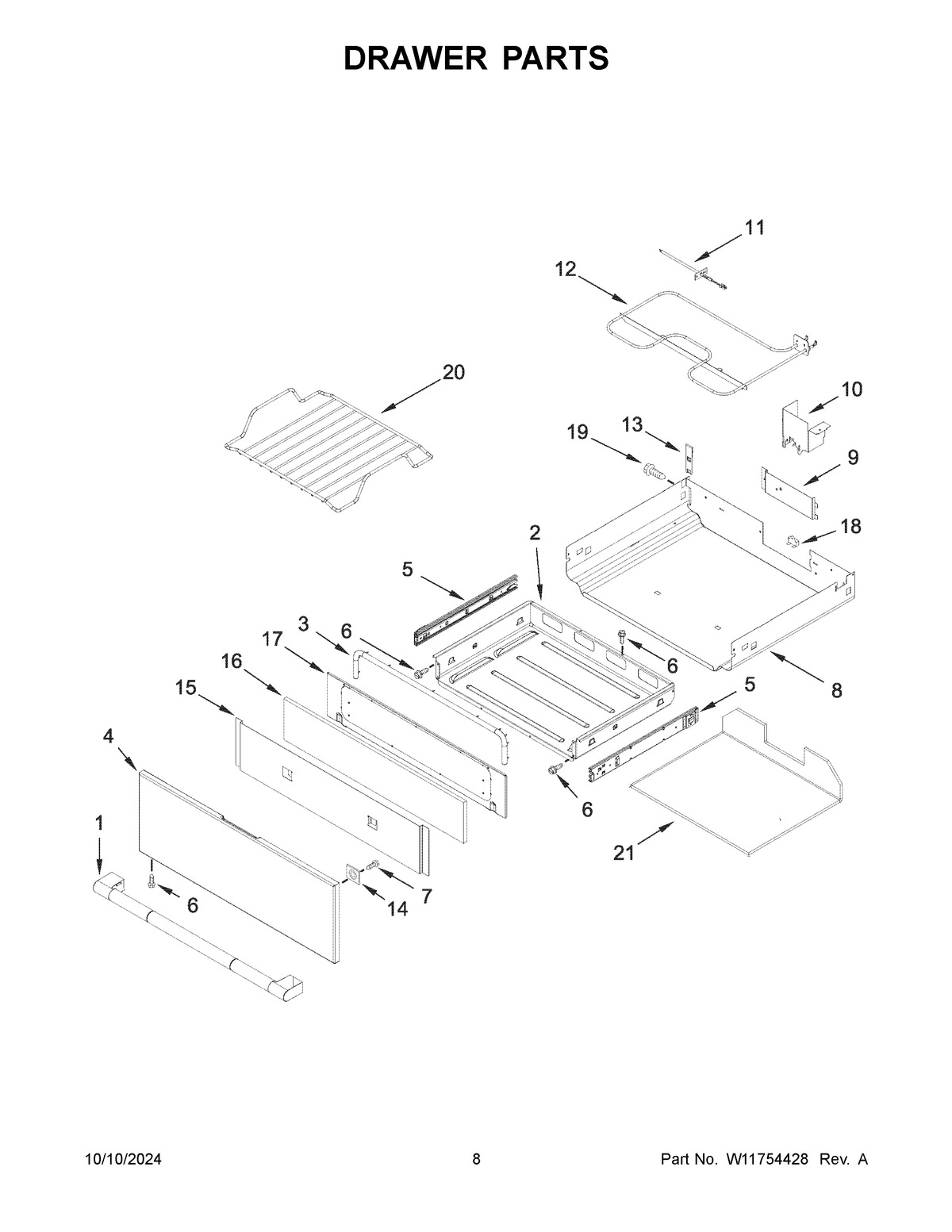

JES1450ML1 05 – DRAWER PARTS

JES1450ML1 05 – DRAWER PARTS

Written by

in

JES1450ML1 05 – DRAWER PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (STAINLESS)
2W11036176 Whirlpool Utility Drawer
3W10550987 Whirlpool Door Seal
4W10541958 Whirlpool Drawer Panel
5AW11670723 Whirlpool Drawer Slide
5W11670722 Whirlpool Drawer Slide
6WP3196557 Whirlpool Screw
7WP8533988 Whirlpool Screw Fastener
8W10634260 Whirlpool Utility Drawer
9COVER, GAS VALVE
10W10634259 Whirlpool Wire Cover
11W11676788 Whirlpool Sensor
12W10541944 Whirlpool Bake Element
13W10551019 Whirlpool Clip
14SPACER, HANDLE
15W10551018 Whirlpool Drawer Panel
16W11688515 Whirlpool Insulation Assembly
17W10541947 Whirlpool Drawer Panel
18W10729897 Whirlpool Thermal Fuse
19W11169708 Whirlpool Screw
20W10602493 Whirlpool Oven Rack
21W11688775 Whirlpool Insulation
