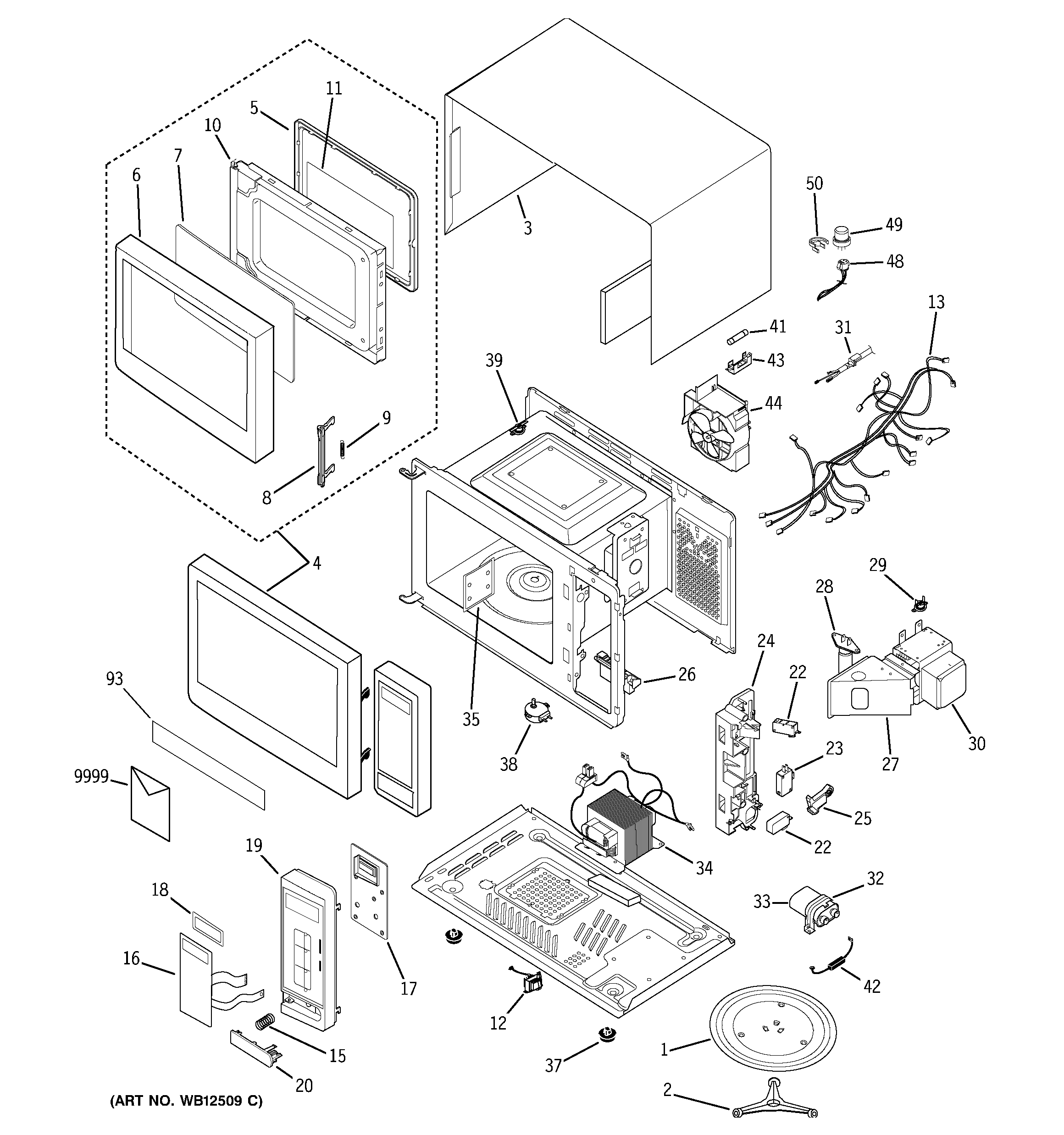

JES1655BF001 MICROWAVE

Products

Position	Product
1	WB49X690 GE Oven Glass Tray
2	GEN WB06X10441
3	GEN WB56X10275
4	GEN WB56X10276
5	DOOR CHOKE
6	GEN WB55X10542
7	GEN WB55X10543
8	LATCH
9	LATCH SPRING
10	DOOR-E ASS'Y
11	GEN WB06X10442
12	GEN WB20X10004
13	ASSY WIRE HARNESS-A
15	GEN WB09X0308
16	GEN WB27X10634
17	SMARTBOARD
18	GEN WB36X0953
19	GEN WB07X10232
20	BUTTON PUSH
22	SWITCH
23	WB24X829 GE Oven Microwave Secondary Micro Switch
24	LATCH – BODY
25	SWITCH – LEVER
26	WB06X10186 GE Oven Door Lever
27	GEN WB06X10187
28	GEN WB08X10012
29	THERMOSTAT-MAGNETRON
30	WB27X10516 GE Oven Magnetron Assembly
31	POWER CORD ASSEMBLY
32	BRACKET H.V.C
33	CAPACITOR-H.V
34	GEN WB27X10625
35	COVER MAG TUBE
37	WB06X10194 GE Oven Foot
38	MOTOR, T/T
39	GEN WB27X10075
41	WB27X10928 GE Oven Line Fuse
42	WB27X1160 GE Microwave High Voltage Diode
43	GEN WB06X10050
44	MOTOR, VENTILATION ASM
48	GEN WB18X10083
49	WB27X1170 GE Oven Gas Sensor
50	WB6X549 GE Oven Holder Sensor A02
93	GEN 49-40270
9999	GEN 31-20930-1
9999	GEN 49-40258
