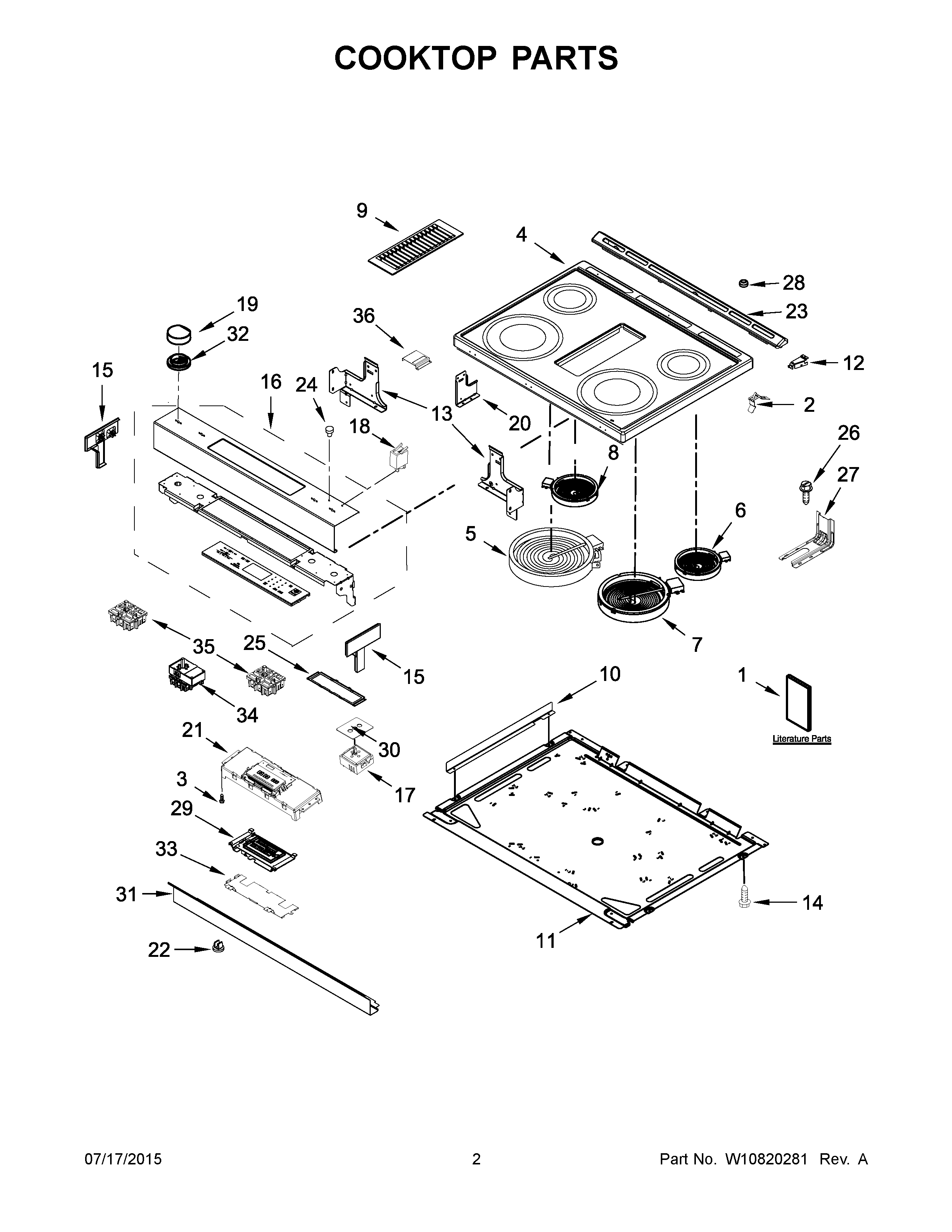

JES1750CEB0 02 – COOKTOP PARTSadmin2025-04-26T09:21:08+00:00JES1750CEB0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY W10575120 |
| NI | MAY W10598170 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10580254 |
| NI | MAY W10580253 |
| NI | MAY W10580264 |
| NI | MAY W10664316 |
| 1C | TIPS, SAFE COOKING (ENGLISH) |
| 1A | MAY W10750371 |
| 1F | MAY W10400067 |
| 1G | MAY W10750124 |
| 1 | MAY W10787365 |
| 1H | MAY W10817089 |
| 1B | SHEET, TECH |
| 1D | TIPS, SAFE COOKING (FRENCH) |
| 1E | MAY W10400066 |
| 2 | SPRING, ELEMENT |
| 3 | SCREW |
| 4 | MAY W10536330 |
| 4A | MAY W10536331 |
| 5 | ELEMENT (3000/1400W) (LEFT FRONT) |
| 6 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 7 | ELEMENT (3200W) (RIGHT FRONT) |
| 8 | ELEMENT (1300W) (LEFT REAR) |
| 9 | MAY W10575593 |
| 10 | MAY W10613286 |
| 11 | MAY W10561812 |
| 12A | BRACE, CORNER (RIGHT) |
| 12 | BRACE, CORNER (LEFT) |
| 13A | SUPPORT, COOKTOP (LEFT) |
| 13 | SUPPORT, COOKTOP (RIGHT) |
| 14 | SCREW |
| 15C | ENDCAP (STAINLESS (RIGHT)) |
| 15A | ENDCAP (STAINLESS (LEFT)) |
| 15B | ENDCAP (BLACK (RIGHT)) |
| 15 | ENDCAP (BLACK (LEFT)) |
| 16A | MAY W10676652 |
| 16 | MAY W10676651 |
| 17 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 18 | MAY 8523265 |
| 19A | KNOB (STAINLESS) |
| 19 | KNOB (BLACK) |
| 20 | BRACKET, CONSOLE (CE |
| 21 | MAY W10453974 |
| 22 | GROMMET |
| 23A | VENT, TRIM TOP (STAINLESS) |
| 23 | MAY W10636528 |
| 24 | MAY 3196068 |
| 25 | BRACKET, CONTROL |
| 26 | SCREW, ANTI-TIP KIT |
| 27 | BRACKET, ANTI-TIP |
| 28 | BUMPER |
| 29 | MAY W10603097 |
| 30 | GASKET, INFINITE SWITCH |
| 31 | MAY W10743280 |
| 31A | MAY W10743281 |
| 32A | MAY W10663810 |
| 32 | MAY W10663811 |
| 33 | BRACKET, CONTROL |
| 34 | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 35 | SWITCH, INFINITE (RIGHT FRONT) |
| 36 | SHIELD, KEYPAD |
