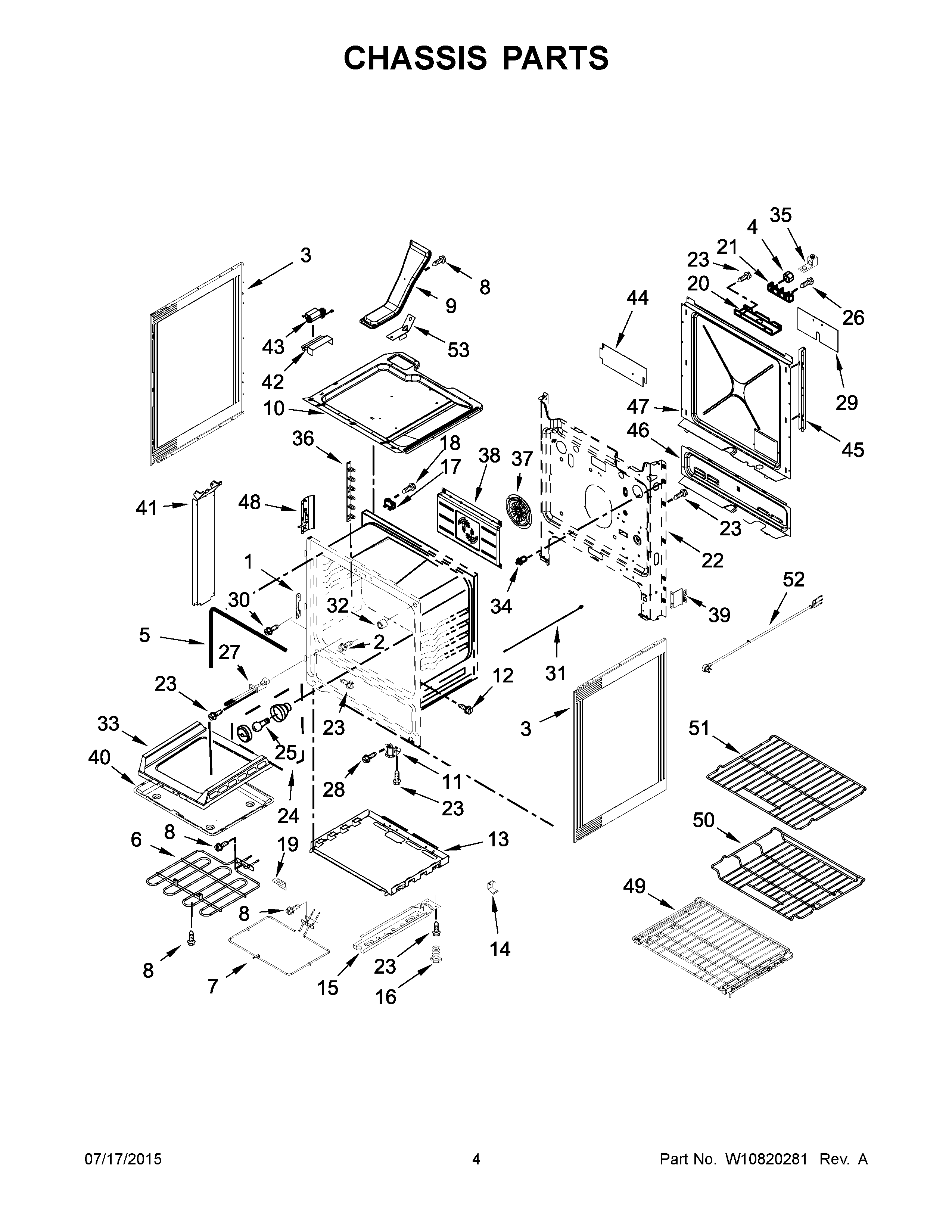

JES1750CES0 03 – CHASSIS PARTS

JES1750CES0 03 – CHASSIS PARTS

Written by

in

JES1750CES0 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7111P017-60
NI	MAY W10742023
NI	INSULATION, BOTTOM
NI	INSULATION, WRAP
NI	INSULATION, BACK
NI	STRAP, INSULATION
1	HINGE, RECEIVER
2	SCREW
3	PANEL, SIDE (BLACK)
4	NUT
5	MAY W10162385
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	MAY W10362924
9	ASSEMBLY, FLUE
10	BOX, BURNER SI
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	SHIELD, BAKE
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15A	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	MAY W10035900
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	LINER (NOT A SERVICEABLE PART)
23	SCREW
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	MAY W10586204
28	SCREW
29	MAY W10655441
30	MAY W10031780
31	ROD, REAR DOOR
32	SPACER, DOOR
33	BOTTOM, OVEN
34	SWITCH, DOOR
35	KIT, BARE WIRE ADAPTER BLOCK
36	RACK, LADDER
37	MAY W10563084
38	BAFFLE, FULL CONVECTION
39	BRACKET, SUPPORT
40	MAY W10346147
41	DUCT, COVER
42	DUCT, COOLING
43	MAY W10162259
44	MAY W10655485
45	MAY W10162241
46	MAY W10162248
47	MAY W10289172
48	RECEIVER, SLOW CLOSE HINGE
49	MAY W10554008
50	RACK, MAXIMUM CAPACITY
51	RACK, HEAVY DUTY
52	CORD, POWER
53	MAY W10603623
