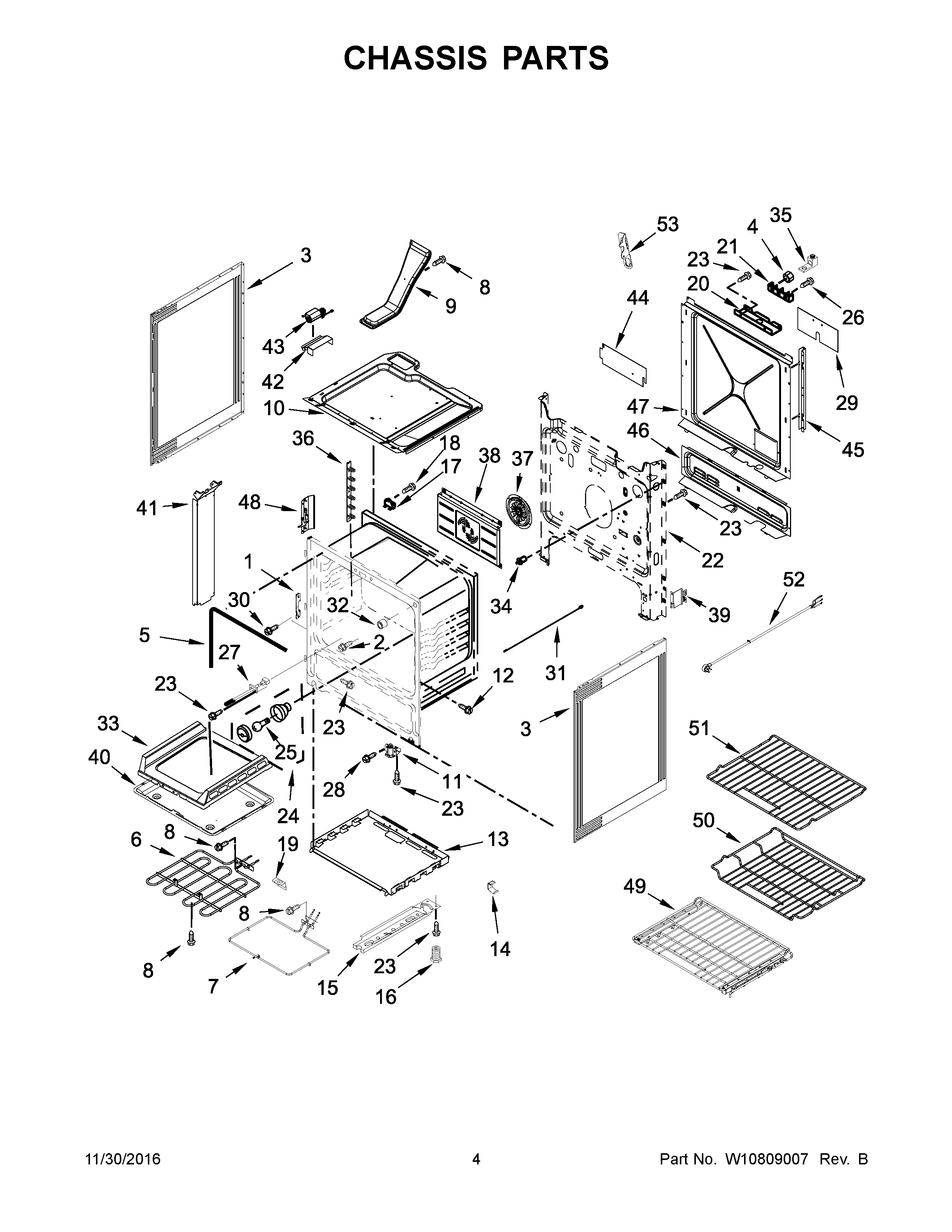

JES1750EB0 03 – CHASSIS PARTSadmin2025-04-26T09:21:18+00:00JES1750EB0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | WP7103P027-60 Whirlpool Nut |
| NI | STRAP, INSULATION |
| NI | MAY 7111P017-60 |
| NI | INSULATION, BACK |
| NI | INSULATION, WRAP |
| NI | INSULATION, BOTTOM |
| 1 | HINGE, RECEIVER |
| 2 | SCREW |
| 3 | PANEL, SIDE (BLACK) |
| 4 | NUT |
| 5 | MAY W10162385 |
| 6 | ELEMENT, BROIL |
| 7 | ELEMENT, BAKE |
| 8 | MAY W10362924 |
| 9 | ASSEMBLY, FLUE |
| 10 | BOX, BURNER SI |
| 11 | ASSEMBLY, FRONT FOOT |
| 12 | SCREW |
| 13 | SHIELD, BAKE |
| 14 | CLIP, PANEL |
| 15 | ASSEMBLY, BASE RAIL (LEFT) |
| 15A | ASSEMBLY, BASE RAIL (RIGHT) |
| 16 | FOOT, LEVELING |
| 17 | FUSE, THERMAL |
| 18 | SCREW |
| 19 | MAY W10035900 |
| 20 | BRACKET, SERVICE |
| 21 | BLOCK, TERMINAL |
| 22 | MAIN, BACK DOWNDRAFT (NOT SERVICED) |
| 23 | SCREW |
| 24 | ASSEMBLY, LIGHT |
| 25 | BULB, OVEN LIGHT |
| 26 | SCREW |
| 27 | MAY W10586204 |
| 28 | SCREW |
| 29 | MAY W10655441 |
| 30 | MAY W10031780 |
| 31 | ROD, REAR DOOR |
| 32 | SPACER, DOOR |
| 33 | BOTTOM, OVEN |
| 34 | SWITCH, DOOR |
| 35 | KIT, BARE WIRE ADAPTER BLOCK |
| 36 | RACK, LADDER |
| 37 | MAY W10563084 |
| 38 | BAFFLE, FULL CONVECTION |
| 39 | BRACKET, SUPPORT |
| 40 | MAY W10346147 |
| 41 | DUCT, COVER |
| 42 | DUCT, COOLING |
| 43 | ASSEMBLY, COOLING FAN |
| 44 | SHIELD, WIRE |
| 45 | MAY W10162241 |
| 46 | MAY W10162248 |
| 47 | MAY W10289172 |
| 48 | RECEIVER, SLOW CLOSE HINGE |
| 49 | MAY W10554008 |
| 50 | RACK, MAXIMUM CAPACITY |
| 51 | RACK, HEAVY DUTY |
| 52 | CORD, POWER |
| 53A | BRACKET, PANEL (RIGHT) |
| 53 | BRACKET, PANEL (LEFT) |
