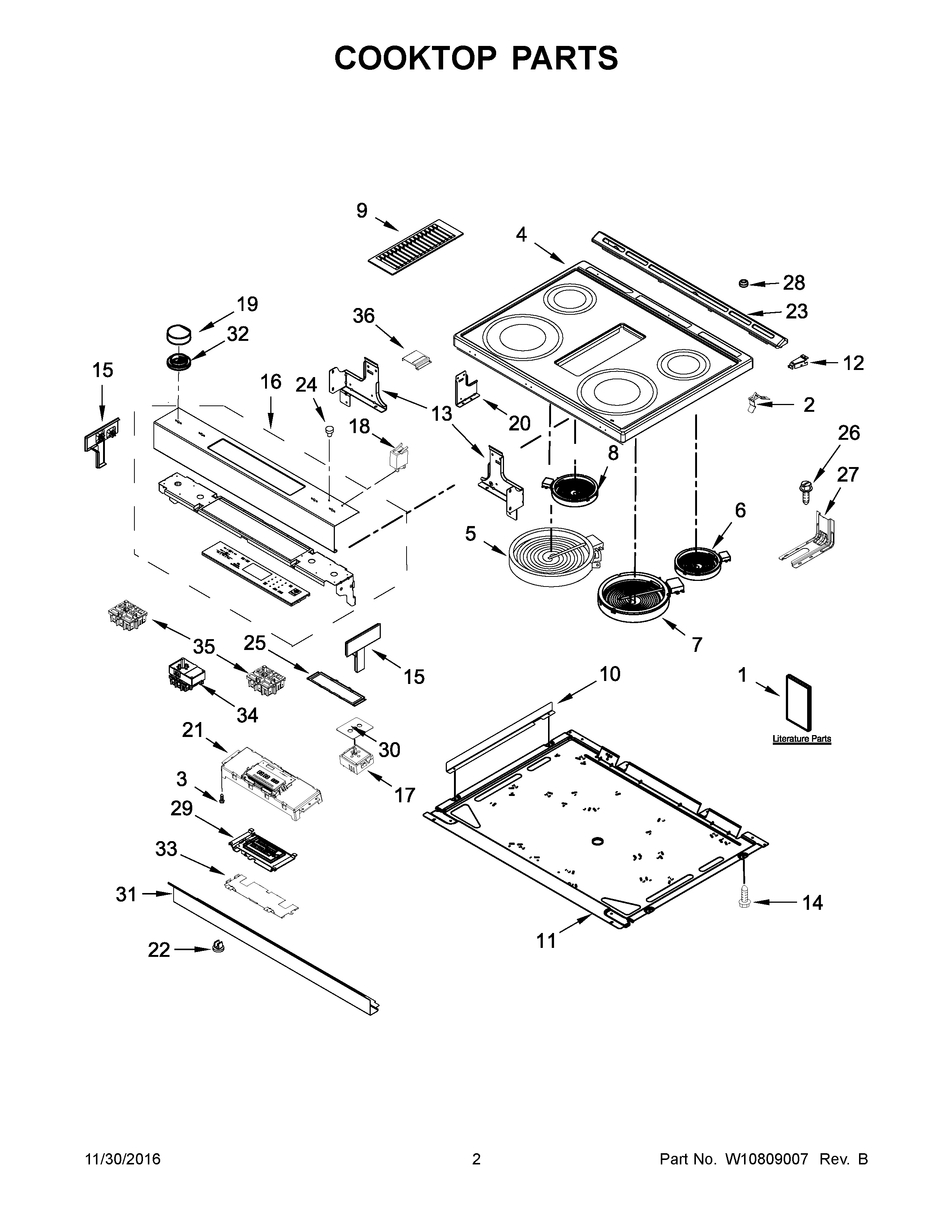

JES1750ES0 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10664316
NI	MAY W10580264
NI	MAY W10580253
NI	MAY W10813885
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10598170
NI	MAY W10575120
1B	SHEET, TECH
1E	MAY W10400064
1C	TIPS, SAFE COOKING (ENGLISH)
1A	MAY W10750371
1G	MAY W10750124
1D	TIPS, SAFE COOKING (FRENCH)
1F	MAY W10400065
1H	MAY W10817089
1	MAY W10787365
2	SPRING, ELEMENT
3	SCREW
4A	MAY W10536331
4	MAY W10536330
5	ELEMENT (3000/1400W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1300W) (LEFT REAR)
9	MAY W10575593
10	MAY W10613286
11	MAY W10561812
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
13	SUPPORT, COOKTOP (RIGHT)
14	SCREW
15C	ENDCAP (STAINLESS (RIGHT))
15A	ENDCAP (STAINLESS (LEFT))
15	ENDCAP (BLACK (LEFT))
15B	ENDCAP (BLACK (RIGHT))
16	MAY W10676651
16A	MAY W10676652
17	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
18	MAY 8523265
19A	KNOB (STAINLESS)
19	KNOB (BLACK)
20	BRACKET, CONSOLE (CE
21	MAY W10453974
22	GROMMET
23A	VENT, TRIM TOP (STAINLESS)
23	MAY W10636528
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	MAY W10603097
30	GASKET, INFINITE SWITCH
31	MAY W10743280
31A	MAY W10743281
32	MAY W10663811
32A	MAY W10663810
33	BRACKET, CONTROL
34	SWITCH, INFINITE (DUAL) (LEFT FRONT)
35	SWITCH, INFINITE (RIGHT FRONT)
36	SHIELD, KEYPAD
