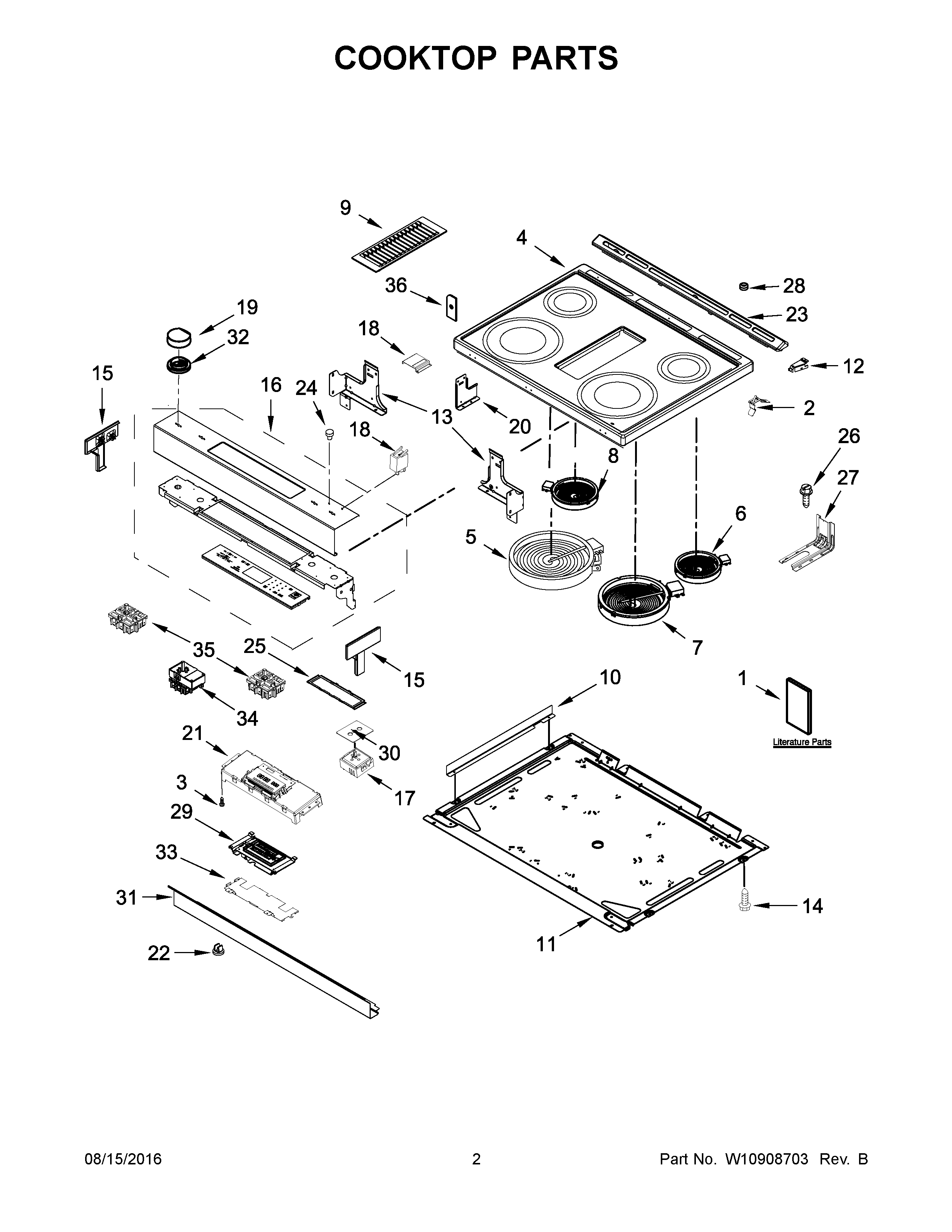

JES1750ES1 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10575120
NI	MAY W10580253
NI	MAY W10664316
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10598170
NI	MAY W10812964
NI	MAY W10813885
NI	MAY W10580264
1E	MAY W10400064
1H	MAY W10817089
1F	MAY W10400065
1B	SHEET, TECH
1	MAY W10787365
1A	MAY W10750371
1G	MAY W10750124
1D	TIPS, SAFE COOKING (FRENCH)
1C	TIPS, SAFE COOKING (ENGLISH)
2	SPRING, ELEMENT
3	SCREW
4	MAY W10536330
4A	MAY W10536331
5	ELEMENT (3000/1400W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1300W) (LEFT REAR)
9	MAY W10575593
10	MAY W10613286
11	MAY W10561812
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13	SUPPORT, COOKTOP (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
14	SCREW
15	ENDCAP (BLACK (LEFT))
15C	ENDCAP (STAINLESS (RIGHT))
15A	ENDCAP (STAINLESS (LEFT))
15B	ENDCAP (BLACK (RIGHT))
16A	MAY W10901073
16	CONSOLE (BLACK)
17	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
18	SHIELD, KEYPAD
19	KNOB (BLACK)
19A	KNOB (STAINLESS)
20	BRACKET, CONSOLE (CE
21	MAY W10453974
22	GROMMET
23A	VENT, TRIM TOP (STAINLESS)
23	MAY W10636528
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	MAY W10603097
30	GASKET, INFINITE SWITCH
31	MAY W10743280
31A	MAY W10743281
32	MAY W10663811
32A	MAY W10663810
33	BRACKET, CONTROL
34	SWITCH, INFINITE (DUAL) (LEFT FRONT)
35	SWITCH, INFINITE (RIGHT FRONT)
36	MAY W10882900
