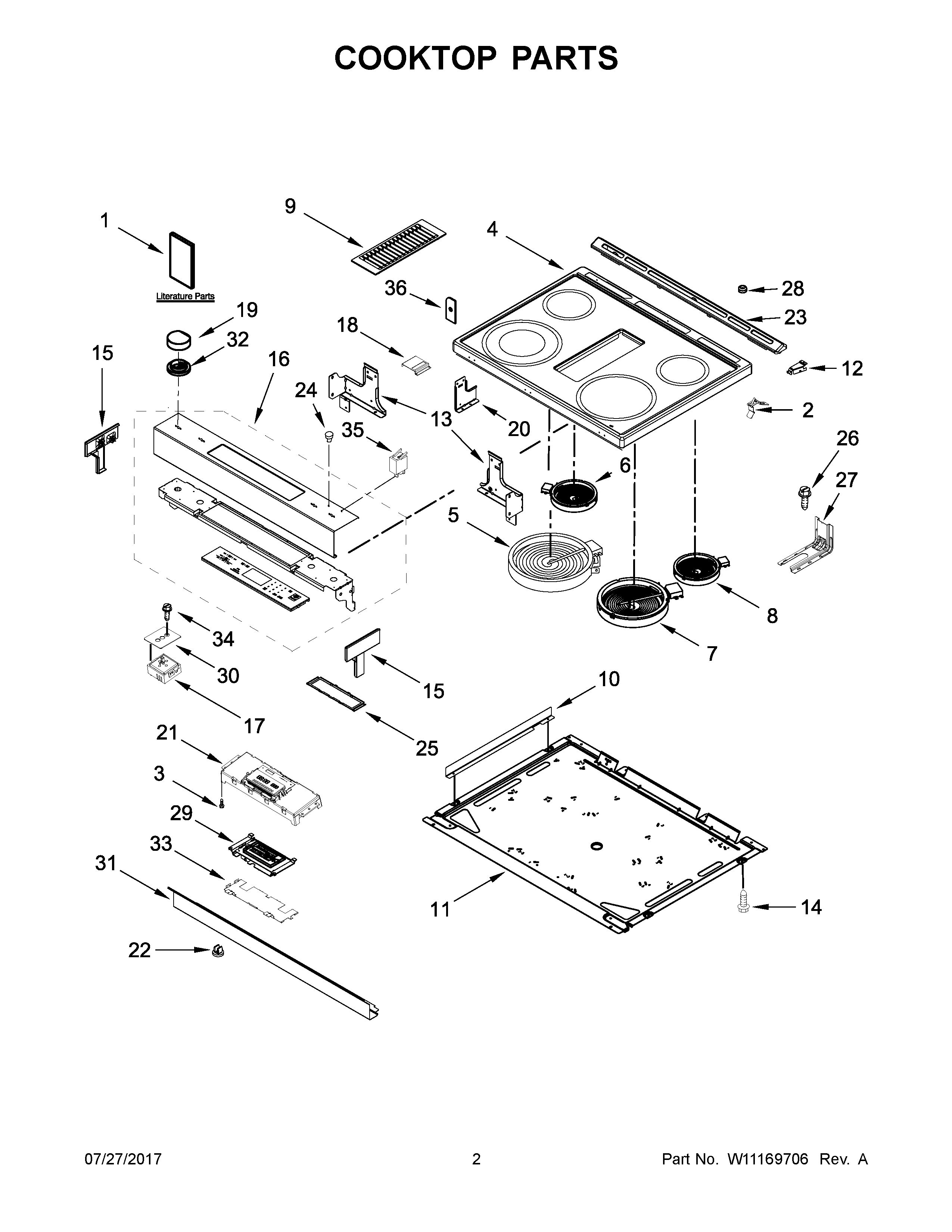

JES1750FB0 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10580253
NI	MAY W10664316
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10580264
NI	MAY W10812964
NI	MAY W10598170
NI	MAY W10653092
NI	MAY W10813885
NI	MAY W10575120
1D	MAY W10400065
1A	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10787365
1E	MAY W10817089
1B	TIPS, SAFE COOKING (FRENCH)
1C	MAY W10400064
2	SPRING, ELEMENT
3	SCREW
4	MAY W10536330
5	ELEMENT (3000/1400W) (LEFT FRONT)
6	ELEMENT (1300W) (LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
9	MAY W10575593
10	MAY W10613286
11	MAY W10561812
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13	SUPPORT, COOKTOP (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
14	SCREW
15	ENDCAP (BLACK (LEFT))
15A	ENDCAP (BLACK (RIGHT))
16	CONSOLE (BLACK)
17B	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17A	SWITCH, INFINITE (RIGHT FRONT)
17	SWITCH, INFINITE (DUAL) (LEFT FRONT)
18	SHIELD, KEYPAD
19	KNOB (BLACK)
20	BRACKET, CONSOLE (CE
21	CONTROL, MRC2
22	GROMMET
23	MAY W10636528
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	DISPLAY, ASSEMBLY
30	GASKET, INFINITE SWITCH
31	MAY W10743280
32	MAY W10663811
33	BRACKET, CONTROL
34	MAY W10498399
35	MAY 8523265
36	MAY W10882900
