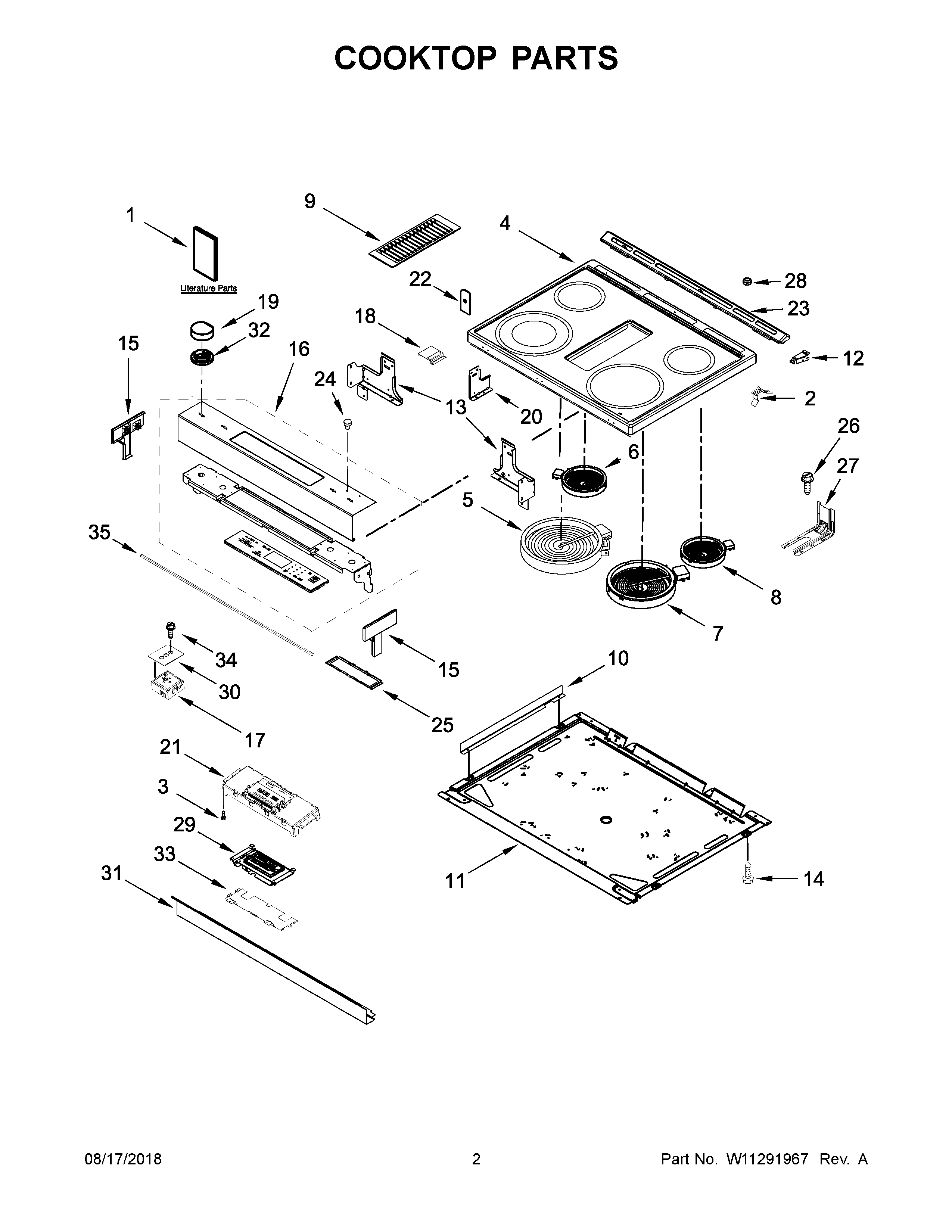

JES1750FB1 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10575120
NI	MAY W11172426
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11198274
NI	MAY W10653092
NI	MAY W10664316
NI	MAY W11190470
NI	MAY W11171878
NI	MAY W11172418
1E	MAY W10400065
1D	MAY W10400064
1B	SHEET, TECH
1A	USE AND CARE GUIDE
1	MAY W10787365
1F	MAY W10817089
1C	DIAGRAM, WIRING
2	SPRING, ELEMENT
3	SCREW
4	MAY W10536330
5	ELEMENT (3000/1400W) (LEFT FRONT)
6	ELEMENT (1300W) (LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
9	MAY W10575593
10	MAY W10613286
11	MAY W10561812
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13	SUPPORT, COOKTOP (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
14	SCREW
15	ENDCAP (BLACK (LEFT))
15A	ENDCAP (BLACK (RIGHT))
16	CONSOLE (BLACK)
17A	SWITCH, INFINITE (RIGHT FRONT)
17B	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17	SWITCH, INFINITE (DUAL) (LEFT FRONT)
18	SHIELD, KEYPAD
19	KNOB (BLACK)
20	BRACKET, CONSOLE (CE
21	CONTROL, MRC2
22	MAY W10882900
23	MAY W10636528
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	DISPLAY, ASSEMBLY
30	GASKET, INFINITE SWITCH
31	MAY W10743280
32	MAY W10663811
33	BRACKET, CONTROL
34	MAY W10498399
35	GASKET, CONSOLE/COOKTOP
