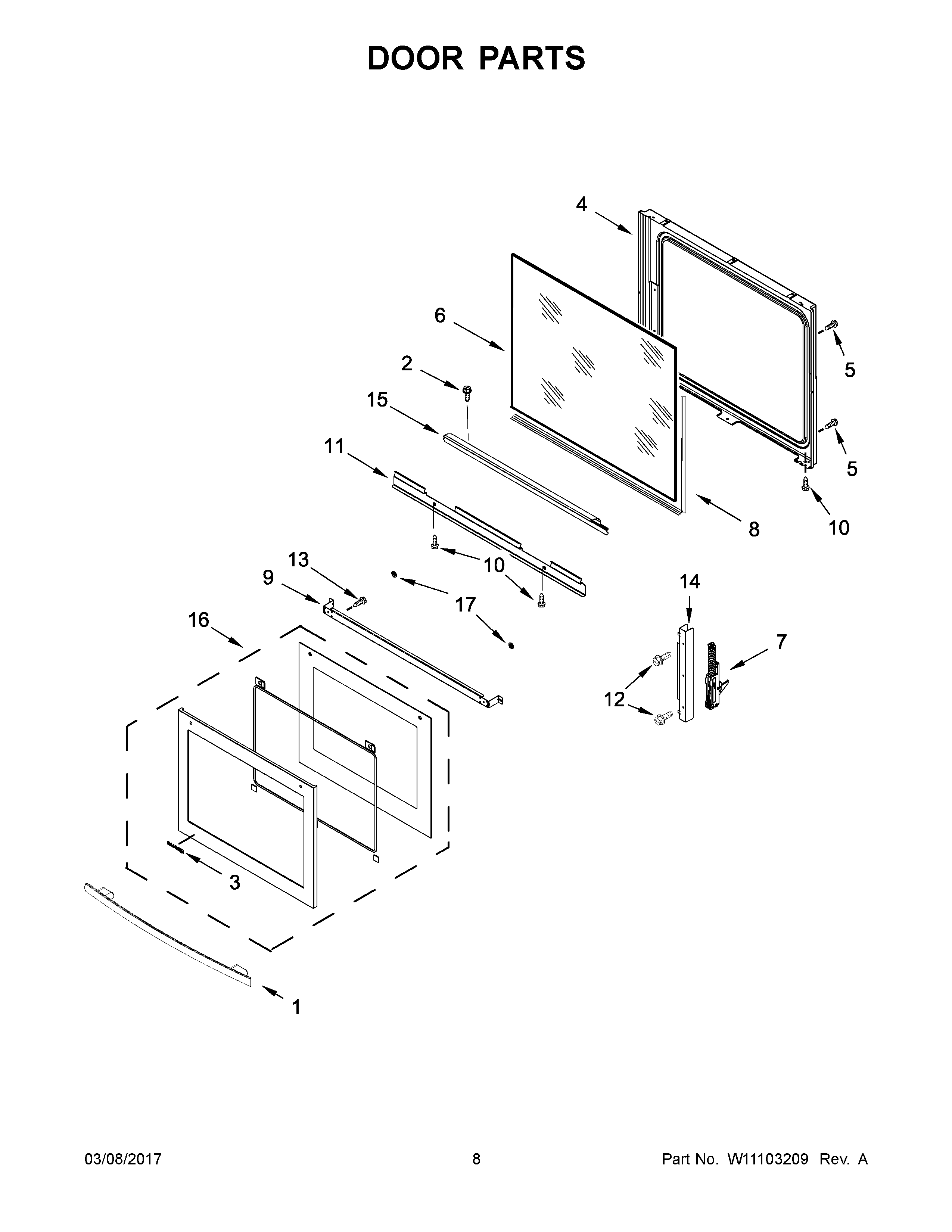

JES1750FS0 05 – DOOR PARTS

Written by

Products

Position	Product
1	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	SCREW
3	ASSEMBLY, BADGE (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	HINGE, SLOW CLOSE
8	SPACER, GLASS
9	BRACKET, GLASS UPPER HANDLE
10	SCREW
11	RAIL, HORIZONTAL SUPPORT
12	MAY W10031780
13	SCREW
14	RAIL, VERTICAL SUPPORT
15	SCOOP, DOOR (STAINLESS)
16	DOOR, COMPLETE (STAINLESS)
17	WASHER, DOOR
