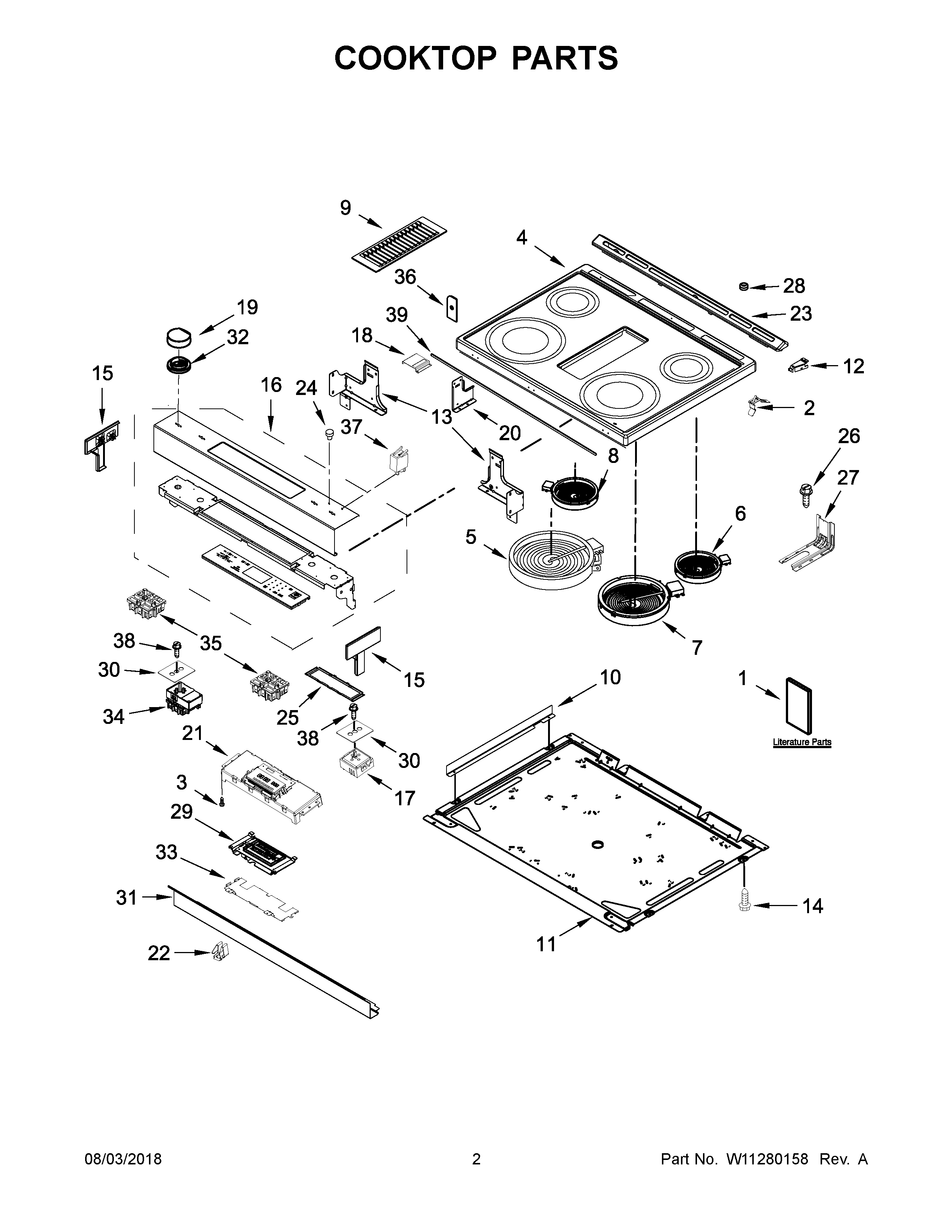

JES1750FS1 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10664316
NI	MAY W11171878
NI	MAY W11198274
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11172418
NI	MAY W11190470
NI	MAY W10575120
NI	MAY W11172426
1	MAY W10787365
1C	TIPS, SAFE COOKING (ENGLISH)
1E	MAY W10400064
1F	MAY W10400065
1B	SHEET, TECH
1H	MAY W10817089
1D	TIPS, SAFE COOKING (FRENCH)
1A	USE AND CARE GUIDE
1G	DIAGRAM, WIRING
2	SPRING, ELEMENT
3	SCREW
4	MAY W10536331
5	ELEMENT (3000/1400W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT (1300W) (LEFT REAR)
9	MAY W10575593
10	BRACKET, RADIANT
11	MAY W10561812
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13	SUPPORT, COOKTOP (RIGHT)
13A	SUPPORT, COOKTOP (LEFT)
14	SCREW
15	ENDCAP (STAINLESS (LEFT))
15A	ENDCAP (STAINLESS (RIGHT))
16	MAY W10901073
17	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
18	SHIELD, KEYPAD
19	KNOB (STAINLESS)
20	BRACKET, CONSOLE (CE
21	CONTROL, MRC2
22	MAY W10866583
23	VENT, TRIM TOP (STAINLESS)
24	MAY 3196068
25	BRACKET, CONTROL
26	SCREW, ANTI-TIP KIT
27	BRACKET, ANTI-TIP
28	BUMPER
29	DISPLAY, ASSEMBLY
30	GASKET, INFINITE SWITCH
31	MAY W10743281
32	MAY W10663810
33	BRACKET, CONTROL
34	SWITCH, INFINITE (DUAL) (LEFT FRONT)
35	SWITCH, INFINITE (RIGHT FRONT)
36	MAY W10882900
37	MAY 8523265
38	MAY W10498399
39	GASKET, CONSOLE/COOKTOP
