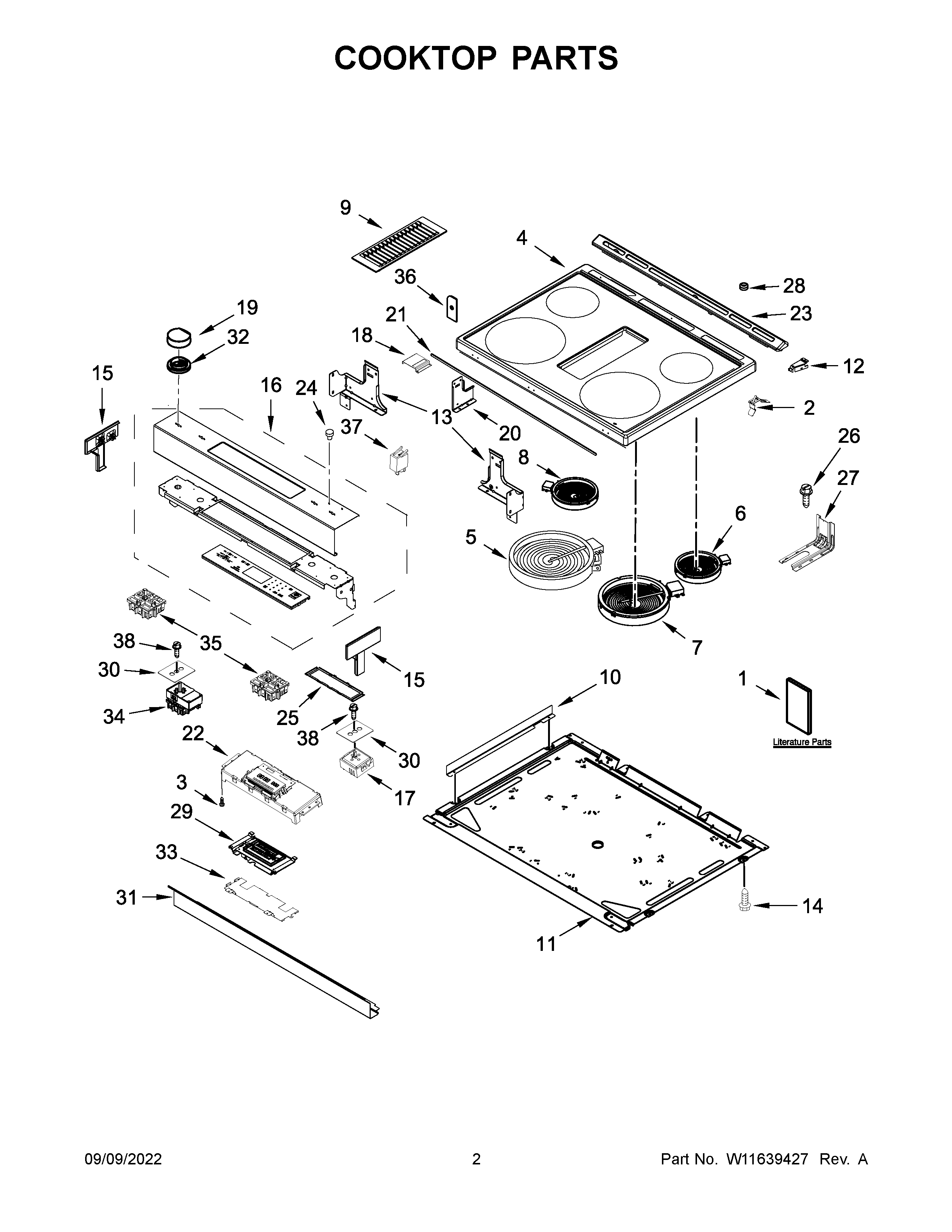

JES1750ML0 02 – COOKTOP PARTS

JES1750ML0 02 – COOKTOP PARTS

Written by

in

JES1750ML0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11025616 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11175842 Whirlpool Suppressor
NI	W10664316 Whirlpool Clip
NI	W11226772 Whirlpool Wire Harness
NI	W11171878 Whirlpool Wire Harness
NI	W11172418 Whirlpool Wire Harness
NI	W11198274 Whirlpool Wire Assembly
NI	W11451596 Whirlpool Wire Harness
1	DIMENSION GUIDE
1B	TECH SHEET
1C	QUICK START GUIDE
1A	OWNERS MANUAL
1D	CONTROL GUIDE
1E	W11643128 Whirlpool Template
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10818724 Whirlpool Cooktop Assembly
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11211500 Whirlpool Grille Assembly
10	BRACKET, RADIANT
11	PAN, RADIANT
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10557754 Whirlpool Endcap Panel
15	W10557751 Whirlpool Panel End Cap
16	W11647012 Whirlpool Control Panel
17	W10911303 Whirlpool Infinite Switch
18	SHIELD, KEYPAD
19	W11233555 Whirlpool Knob
20	W10598048 Whirlpool Support Bracket
21	W10802441 Whirlpool Gasket
22	W11647022 Whirlpool Electronic Control Board + Core
23	W11170796 Whirlpool Vent Trim
24	WP3196068 Whirlpool Light Lens
25	W10557780 Whirlpool Bracket Mounting
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	W11108634 Whirlpool Display
30	GASKET, SWITCH
31	W10743281 Whirlpool Mounting Bracket
32	W11647014 Whirlpool Knob Bezel
33	W10558372 Whirlpool Bracket Mounting
34	SWITCH-INF
35	W10917724 Whirlpool Infinite Switch
36	W10882900 Whirlpool Gasket
37	WP8523265 Whirlpool Indicator Light
38	7101P676-60 Whirlpool Screw
